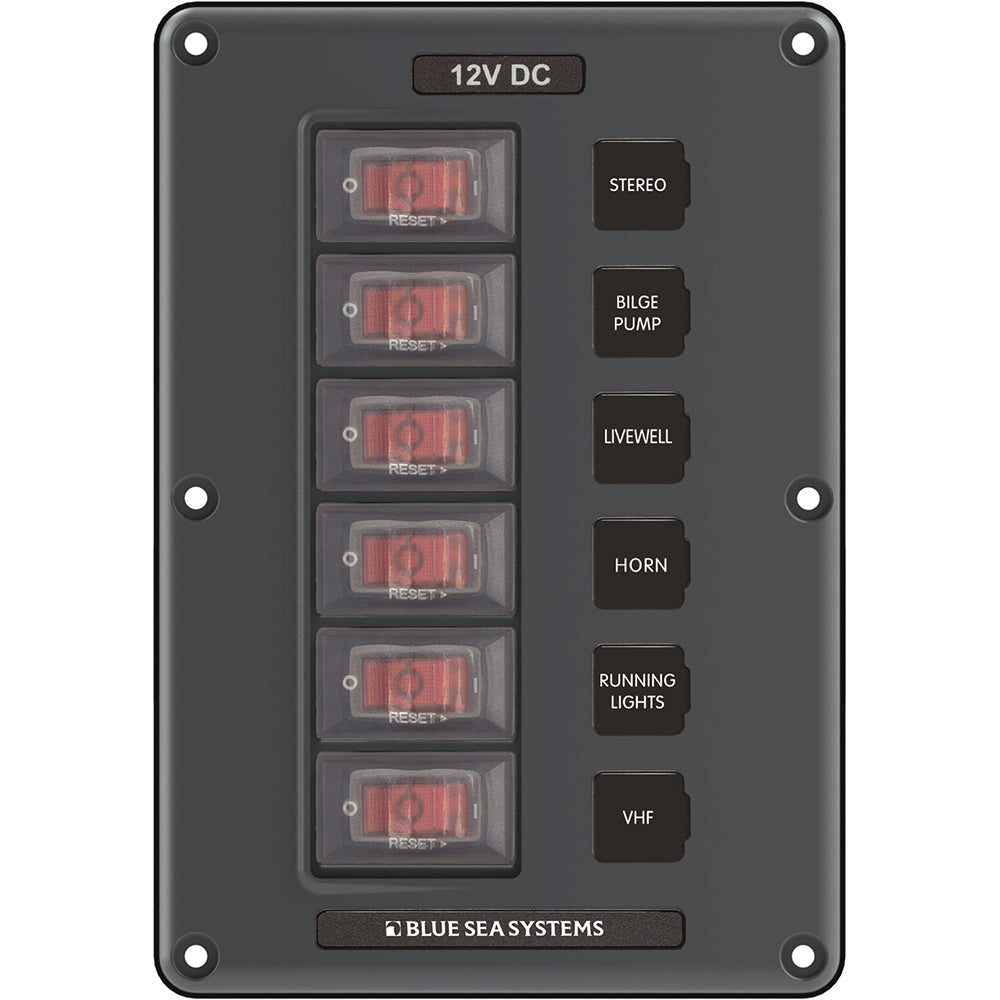

Blue Sea 4322 Circuit Breaker Switch Panel 6 Position - Gray [4322]

The Blue Sea 4322 Circuit Breaker Switch Panel in gray is a top - notch choice for exposed mounting applications. Here are its amazing features:

• 15A illuminated circuit breakers offer switching, 'ON' indication, and overcurrent protection.
• With industry - standard sizes and mounting, it can be easily retrofitted into existing setups.
• The polycarbonate/ABS panel surface is UV - stabilized, flame - retardant, and corrosion - free.
• Silicon breaker boots and gaskets keep water out.
• Its low profile allows for easy installation in tight spaces.
• Fast - on circuit breaker connectors make wiring a breeze.
• Powering all panels with a two - wire connection is simple and only requires #10 ring terminals that screw securely to bus bars.
• Comes with 15 square - format circuit labels that are easy to replace, and more standard or custom labels are available from Blue Sea Systems.

Specifications:

• Color: Gray
• Positions: 6
• Nominal Voltage: 12 VDC
• Maximum Amperage: 45A
• Terminal Type: 1/4' Male Quick Connect
• Hardware: Stainless Steel #6 x 5/8' mounting screws
• Ring Terminal Size: M5 (#10)

• Voltage: 12v
• AC/DC: DC
• Max Breaker Quantity: 6
• Waterproof: Resistant
• Box Dimensions: 1'H x 6'W x 10'L WT: 0.6 lbs
• UPC: 632085043223

Using the Blue Sea 4322 Circuit Breaker Switch Panel is straightforward. First, choose a suitable exposed location for mounting. Since it has a low profile, it can fit well in tight spaces. Use the stainless - steel mounting screws provided to secure it. When wiring, connect the circuit breakers using the fast - on connectors, and for powering all panels, use the two - wire connection with #10 ring terminals and screw them to the bus bars. The illuminated circuit breakers will show you when they are 'ON' and protect against overcurrent. As for maintenance, keep the panel clean and dry. The silicon breaker boots and gaskets protect it from water ingress, but avoid exposing it to excessive moisture. If you need to change the circuit labels, it's easy as they are simple to replace. And you can get additional standard or custom labels from Blue Sea Systems if needed. Also, make sure the voltage and amperage requirements match the panel's specifications to ensure safe and proper operation.
