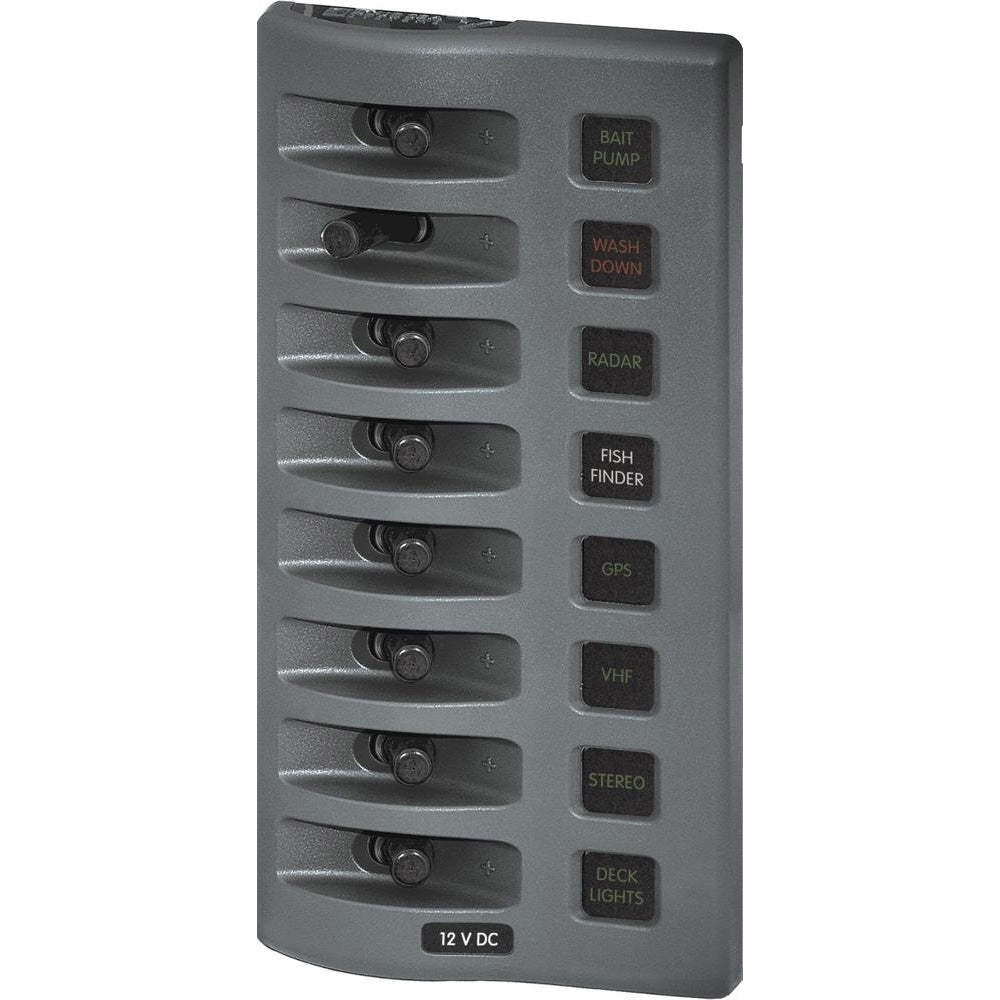

Blue Sea 4308 WeatherDeck Water Resistant Fuse Panel - 8 Position - Grey [4308]

The WeatherDeck™ Water Resistant Fuse Panel (PN: 4308) in gray is a top - notch choice for marine use. It's ideal for flybridge and open cockpit applications.

Features:

• When mounted with a watertight gasket, the panel front has an IP67 rating, protected against immersion up to 1 meter for 30 minutes.
• It has an independent label back - lighting circuit for easy remote switching and dimming.
• You can mount each panel in four different ways.
• Comes with integrated ATO/ATC fuse - based circuit protection.
• Bicolored LEDs on circuit labels quickly show if a circuit is OFF (Red), ON (Green), or Blown (No Color). No lights likely mean no power to the panel.

Specifications:

• Weatherproof and waterproof.
• 8 positions.
• 12v DC nominal voltage.
• Fuse - based circuit protection.
• 15A maximum amperage per circuit at 12v DC, with a 100A panel cumulative rating.
• Bicolored LED backlit labels with 10mA/illuminated circuit and 12v DC backlighting voltage.
• 7.7' height, 3.88' width, and 2.5' depth.

Included:

• (8) 4138 WeatherDeck® Toggle Switch Boot - Black
• (8) 4150 WeatherDeck® Toggle Switch SPST - ON - OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (8) 5242 ATO/ATC Fuse - 15 Amp

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

More Specifications:

• Waterproof.
• DC power.
• Max 8 breakers.
• 12v voltage.
• Box dimensions: 5'H x 6'W x 10'L, 1.5 lbs weight.
• UPC: 632085043087

Quick Guide (pdf)

Using this WeatherDeck fuse panel is quite straightforward. First, make sure to mount it properly with the watertight mounting gasket to ensure its IP67 rating. This will protect it from water damage even when immersed up to 1 meter for 30 minutes. When it comes to power, connect it to a 12v DC power source. The bicolored LEDs on the circuit labels are really handy - they let you quickly tell if a circuit is off, on, or blown. If you don't see any lights, check if there's power going to the panel. You can mount the panel in four different orientations, so choose the one that works best for your setup. For maintenance, keep an eye on the fuses. If a circuit blows, replace the 15 - amp ATO/ATC fuse. Remember, this product contains chemicals that can be harmful, so always follow the safety warnings. The included toggle switches and labels will help you organize your circuits easily. Just install the switches and use the waterproof labels to mark your circuits. If you have any issues, refer to the quick guide (pdf) for more detailed instructions.
