Blue Sea 3117 - SMS Panel Enclosure w/2 ELCI (30A) - 120V AC [3117]

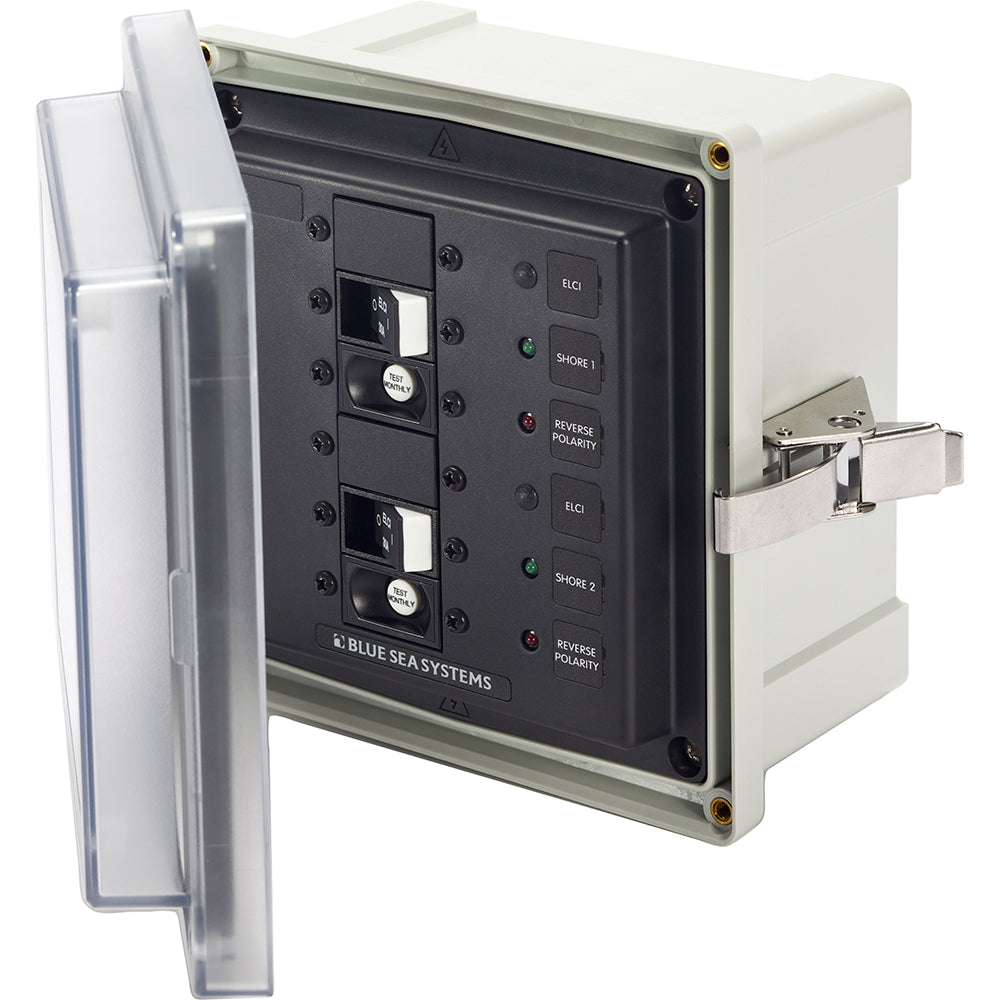

3117 - 120V AC SMS Panel Enclosure with Two 30A ELCI

The 3117 panel enclosure is designed for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large - frame devices. It meets ABYC E - 11 when paired with an ELCI Main circuit breaker and installed within 10 feet of the AC shore power inlet.

Key Features:

• Customizable breaker loading with blank apertures
• Durable glass - filled polycarbonate base
• Clear cover for easy view of circuit breaker status
• Strong overlapping cover with enhanced gasket protection
• Large, seamless PUR gasket
• Removable stainless - steel hinge pin for hassle - free installation
• Stainless - steel latch that secures the cover without penetrating the enclosure
• Blank circuit positions for Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Comes with waterproof glands
• LED lights for backlighting and ON indication

Technical Details:

• Circuit Breaker Type: Two 30A ELCI Main 120V
• Overall Dimensions (H x W x D): 7.6 inches x 7.4 inches x 4.7 inches (192 x 188 x 120mm)
• Enclosure Dimensions (H x W x D): 6 inches x 6 inches x 4 inches (152 x 152 x 102mm)
• Installed LEDs: Two red (Reverse Polarity - 120V AC) and two green ON (120V AC)

What's in the Box:

• 3117 Enclosure
• Six glands
• Labels
• Mounting hardware
• Instruction manual

*Sold individually

WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Voltage: 120
• Box Dimensions: 7 inches H x 10 inches W x 10 inches L, Weight: 4.4 lbs
• UPC: 632085031176

Quick Guide (pdf)
Brochure (pdf)

Using the Blue Sea 3117 SMS Panel Enclosure is easy. First, make sure to install it within 10 feet of the AC shore power inlet and pair it with an ELCI Main circuit breaker to meet ABYC E - 11 standards. When loading breakers, use the blank apertures for a customized setup. The clear cover allows you to quickly check the circuit breaker status at any time. For installation, remove the stainless - steel hinge pin for unobstructed access. Then, secure the cover with the stainless - steel latch without having to penetrate the enclosure. The waterproof glands provided help protect your equipment from water damage. Regarding maintenance, keep the enclosure clean and check the gasket regularly for any signs of wear. Replace the gasket if it shows damage to maintain proper protection. Also, ensure that the LED lights are functioning correctly as they indicate the power status. Remember, this product contains chemicals that can be harmful. Avoid direct contact with the chemicals and follow the safety warnings provided. If you have any questions, refer to the instruction manual in the box.
