Blue Sea 3118 - SMS Panel Enclosure w/ELCI (50A) and 2 Blanks - 120V AC [3118]

3118 - SMS Panel Enclosure with ELCI (50A) and 2 Blanks - 120V AC

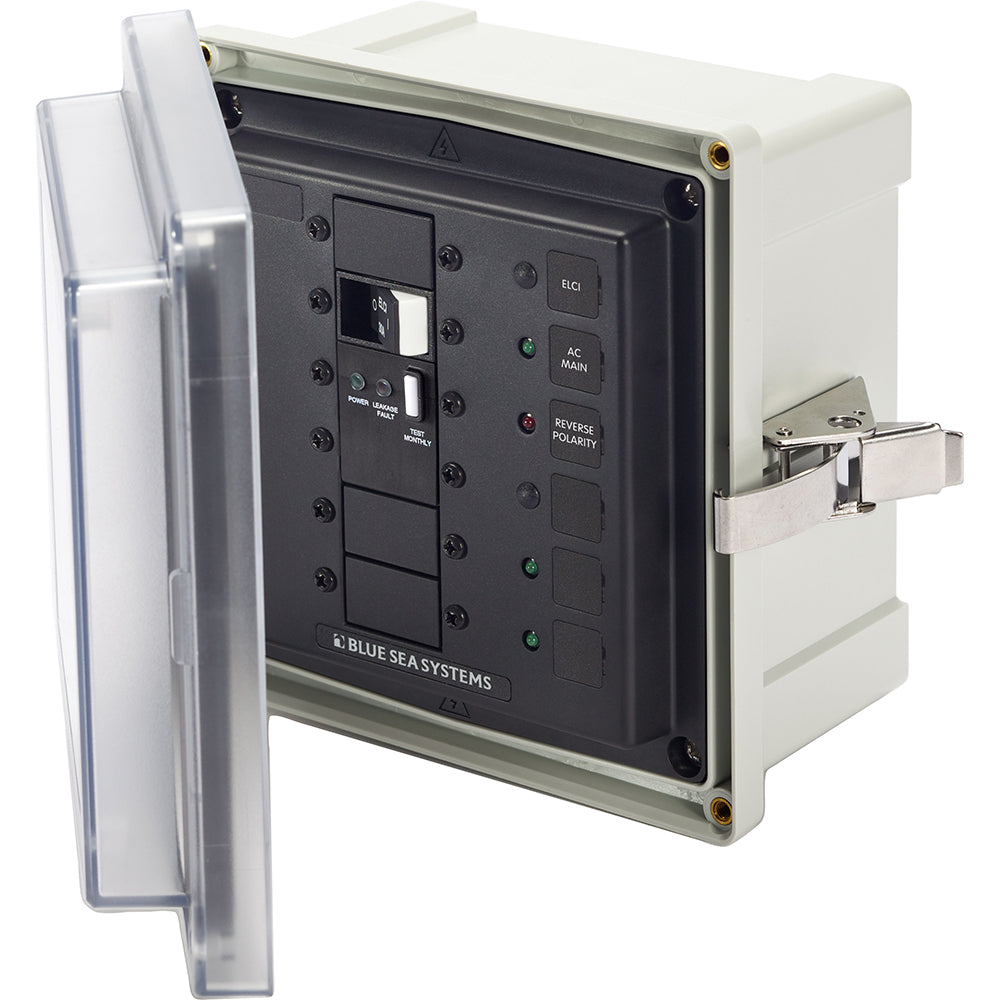

The 3118 panel enclosure is designed for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large - frame devices. It meets ABYC E - 11 when paired with an ELCI Main circuit breaker and installed within 10 feet of the AC shore power inlet.

Key Features:

• Customizable breaker loading with blank apertures
• Durable glass - filled polycarbonate base
• Clear cover for easy circuit breaker status check
• Strong overlapping cover with enhanced gasket protection
• Large, seamless PUR gasket formed in place
• Removable stainless - steel hinge pin for hassle - free installation
• Stainless - steel latch that secures the cover without piercing the enclosure
• Blank circuit positions fit Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Comes with waterproof glands
• LED lights for backlighting and ON indication

Technical Specs:

• Circuit Breaker: 1 x 50A 120V ELCI Main and 2 x Blanks
• Overall Dimensions (H x W x D): 7.6 inches x 7.4 inches x 4.7 inches (192 x 188 x 120mm)
• Enclosure Dimensions (H x W x D): 6 inches x 6 inches x 4 inches (152 x 152 x 102mm)
• LEDs: 1 x Red (Reverse Polarity - 120V AC) and 3 x Green ON (120V AC)

What's in the Box:

• 3118 Enclosure
• 5 Glands
• Labels
• Mounting hardware
• Instruction manual

*Sold individually

WARNING: This product exposes you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects, or other reproductive harm. For more info, go to P65Warnings.ca.gov.

Quick Guide (pdf)
Brochure (pdf)

Using the Blue Sea 3118 panel enclosure is straightforward. First, make sure to install it within 10 feet of the AC shore power inlet and pair it with an ELCI Main circuit breaker to meet ABYC E - 11 standards. You can customize the breaker loading using the blank apertures according to your needs. The clear cover lets you easily check the status of the circuit breakers. When installing, remove the stainless - steel hinge pin for unobstructed access. The stainless - steel latch secures the cover without damaging the enclosure. As for maintenance, keep the enclosure clean and dry. Check the LED lights regularly to ensure they are functioning properly. The waterproof glands should also be inspected for any signs of wear or damage. Be aware that this product contains chemicals that can be harmful, so always follow the safety warnings on the label and refer to P65Warnings.ca.gov for more information.
