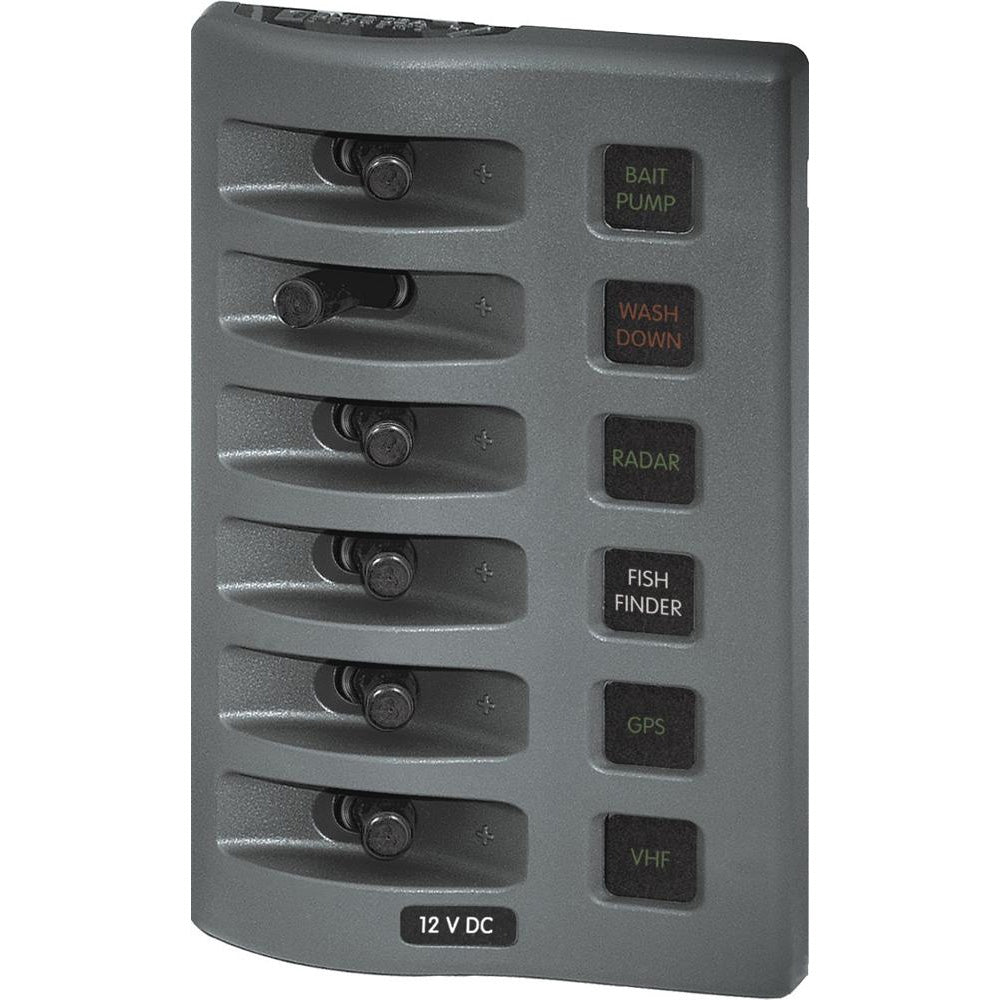

Blue Sea 4306 WeatherDeck Water Resistant Fuse Panel - 6 Position - Grey [4306]

The Blue Sea 4306 WeatherDeck Fuse Panel is a top - notch choice for flybridge and open cockpit applications. In a sleek grey color, it offers 6 positions of reliable circuit protection. When properly installed with a watertight mounting gasket, the panel front has an IP67 rating, meaning it can withstand immersion up to 1 meter for 30 minutes. It features an independent label back - lighting circuit for easy remote switching and dimming. You can mount each panel in four different ways. The integrated ATO/ATC fuse provides solid circuit protection. Bicolored LEDs on circuit labels quickly show if a circuit is OFF (Red), ON (Green), or Blown (No Color). If there are no lights, it likely means no power to the panel. Specifications include a 12v DC nominal voltage, 15A maximum amperage per circuit, and a 90A panel cumulative rating. The backlighting runs on 12v DC with an amperage of 10mA per illuminated circuit. It measures 6.0' in height, 3.88' in width, and 2.5' in depth. Included in the package are (6) 4138 WeatherDeck® Toggle Switch Boots in black, (6) 4150 WeatherDeck® Toggle Switch SPST - ON - OFF, (1) 4215 Waterproof DC Label Kit with 30 black square labels V1, and (6) 5242 ATO/ATC Fuses of 15 Amp. Warning: This product may expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects, or other reproductive harm. For more info, visit P65Warnings.ca.gov. Other specs: Waterproof, 12v DC, max 6 breakers, box dimensions 5'H x 6'W x 9'L, weight 1.5 lbs, UPC 632085043063. Quick Guide (pdf).

Using the Blue Sea 4306 WeatherDeck Fuse Panel is easy. First, find a suitable location in your flybridge or open cockpit. Make sure to use the watertight mounting gasket when installing the panel to ensure its waterproof feature. Connect the power source with a 12v DC supply. Each of the 6 circuits can handle up to 15A. You can use the independent back - lighting circuit to switch and dim the labels remotely. Just check the bicolored LEDs on the circuit labels to know the status of each circuit. For maintenance, keep the panel dry. If it gets wet, dry it thoroughly. Periodically check the fuses to make sure they are in good condition. Replace any blown fuses with the 15 Amp ATO/ATC fuses provided in the package. Remember, this product contains chemicals that can be harmful, so handle it with care. If you have any concerns, refer to P65Warnings.ca.gov for more information.
