Blue Sea 4305 WeatherDeck 12V DC Waterproof Switch Panel - 4 Posistion [4305]

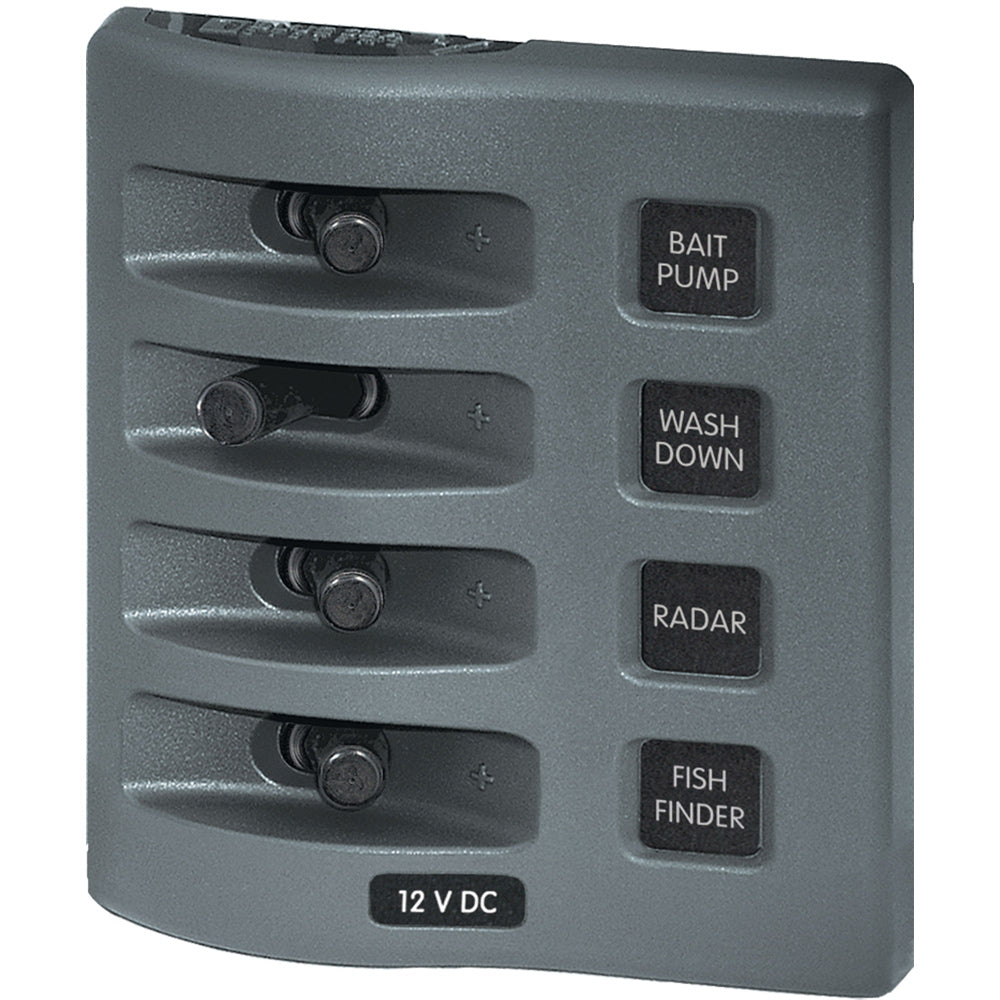

WeatherDeck® 12V DC 4-Position Waterproof Switch Panel

This switch panel offers excellent features. Integrated switch guards lower the risk of accidental switching. It can be mounted in four different ways. When properly installed with a watertight gasket, the panel front has an IP67 rating. The UV-stabilized, weather-resistant faceplate can be easily snapped on and off to access components and hide mounting screws.

Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 4.30'(109.22 mm)
Width: 3.88'(98.55 mm)
Depth: 2.50'(63.5 mm)
Weight: 0.90lb (0.41 kg)

WARNING: This product may expose you to chemicals like di(2-ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects, or other reproductive harm. For more info, go to P65Warnings.ca.gov.

Specifications:

• Waterproof: Waterproof
• AC/DC: DC
• Max Breaker Quantity: 4
• Voltage: 12/24v
• Box Dimensions: 4'H x 6'W x 7'L WT: 0.7 lbs
• UPC: 632085043056

Owner's Manual (pdf)

Using this Blue Sea 4305 switch panel is easy. First, decide on the best orientation for mounting it - there are four options to choose from. Make sure to use the watertight mounting gasket when installing to keep it waterproof. The faceplate can be easily removed to access the components inside. When using, the integrated switch guards will help prevent accidental switching. Just be careful, as this product can expose you to certain chemicals. For long - term use, keep it away from extreme heat or cold as it's made of reinforced polycarbonate. If you need to clean it, use a soft, damp cloth. Check the amperage regularly to make sure it doesn't exceed the maximum limit of 15A per circuit or the panel cumulative rating of 45A.
