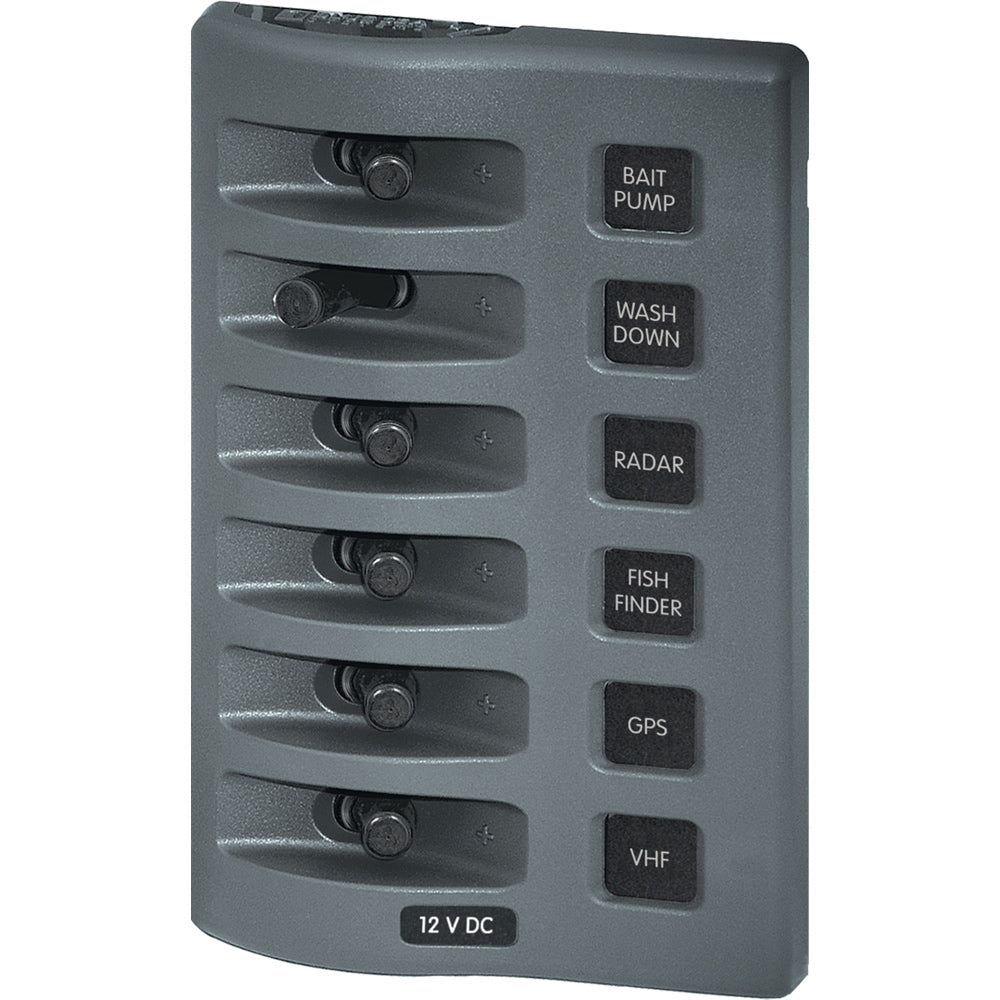

Blue Sea 4307 WeatherDeck 12V DC Waterproof Switch Panel - 6 Position [4307]

The WeatherDeck® 12V DC waterproof switch panel with 6 positions is a great choice. It features integrated switch guards to prevent accidental switching. You can mount the panels in four different ways. When properly installed with a watertight gasket, the panel front is rated IP67. The UV - stabilized weather - resistant faceplate can be easily snapped on and off to access components and hide mounting screws. It's fully waterproof. With a nominal voltage of 12V DC/24V DC, no circuit protection, a maximum amperage of 15A @ 12V DC per circuit, and a panel cumulative rating of 45A. Made of reinforced polycarbonate, it measures 6.00' (152.4 mm) in height, 3.88' (98.55 mm) in width, and 2.50' (63.5 mm) in depth, weighing 1.15lb (0.52 kg). Warning: This product may expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp) which can cause cancer, birth defects or other reproductive harm. Check P65Warnings.ca.gov for more info. Specifications include a voltage of 12/24v, DC power, a max breaker quantity of 6, waterproof design, box dimensions of 4'H x 6'W x 9'L and a weight of 0.9 lbs, and a UPC of 632085043070. An owner's manual (pdf) is available.

Using this switch panel is easy. First, choose the orientation you like as it can be mounted in four different ways. Make sure to use the watertight mounting gasket for proper installation to keep it waterproof. When operating, the integrated switch guards are there to stop any accidental switching. As for the faceplate, you can easily snap it on and off whenever you need to access the components inside. When it comes to maintenance, keep it clean and dry. Avoid exposing it to harsh chemicals. Since it's made of reinforced polycarbonate, it's quite durable but still handle it with care. Remember, this product can expose you to certain harmful chemicals, so always follow the safety warnings and check P65Warnings.ca.gov for more details.
