Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V [3120]

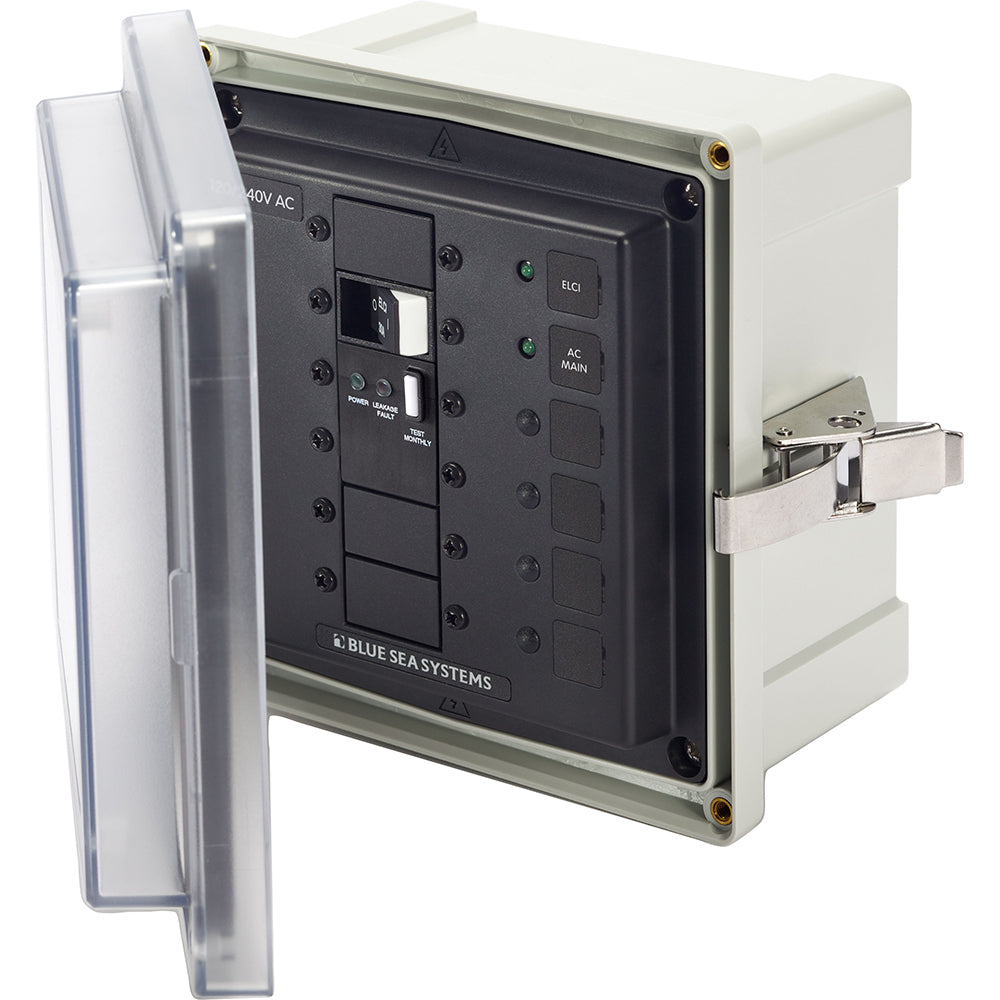

The Blue Sea 3120 SMS panel enclosure is a top - notch solution for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large - frame devices. It meets ABYC E - 11 when paired with an ELCI Main circuit breaker and installed within 10' of the AC shore power inlet. Features include blank apertures for custom breaker loading, a glass - filled polycarbonate base, and a clear cover for easy viewing of circuit breaker status. The overlapping cover offers strength and better gasket protection, and there's an oversized, seamless PUR gasket. A removable stainless - steel hinge pin makes installation a breeze, and a stainless - steel latch secures the cover without penetrating the enclosure. It can accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers and comes with waterproof glands and LEDs for backlighting and ON indication. Technical specs show it has 1 x ELCI (50A) Main 240V and 2 x Blank circuit breakers. Overall dimensions are 7.6' x 7.4'' x 4.7' (192 x 188 x 120mm), and the enclosure dimensions are 6' x 6' x 4' (152 x 152 x 102mm). It has 2 x Green ON (240V AC) LEDs. The package includes the 3120 enclosure, 5 glands, labels, mounting hardware, and an instruction manual. Sold individually. Warning: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp) which is known to cause cancer, birth defects or other reproductive harm in California. For more info, visit P65Warnings.ca.gov. Quick Guide (pdf), Brochure (pdf)

Using the Blue Sea 3120 SMS panel enclosure is quite straightforward. First, make sure to install it within 10 feet of the AC shore power inlet and pair it with an ELCI Main circuit breaker to meet ABYC E - 11 standards. You can customize the breaker loading using the blank apertures according to your needs. The clear cover lets you easily check the circuit breaker status, so keep an eye on it regularly. When installing, use the easily removable stainless - steel hinge pin for an unobstructed setup and secure the cover with the stainless - steel latch. As for maintenance, keep the enclosure clean and dry. Check the waterproof glands periodically to ensure they are in good condition. Also, be aware of the warning about the chemicals in the product. If you have any questions, refer to the instruction manual included in the box.
