Blue Sea 4304 WeatherDeck Water Resistant Fuse Panel - 4 Position - Grey [4304]

WeatherDeck™ Water Resistant Fuse Panel

PN: 4304

Color: Gray

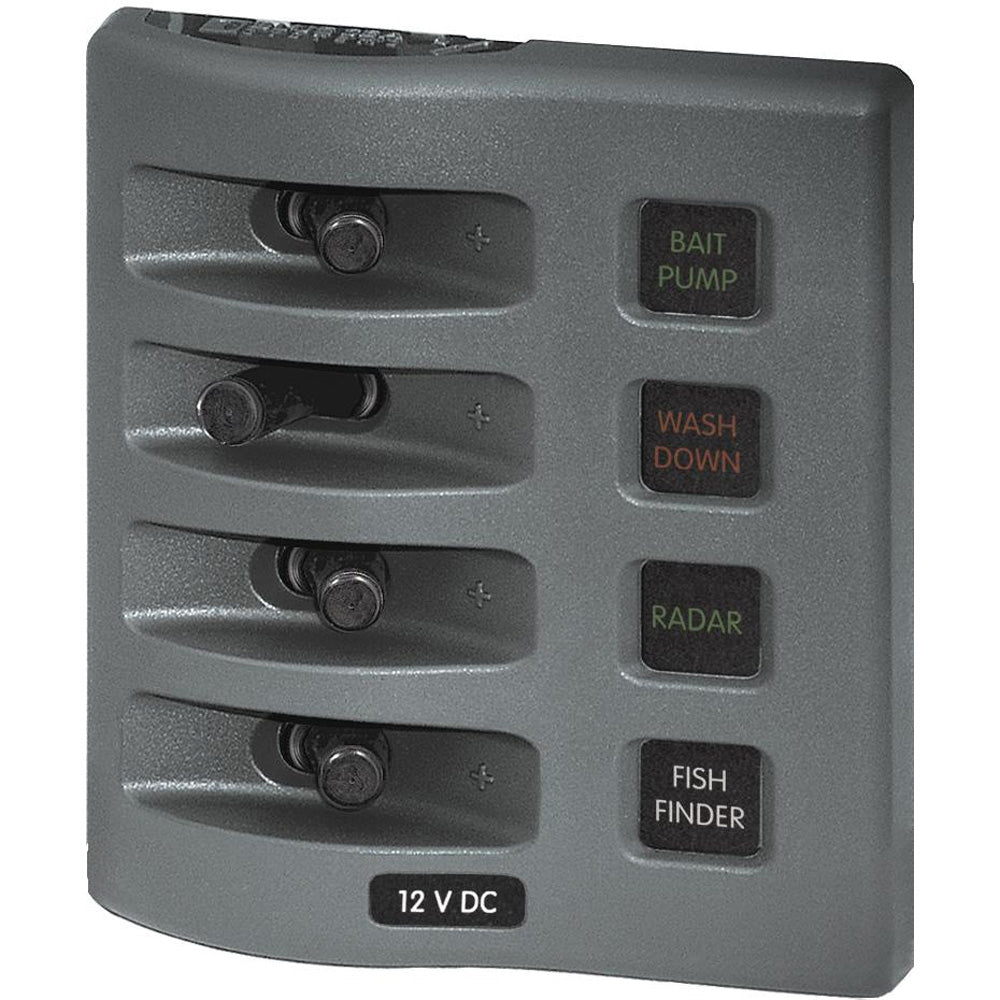

This WeatherDeck fuse panel is a great choice for flybridge and open cockpit applications. When properly mounted with a watertight gasket, the panel front is rated IP67, protected against immersion up to 1 meter for 30 minutes. It has an independent label back lighting circuit for remote switching and dimming. Each panel can be mounted in four different orientations. It features integrated ATO/ATC fuse based circuit protection. The bicolored LEDs on the circuit labels let you quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. If there are no lights in any position, it likely means there is no power to the panel.

Specifications:

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12v DC
• Circuit Protection: Fuse
• Maximum Amperage: 15A @ 12v DC (per circuit)
• Panel Cumulative Rating: 60A
• Backlit Label: Bicolored LED
• Backlighting Amperage: 10mA/illuminated Circuit
• Backlighting Voltage: 12v DC
• Height: 4.3'
• Width: 3.88'
• Depth: 2.5'

Included:

• (4) 4138 WeatherDeck® Toggle Switch Boot - Black
• (4) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• (4) 5242 ATO/ATC Fuse - 15 Amp

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Waterproof: Waterproof
• Max Breaker Quantity: 4
• AC/DC: DC
• Voltage: 12v
• Box Dimensions: 4'H x 6'W x 7'L WT: 0.9 lbs
• UPC: 632085043049

Quick Guide (pdf)

Using this WeatherDeck fuse panel is quite easy. First, make sure to mount it properly with the watertight mounting gasket. This will ensure the panel front has the IP67 rating and can resist water immersion. When installing, you can choose one of the four different mounting orientations according to your needs. The independent label back lighting circuit allows you to control the lighting remotely and adjust the brightness. The bicolored LEDs on the circuit labels are very useful. You can quickly tell if a circuit is OFF (Red), ON (Green), or Blown (No Color). If there are no lights at all, check if there is power supply to the panel. As for maintenance, keep the panel clean and dry. Periodically check the fuses. If a fuse blows, replace it with the included 15 Amp ATO/ATC fuse. Also, be aware of the warning about the chemicals in the product. If you live in California, visit P65Warnings.ca.gov for more information.
