Blue Sea 3135 - SMS Panel Enclosure w/UL Main 3 Branch (12/24V) - 12/24V DC [3135]

3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DC

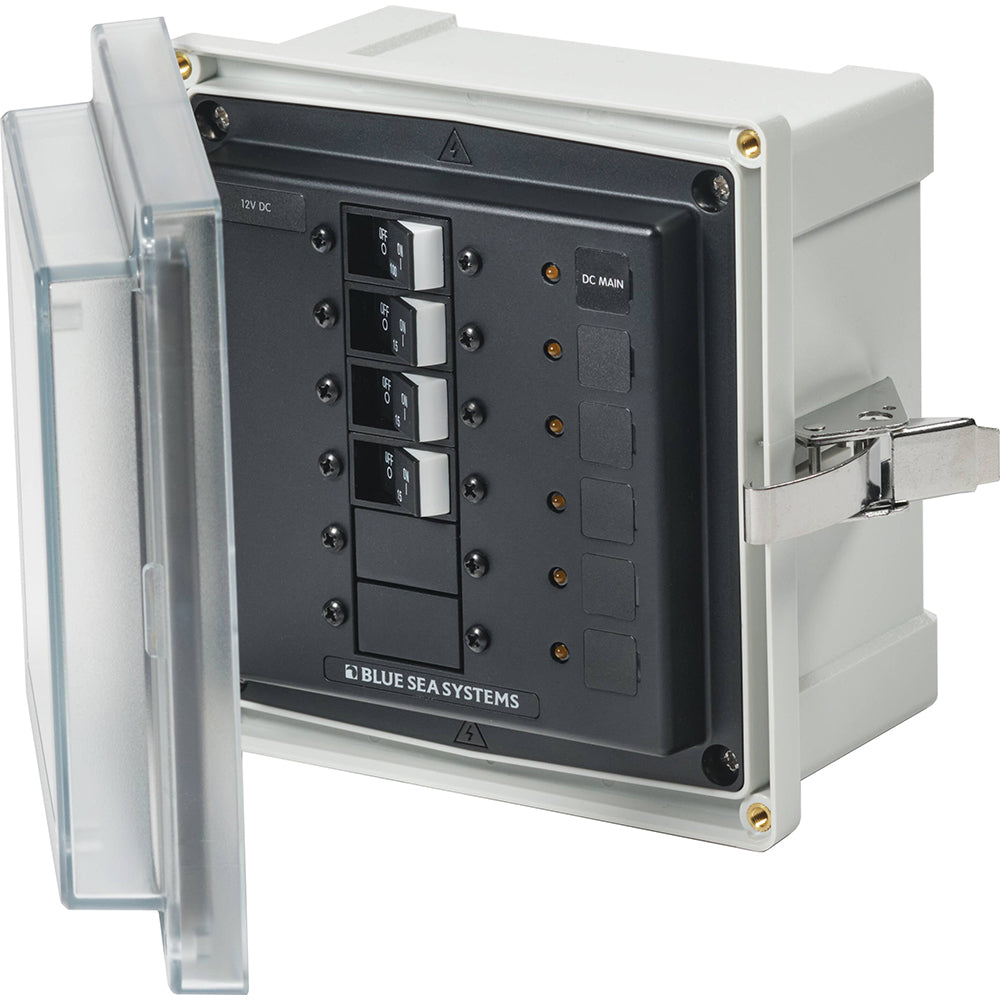

The 3135 is an ideal enclosure for DC circuit breakers and other large - frame devices. It offers a range of great features!

Features:

• Customizable blank apertures for breaker loading
• Strong glass - filled polycarbonate base
• A clear cover lets you easily check the circuit breaker status
• Overlapping cover for extra strength and better gasket protection
• Oversized seamless PUR gasket
• Removable stainless steel hinge pin for easy installation
• Stainless steel latch that secures the cover without penetrating the enclosure
• Blank circuit positions fit Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Comes with waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
  • Overall Dimensions (H x W x D) - 7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
  • Enclosure Dimensions (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • 6 x Amber ON indicating 12/24V DC LEDs installed

In the Box:

• 3135 Enclosure
• 6 Glands
• Labels
• Mounting hardware
• Instruction manual

*Sold individually

Quick Guide (pdf)Brochure (pdf)

Using the Blue Sea 3135 SMS Panel Enclosure is quite straightforward. First, use the included mounting hardware to install the enclosure in a suitable location. You can customize the breaker loading through the blank apertures according to your needs. Make sure to connect the circuit breakers properly following the technical specifications. When installing, you can easily remove the stainless - steel hinge pin to have an unobstructed installation space. The clear cover allows you to keep an eye on the circuit breaker status at any time. As for maintenance, periodically check the waterproof glands to ensure they are in good condition. If you notice any damage to the cover or base, replace them promptly. Also, clean the enclosure with a soft, dry cloth to keep it looking good and functioning well. Remember to follow the safety instructions in the included manual at all times.
