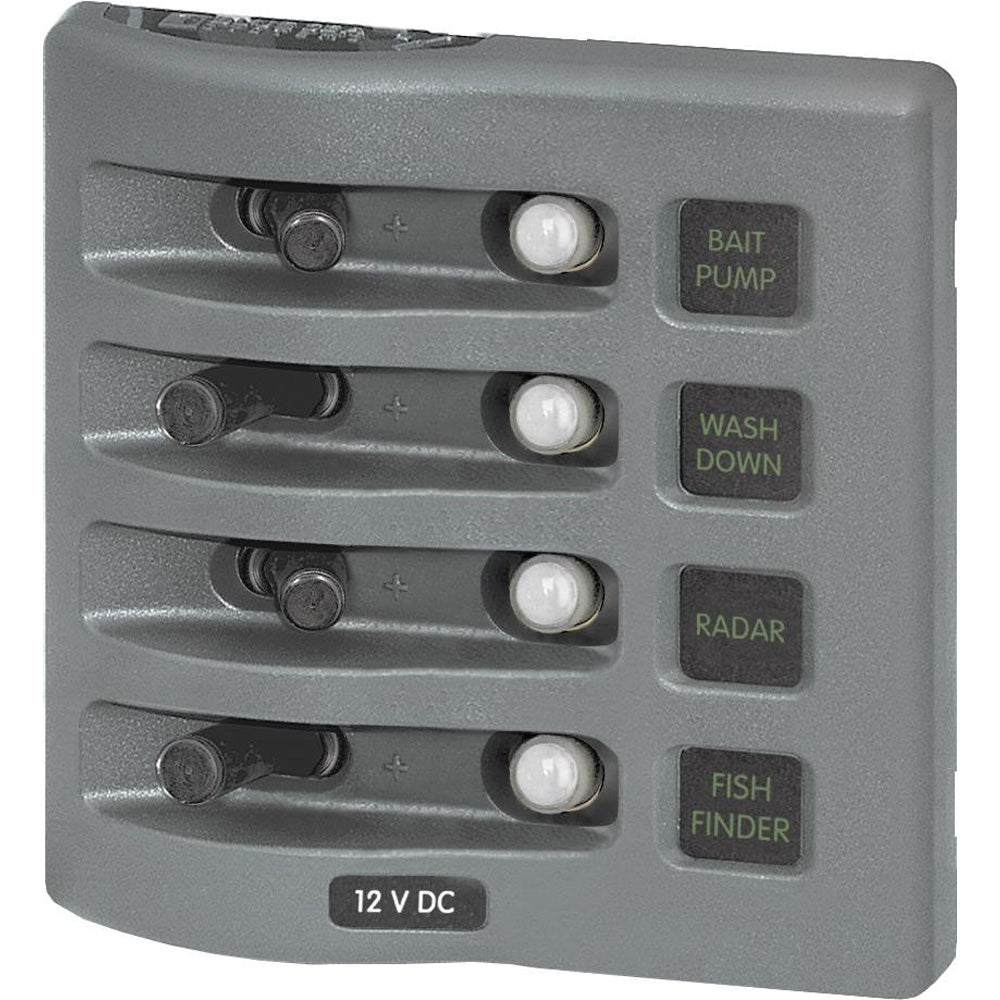

Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel - 4 Position - Grey [4374]

The Blue Sea 4374 WeatherDeck Circuit Breaker Panel is a top - notch choice for your marine electrical needs. It's grey in color and comes with 4 positions.

Features:

• IP67 - rated, can handle temporary immersion for 30 minutes, perfect for flybridge and open cockpit areas.
• Independent label backlighting with green LEDs allows easy switching and dimming, and enhances readability in low - light conditions.
• Compatible with all Blue Sea Systems Digital Dimmers.
• Can be mounted in four different orientations for flexible installation.

Specifications:

• Waterproof design for all - weather use.
• Works with 12v / 24v DC systems, with a maximum amperage of 15A @ 12v DC or 9A @ 24v DC per circuit, and a panel cumulative rating of 45A.
• Backlit labels use green LEDs with 10mA amperage per illuminated circuit, and 12 or 24v DC voltage.
• Dimensions: 4.3' height, 4.25' width, 3.5' depth.

Included:

• (4) 4135 Clear Push Button Reset Only Circuit Breaker Boots
• (4) 4138 Black WeatherDeck® Toggle Switch Boots
• (4) 4150 WeatherDeck® Toggle Switch SPST - ON - OFF
• (1) 4215 Waterproof DC Label Kit with 30 Black Square Labels V1
• (4) 7056 15 - Amp Push Button Reset Only Quick Connect Circuit Breakers

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

More Specifications:

• Waterproof and for DC systems with 12v voltage.
• Max 4 breakers. Box dimensions are 6'H x 6'W x 8'L, weighing 1 lbs, and UPC is 632085043742.

Quick Guide (pdf)

Using your Blue Sea 4374 WeatherDeck Circuit Breaker Panel is a breeze. First, decide on the best orientation for mounting it, as it can be installed in four different ways. Connect it to your 12v or 24v DC power source according to the specified amperages. The green LED - backlit labels make it easy to see and operate the switches, even in low - light conditions. You can use it with Blue Sea Systems Digital Dimmers for added functionality. When it comes to maintenance, keep it clean and dry. Since it's waterproof, you don't have to worry too much about splashes, but avoid long - term submersion beyond the 30 - minute IP67 rating. Remember, this product contains chemicals that can be harmful, so always follow the safety warnings. If you have any issues, refer to the quick guide (pdf) for more help.
