Blue Sea 3123 - SMS Panel Enclosure w/ELCI (32A) 3 Blanks - 230V AC [3123]

Blue Sea 3123 - 230V AC SMS Panel Enclosure with ELCI (32A) and 3 Blanks

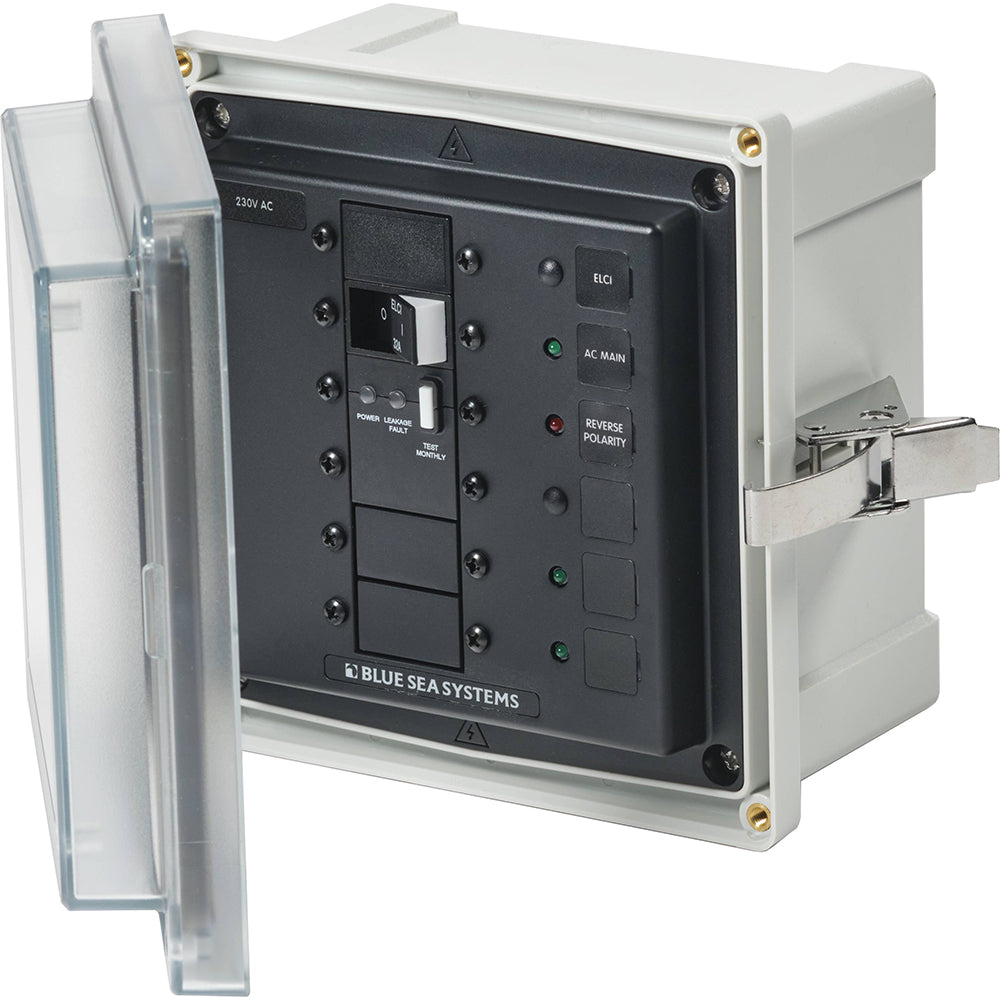

The 3123 panel enclosure is perfect for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. It meets ABYC E - 11 when paired with an ELCI main circuit breaker and installed within 10 feet of the AC shore power inlet.

Top Features:

• Customize breaker loading with blank apertures
• Durable glass - filled polycarbonate base
• See circuit breaker status easily through the clear cover
• Strong overlapping cover with increased gasket protection
• Seamless oversized PUR gasket
• Stainless steel hinge pin for easy installation
• Stainless steel latch secures cover without enclosure penetration
• Accommodates Carling Technologies™ A and C Series breakers
• Comes with waterproof glands
• LED lights for backlighting and ON indication

Technical Details:

• Circuit breakers: 1 x ELCI (32A) Main 230V and 3 x Blanks
• Overall dimensions: 7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
• Enclosure dimensions: 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs: 1 x Red (Reverse Polarity - 230V AC) and 3 x Green ON (230V AC)

What's in the Box:

• 3123 Enclosure
• 6 Glands
• Labels
• Mounting hardware
• Instruction manual

*Sold individually

Quick Guide (pdf)
Brochure (pdf)

Using your Blue Sea 3123 SMS Panel Enclosure is a breeze. First, find a suitable location within 10 feet of the AC shore power inlet. Mount it securely using the provided mounting hardware. You can customize the breaker loading by using the blank apertures according to your needs. The clear cover lets you easily check the circuit breaker status. When it comes to maintenance, keep the enclosure clean and dry. Check the gasket regularly for any signs of wear and tear and replace it if necessary. The stainless - steel parts are durable but can be wiped clean to prevent rust. Also, make sure the LEDs are functioning properly as they indicate important information like reverse polarity and power status. Refer to the instruction manual for detailed electrical connections and always follow safety guidelines.
