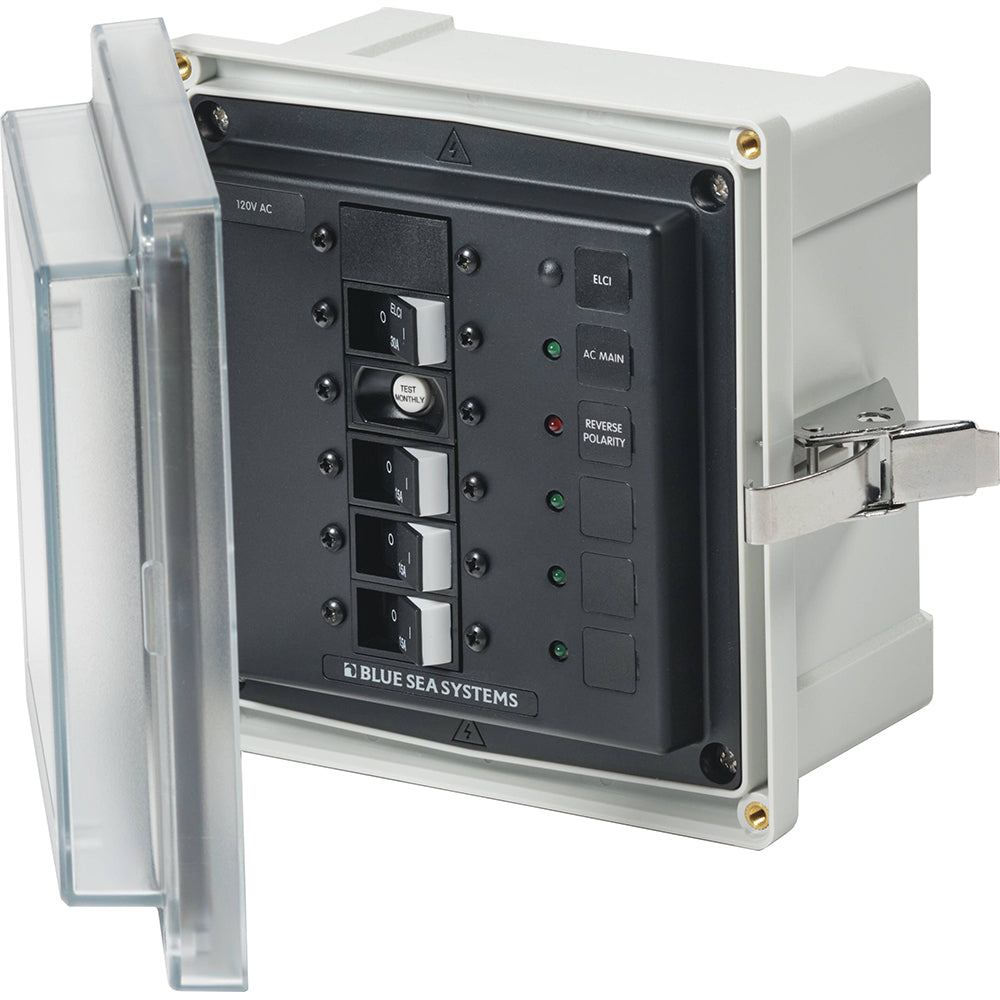

Blue Sea 3128 - SMS Panel Enclosure w/ELCI (30A) 3 Branch (15A) - 120V AC [3128]

3128 - High - quality SMS Panel Enclosure featuring ELCI (30A) and 3 Branch (15A) for 120V AC

The 3128 panel enclosure is designed for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large - frame devices. It meets ABYC E - 11 when paired with an ELCI Main circuit breaker and installed within 10' of the AC shore power inlet.

Features:

• Customizable breaker loading with blank apertures
• Durable glass - filled polycarbonate base
• Clear cover for easy circuit breaker status check
• Overlapping cover for strength and better gasket protection
• Large, seamless PUR gasket
• Removable stainless steel hinge pin for hassle - free installation
• Stainless steel latch to secure the cover without penetrating the enclosure
• Blank circuit positions for Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Comes with waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type: 1 x ELCI (30A) Main 120V and 3 x Branch (15A)
• Overall Dimensions (H x W x D): 7.6' x 7.4'' x 4.7' (192 x 188 x 120mm)
• Enclosure Dimensions (H x W x D): 6' x 6' x 4' (152 x 152 x 102mm)
• LEDs Installed: 1 x Red (Reverse Polarity - 120V AC) and 4 x Green ON (120V AC)

In the Box:

• 3128 Enclosure
• 6 Glands
• Labels
• Mounting hardware
• Instruction manual

*Sold individually

Quick Guide (pdf)
Brochure (pdf)

Using the Blue Sea 3128 SMS Panel Enclosure is straightforward. First, make sure to install it within 10 feet of the AC shore power inlet and pair it with an ELCI Main circuit breaker to meet ABYC E - 11 standards. You can customize the breaker loading through the blank apertures according to your needs. The clear cover allows you to easily check the status of the circuit breakers at any time. When installing, use the removable stainless - steel hinge pin to ensure unobstructed installation. And the stainless - steel latch can secure the cover well without penetrating the enclosure. For maintenance, keep an eye on the LED lights. The red one indicates reverse polarity, and the green ones show the ON status. Periodically check the waterproof glands to make sure they are in good condition. If there are any issues with the circuit breakers, refer to the instruction manual or contact customer service. Remember, this product is sold individually, so make sure you have all the necessary parts in the box before starting the installation.
