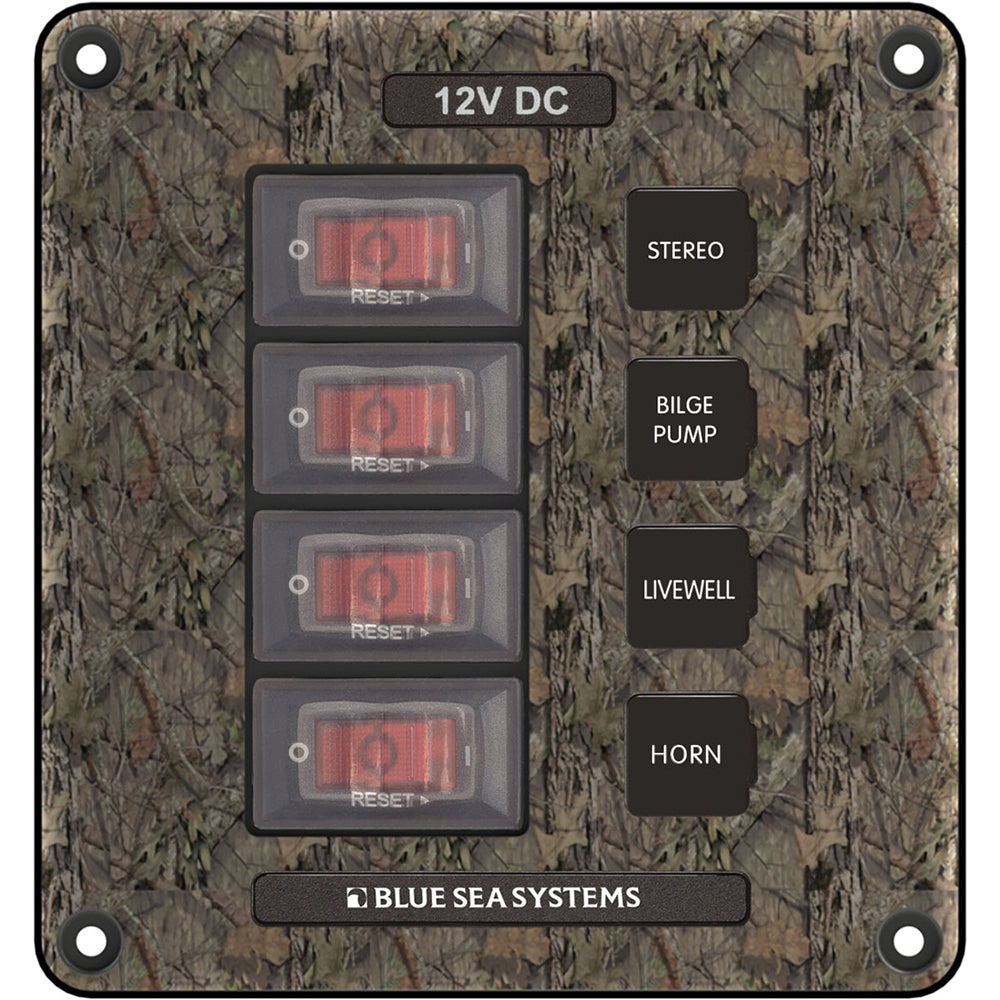

Blue Sea 4323 Circuit Breaker Switch Panel 4 Position - Camo [4323]

The Blue Sea 4323 4-Position Camo Circuit Breaker Switch Panel is perfect for exposed mounting. Its illuminated 15A circuit breakers offer switching, 'ON' indication, and overcurrent protection. With industry-standard sizes and mounting, it can be easily retrofitted in existing applications. The polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and corrosion-resistant. Silicon breaker boots and a gasket protect against water ingress. Its low profile allows for easy installation in tight spaces, and fast-on connectors make wiring quick. A two-wire connection powers all panels simply with #10 ring terminals that screw to bus bars for secure connections. It comes with 15 square format circuit labels that are easy to replace, and additional standard or custom labels are available from Blue Sea System. Specifications include a camo color, 4 positions, 12 VDC nominal voltage, 45A maximum amperage, 1/4' male quick connect terminal type, stainless steel #6 x 5/8' mounting screws, M5 (#10) ring terminal size, 12v voltage, DC power, a max breaker quantity of 4, water resistance, box dimensions of 3'H x 6'W x 10'L and a weight of 0.5 lbs, and a UPC of 632085043230.

Using the Blue Sea 4323 circuit breaker switch panel is easy. First, make sure your power source is 12 VDC. Connect the two wires using the #10 ring terminals to the bus bars for a secure power connection. The fast - on connectors on the circuit breakers let you quickly wire up your devices. You can use the included square format circuit labels to mark each position. When installing, take advantage of the low - profile design to fit it in tight spaces. As for maintenance, check the silicon breaker boots and gasket regularly to ensure they are in good condition to keep water out. The panel surface doesn't corrode easily, but you can wipe it clean with a dry cloth if it gets dirty. Be careful not to overload the panel, as the maximum amperage is 45A. If you need to replace a label, it's a breeze to do so. And if you want custom labels, Blue Sea System has you covered.
