Blue Sea 3121 - SMS Panel Enclosure w/ELCI (16A) 3 Blanks - 230V AC [3121]

230V AC 3121 - SMS Panel Enclosure with 16A ELCI and 3 Blanks

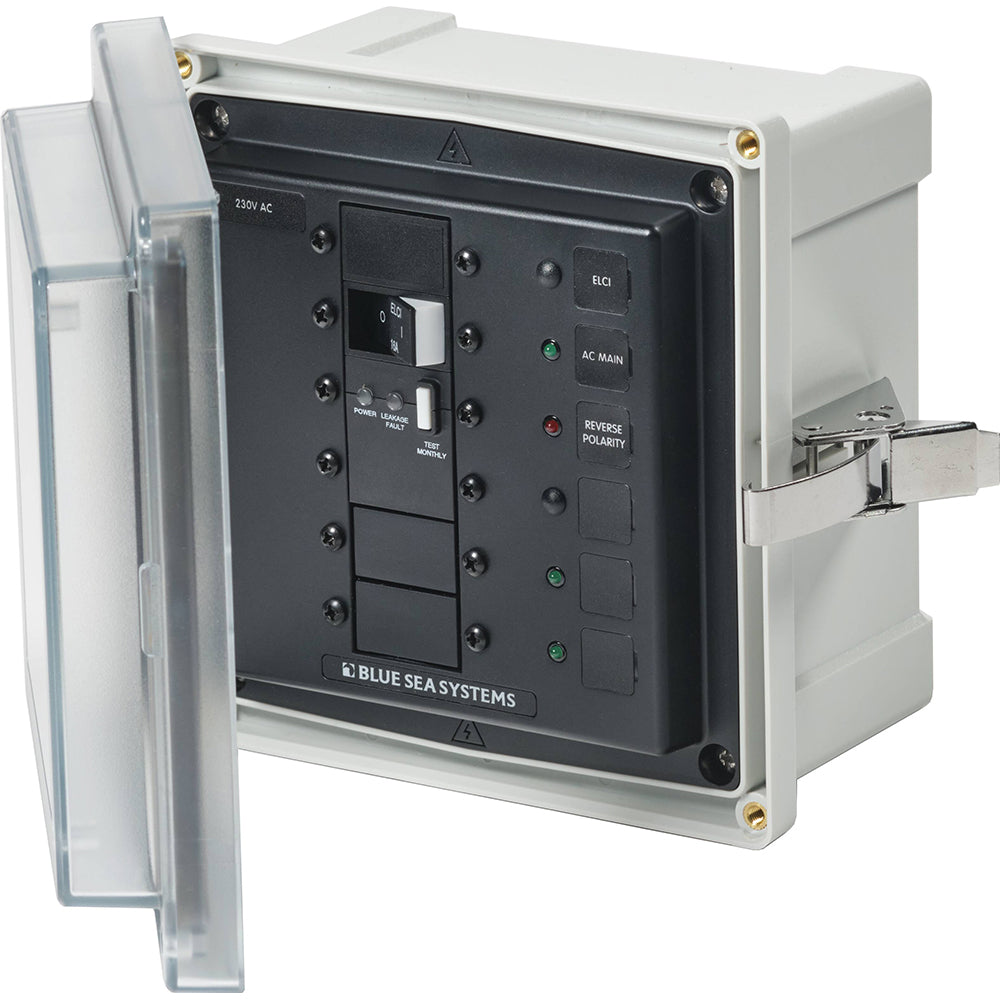

The 3121-panel enclosure is designed for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. It meets ABYC E-11 when paired with an ELCI Main circuit breaker and installed within 10 feet of the AC shore power inlet.

Features:

• Customizable breaker loading with blank apertures
• Durable glass-filled polycarbonate base
• Clear cover for easy circuit breaker status check
• Strong overlapping cover with enhanced gasket protection
• Oversized seamless PUR gasket
• Removable stainless steel hinge pin for hassle-free installation
• Stainless steel latch that secures the cover without piercing the enclosure
• Blank circuit positions for Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
• Comes with waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type: 1 x 16A ELCI Main 230V and 3 x Blank
• Overall Dimensions (H x W x D): 7.6 inches x 7.4 inches x 4.7 inches (192 x 188 x 120mm)
• Enclosure Dimensions (H x W x D): 6 inches x 6 inches x 4 inches (152 x 152 x 102mm)
• Installed LEDs: 1 x Red (Reverse Polarity - 230V AC) and 3 x Green ON (230V AC)

In the Box:

• 3121 Enclosure
• 5 Glands
• Labels
• Mounting hardware
• Instruction manual

*Sold individually

Specifications:

• AC/DC: AC
• Voltage: 230
• Box Dimensions: 7 inches H x 9 inches W x 10 inches L, Weight: 3.9 lbs
• UPC: 632085031213

Quick Guide (pdf)
Brochure (pdf)

Using the 3121 SMS Panel Enclosure is straightforward. First, make sure to mount it within 10 feet of the AC shore power inlet and pair it with an ELCI Main circuit breaker to meet ABYC E - 11 standards. You can customize the breaker loading by using the blank apertures according to your needs. The clear cover allows you to easily check the status of the circuit breakers at a glance. When installing, you can easily remove the stainless - steel hinge pin for unobstructed installation. The stainless - steel latch secures the cover without damaging the enclosure. There are also waterproof glands included to protect the internal components. Regarding maintenance, regularly check the LED lights. A red LED indicates reverse polarity at 230V AC, while green LEDs show the power is ON. Clean the enclosure periodically using a soft, dry cloth. Avoid using abrasive materials that could scratch the clear cover or damage the polycarbonate base. If you need to replace any parts, refer to the instruction manual that comes with the product.
