Blue Sea 3130 - SMS Panel Enclosure w/Main 3 Branch (15A) - 120V AC [3130]

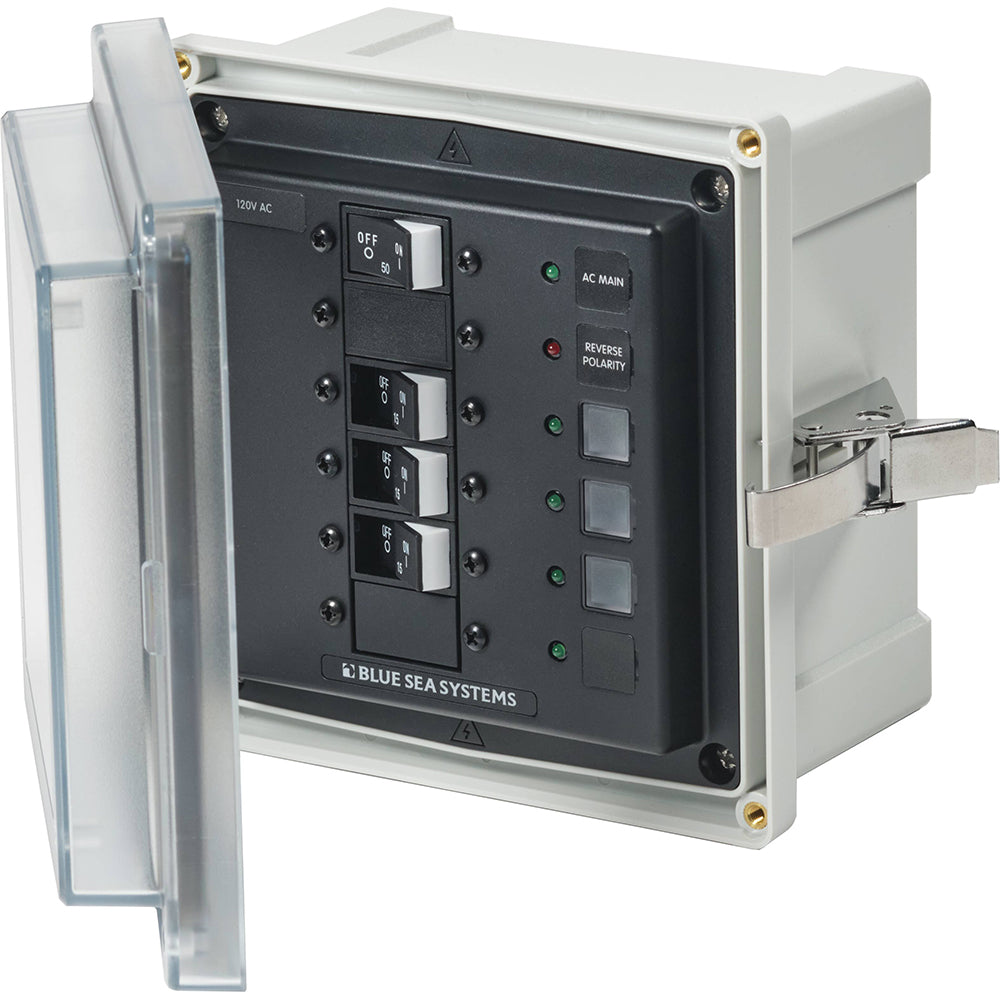

3130 - 120V AC SMS Panel Enclosure with Main & 3 Branch (15A)

The 3130-panel enclosure uses UL-489 Circuit Breakers, meeting CFR 46 / Coast Guard requirements. It's a great choice for marine and other applications.

Features:

• Customizable breaker loading with blank apertures
• Durable glass-filled polycarbonate base
• Clear cover for easy view of circuit breaker status
• Strong overlapping cover with increased gasket protection
• Large seamless PUR gasket in place
• Removable stainless steel hinge pin for easy installation
• Stainless steel latch secures cover without enclosure penetration
• Blank circuit positions fit Carling Technologies™ A and C Series breakers
• Comes with waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker: 1 x 120V Main and 3 x Branch (15A)
• Overall Dimensions (H x W x D): 7.6" x 7.4" x 4.7" (192 x 188 x 120mm)
• Enclosure Dimensions (H x W x D): 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs: 1 x Red (Reverse Polarity - 120V AC) and 5 x Green ON (120V AC)

In the Box:

• 3130 Enclosure
• 4 Glands
• Labels
• Mounting hardware
• Instruction manual

*Sold individually

- cis2:mm1pm5ht -
Quick Guide (pdf)
Brochure (pdf)

Using the 3130 SMS Panel Enclosure is straightforward. First, install the enclosure in a suitable location using the provided mounting hardware. You can customize the breaker loading according to your needs using the blank apertures. Connect the circuit breakers properly following the wiring instructions in the manual. The clear cover allows you to easily check the status of the circuit breakers at any time. When it comes to maintenance, make sure to keep the enclosure clean and dry. Check the gasket regularly for any signs of wear and tear. If the LED lights stop working, refer to the manual for troubleshooting. Always follow the safety guidelines in the instruction manual to ensure proper and safe use of the product.
