Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel - 8 Position [4309]

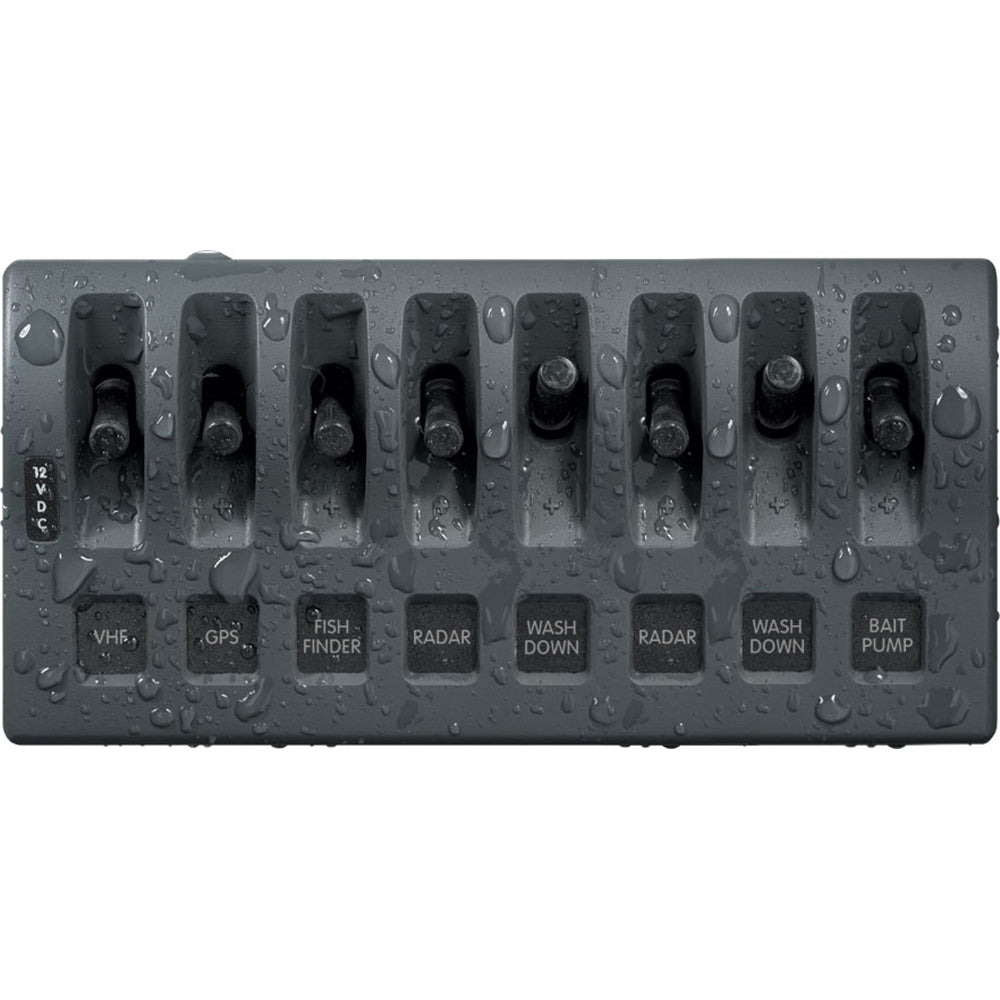

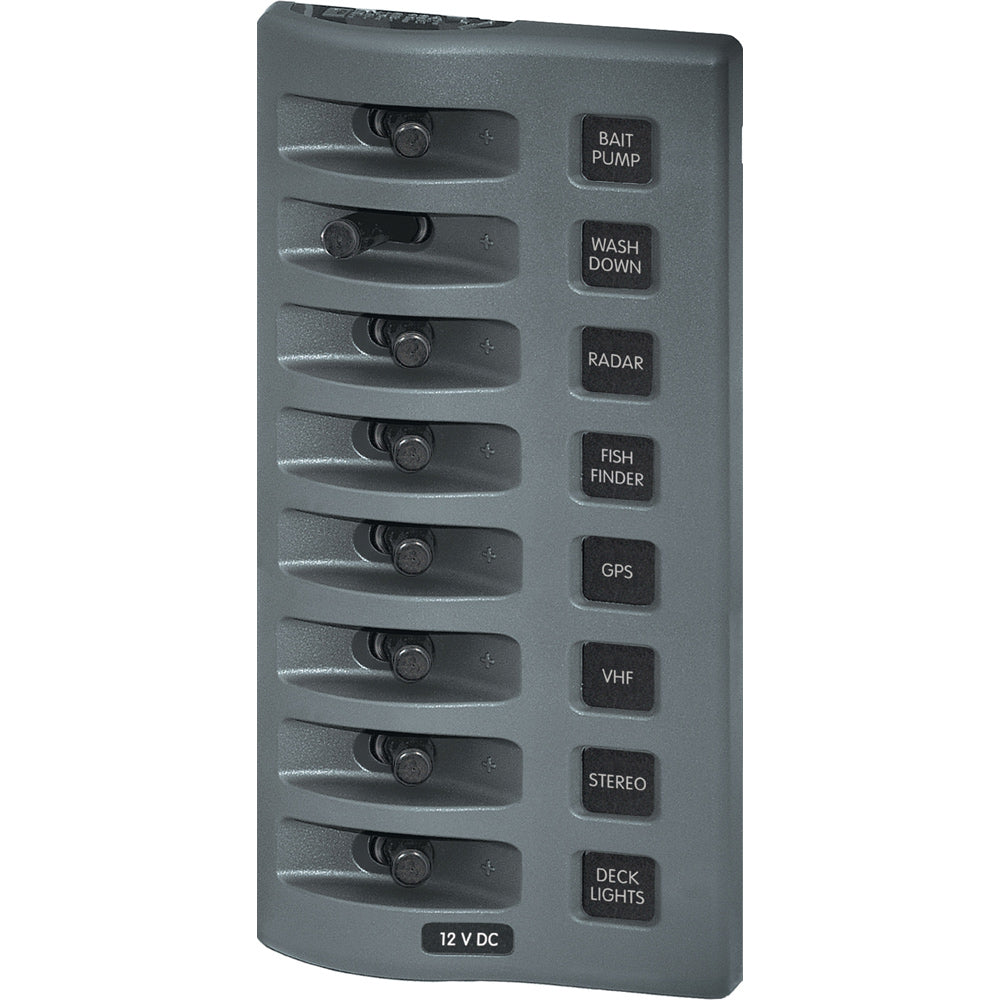

WeatherDeck® 12V DC 8 - Position Waterproof Switch Panel

This amazing switch panel comes with integrated switch guards, greatly reducing the risk of accidental switching. It can be mounted in four different ways, offering you more flexibility. When properly installed with a watertight mounting gasket, the panel front is rated IP67, ensuring excellent waterproof performance. The UV - stabilized weather - resistant faceplate can be easily snapped on and off, allowing access to components and hiding mounting screws.

Key Features:

• Weatherproof: Waterproof
• Positions: 8
• Nominal Voltage: 12V DC/24V DC
• Circuit Protection: None
• Maximum Amperage: 15A @ 12V DC (per circuit)
• Panel Cumulative Rating: 45A
• Material: Reinforced Polycarbonate
• Height: 7.70' (195.58 mm)
• Width: 3.88' (98.55 mm)
• Depth: 2.50' (63.5 mm)
• Weight: 1.55lb (0.7 kg)

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: DC
• Max Breaker Quantity: 8
• Waterproof: Waterproof
• Voltage: 12/24v
• Box Dimensions: 4'H x 6'W x 10'L WT: 1.2 lbs
• UPC: 632085043094

Owner's Manual (pdf)

Using your Blue Sea 4309 WeatherDeck 12V DC Waterproof Switch Panel is easy. First, choose the best orientation for mounting the panel according to your needs, as it can be mounted in four different ways. Make sure to use the watertight mounting gasket to ensure the panel front is properly sealed and rated IP67. When operating the switches, thanks to the integrated switch guards, you don't have to worry much about accidental switching. For the nominal voltage, you can use either 12V DC or 24V DC. But keep in mind that the maximum amperage per circuit is 15A at 12V DC, and the panel cumulative rating is 45A. When it comes to maintenance, the UV - stabilized weather - resistant faceplate can be snapped off easily for access to components. You can clean the panel with a soft, dry cloth. Remember, this product contains chemicals that can be harmful. Avoid direct contact with the chemicals and refer to P65Warnings.ca.gov for more information. If you have any other questions, check the owner's manual (pdf) for detailed guidance.
