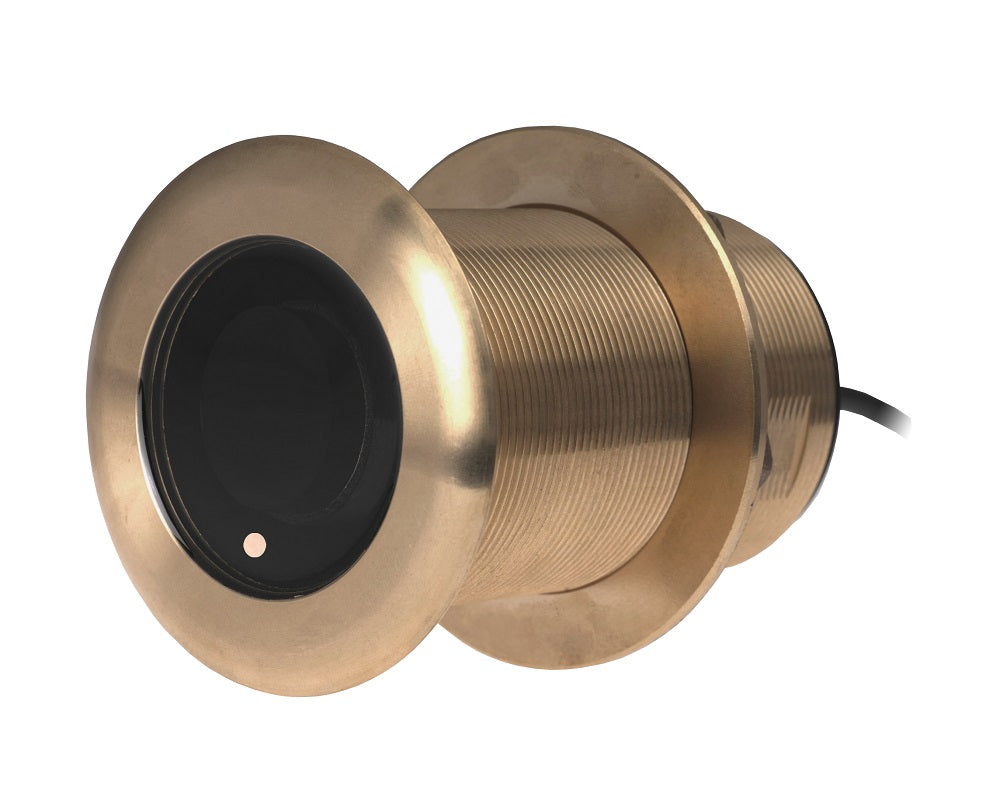

Airmar B75C-20-H 20d Tilt With Garmin 8-Pin MM Cable

The Airmar B75C-20-H is a high - performance CHIRP bronze thru - hull transducer with an 8 - pin Garmin Mix - N - Match cable. Model: B75C-20-H-8G. It combines a depth and fast - response water - temperature sensor. With one transducer, you get 80 kHz of total bandwidth, covering the popular 200 kHz fishing frequency. It features exclusive Xducer ID® technology. Ideal for commercial fishermen, charter captains, and tournament anglers, this transducer can detect the bottom down to 3,000m (10,000') with 5 to 10 times greater detail. It's highly sensitive to small targets, sending back detailed info for crisp, high - resolution images on the echosounder screen. Specifications: CHIRP Frequency 130 kHz to 210 kHz, Beamwidth 15° to 9°, Element tilt 20°, Deadrise 16° to 24°, Maximum depth 700ft. In the box: B75C-20-H-MM and MMC-8G.

Using the Airmar B75C-20-H is straightforward. First, install it on your boat according to the provided instructions. Make sure it's properly aligned with the water flow. When you're out on the water, turn on your echosounder connected to the transducer, and it will start providing depth and water - temperature information. As you move, it will detect fish and underwater structures. For best results, keep the transducer clean. Regularly check for any debris or buildup on the surface. If you notice any damage, stop using it and have it inspected by a professional. When not in use, store it in a dry place to prevent corrosion. This will help keep your transducer working well for a long time.
