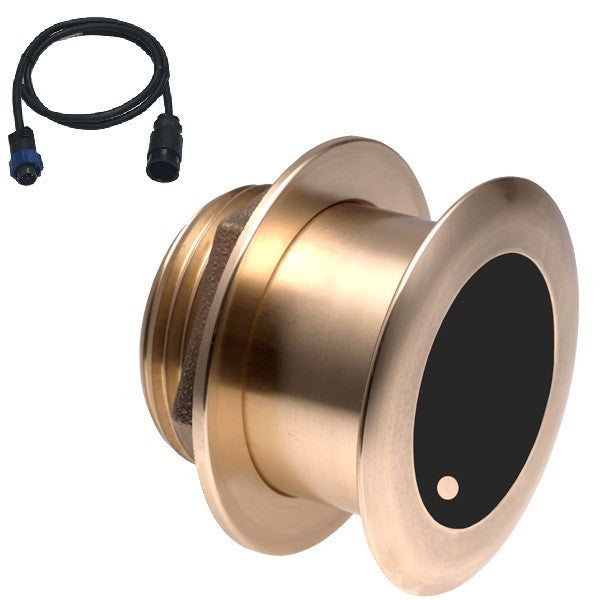

Airmar B175C-20-HW 20d Tilt With 7-Pin Navico MM Cable

The Airmar B175 is a top - notch wide - beam Chirp high - frequency transducer with a 20° tilted element and comes with a Navico 7 - pin Mix and Match Cable. Model: B175C - 20 - HW - BL. It serves as a depth and fast - response water - temperature sensor. With high - CHIRPS from 150 kHz to 250 kHz, it has a 25° constant beamwidth and 100 kHz of total bandwidth from a single transducer. It covers the popular 200 kHz fishing frequency and the whole bandwidth. Ideal for fiberglass or wood hulls on boats 8 m (25’) and above. Airmar's new wide - beam Chirp product line gives more coverage under the boat. With a 150 - 250 kHz high - frequency range and a constant 25° beam width, these transducers are the best in broadband performance. They not only enhance the performance of Chirp - ready echosounders but also offer twice the coverage under the boat compared to current high - frequency Chirp transducers. The beam width of these high - frequency transducers remains a constant 25° across the entire frequency band. They provide vast bottom coverage, precise fish detection in the upper water column, and create crisper and larger return images on the display. Specifications: Deadrise is 16° to 24°, acoustic window is urethane, power rating is 1 kW @ 1% duty cycle, and frequency is 150 to 250 kHz - A (Broadband). What's in the box: B175C - 20 - HW - MM Transducer and MMC - BL Mix and Match Cable.

Using your Airmar B175C - 20 - HW transducer is easy. First, make sure your boat's hull is fiberglass or wood and at least 8 m (25’) long. Connect the 7 - pin Navico MM cable properly to your equipment. Once installed, turn on your echosounder. The transducer will start detecting depth and water temperature right away. For the best results, keep the acoustic window clean. Regularly check the cable for any signs of wear or damage. When it comes to maintenance, wipe the transducer with a soft cloth to remove dirt and debris. Avoid using harsh chemicals on it. If you notice any performance issues, check the deadrise angle (should be between 16° and 24°) and the power rating. Also, ensure the frequency is set within the 150 - 250 kHz - A (Broadband) range. With proper use and care, your Airmar transducer will serve you well for a long time.
