Airmar B175C-0-HW 0d Tilt With Humminbird 9-Pin MM Cable

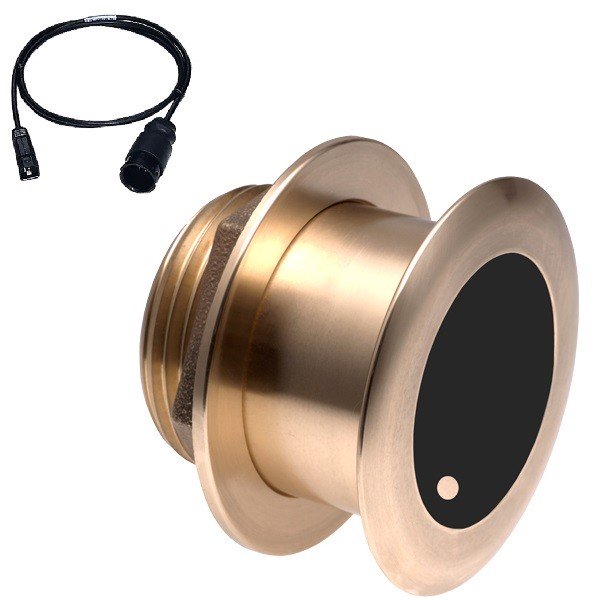

The Airmar B175 is a wide - beam CHIRP high - frequency transducer with a 0° tilted element, paired with a Humminbird 9 - Pin Mix - N - Match Cable. Model: B175C - 0 - HW - HB. It serves as a depth and fast - response water - temperature sensor. Operating from 150 kHz to 250 kHz, it has a 25° constant beamwidth and a total bandwidth of 100 kHz from a single transducer. This covers the popular 200 kHz fishing frequency and more. Ideal for fiberglass or wood hulls on boats 8 m (25’) and above. Airmar's new wide - beam Chirp product line offers greater coverage under the boat. With a high - frequency range of 150 - 250 kHz and a 25° beam width, these transducers are top - notch broadband devices. Anglers will get twice the coverage compared to current high - frequency Chirp transducers. The constant 25° beam width across the frequency band provides vast bottom coverage, precise fish detection in the upper water column, and crisper, larger return images on the display. Specifications: Deadrise 0° to 7°, Acoustic Window Urethane, Power rating 1 kW @ 1% duty cycle, Frequency 150 to 250 kHz - A (Broadband). In the box: B175C - 0 - HW - MM Transducer and MMC - HB Mix and Match Cable.

Using this Airmar B175 transducer is easy. First, make sure your boat is suitable. It's designed for fiberglass or wood hulls on boats 8 m (25’) and above. Connect the Humminbird 9 - Pin Mix - N - Match Cable properly to your system. When you're out on the water, the transducer will start detecting depth and water temperature right away. For the best results, keep in mind the deadrise of your boat should be between 0° to 7°. As for maintenance, after each use, rinse the transducer with fresh water to remove any salt, dirt, or debris. Store it in a dry place. Also, check the cable regularly for any signs of damage. If you notice any issues, it's best to get it checked by a professional. This way, your transducer will keep performing well for a long time.
