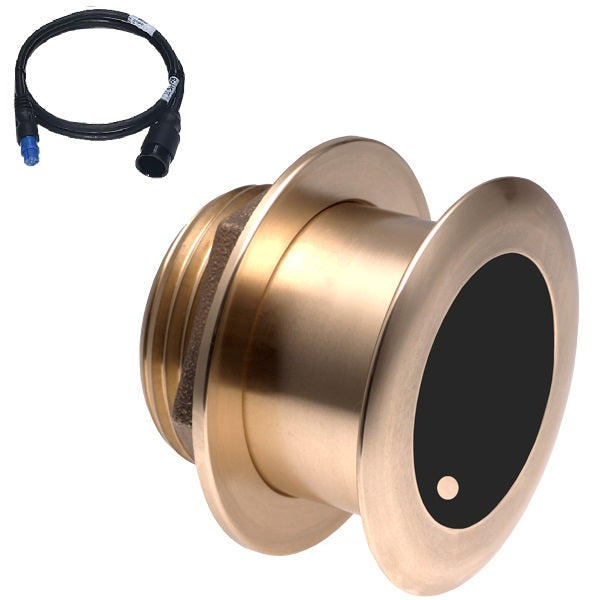

Airmar B175C-0-H 0d Tilt With Garmin 8-Pin MM Cable

The Airmar B175C-0-H-8G is a great depth and fast - response water - temperature sensor. It offers high - frequency CHIRP from 150 kHz to 210 kHz, with 80 kHz of total bandwidth from a single transducer. This is suitable for boats 8 m (25’) and above. It covers the popular 200 kHz fishing frequency and the whole bandwidth. Ideal for fiberglass or wood hulls, its ceramic elements are permanently tilted inside the housing to compensate for hull deadrise, aiming the beam straight down for maximum echo returns and no need for a fairing. Flush/tilted transducers can be mounted through holes in fiberglass, metal or wooden hulls. High - frequency operation provides greater detail, perfect for shallower water and anglers fishing less than 1500 feet deep. Specifications include a deadrise of 0° to 7°, a urethane acoustic window, a 1 kW power rating at 1% duty cycle, a frequency range of 130 to 210 kHz - A (Broadband), a 10° to 6° beam, and a max depth of 1000 ft. The package includes a B175C - 0 - H - MM Transducer and an MMC - 8G Mix and Match Cable.

Using this Airmar transducer is easy. First, find a suitable location on your boat's hull (fiberglass, metal or wood). Drill a hole and mount the transducer so that the outside of the fitting is flush against the exterior hull surface. Connect the Garmin 8 - Pin Mix - N - Match Cable to your device. When you're out on the water, the transducer will start sending and receiving signals to give you depth and water - temperature information. For the best results, make sure your boat's deadrise is between 0° and 7°. Keep in mind that this transducer is more effective in shallower waters, less than 1500 feet deep. When it comes to maintenance, avoid hitting the transducer against hard objects. Check the acoustic window (made of urethane) regularly for any signs of damage. Also, make sure the cable connections are tight and dry. If you're not using the transducer for a long time, store it in a dry place.
