BEP 3-Position Nylon Ignition Switch - OFF/Ignition/Start [1001610]

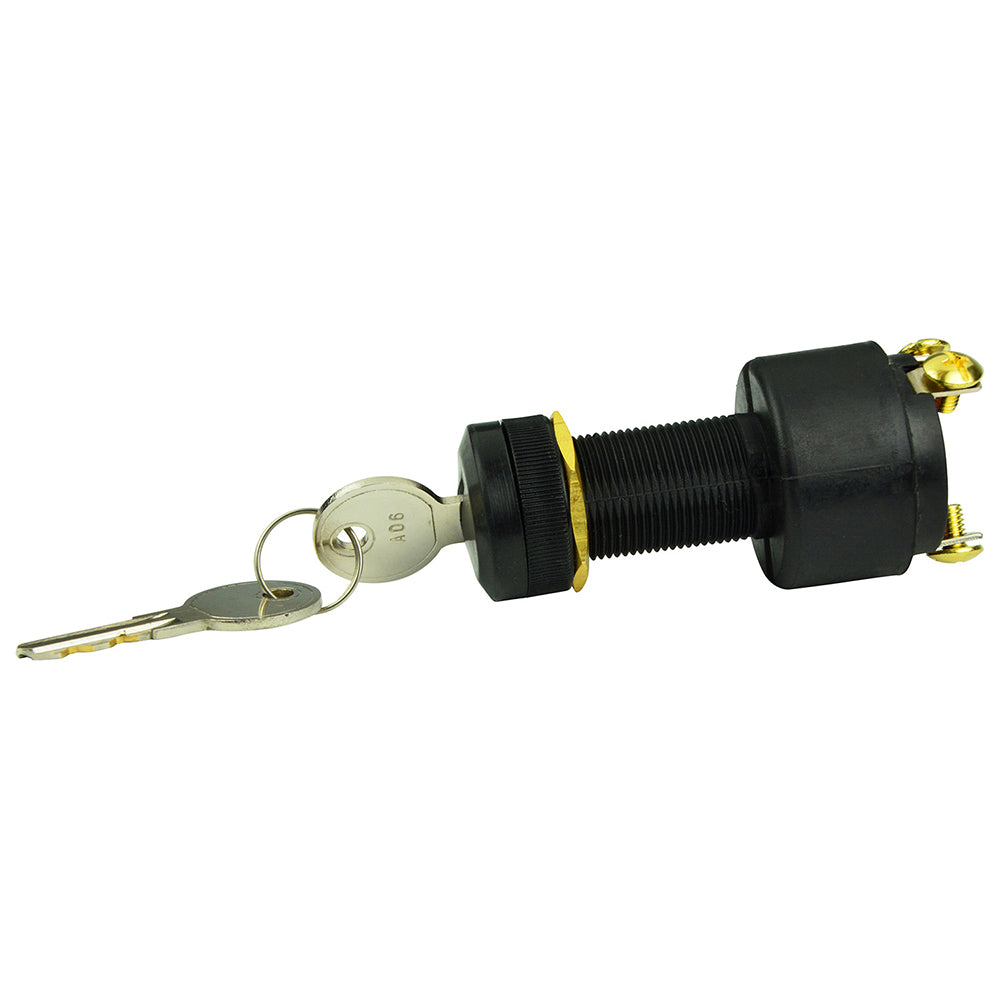

3-Position Nylon Ignition Switch - OFF/Ignition/Start

Get this impact and corrosion-resistant switch that fits a standard 7/8' diameter hole. It comes with a PVC boot for extra weather protection.

Key Features:

• Enhanced security with a coded tumbler lock and two keys
• Operates at a nominal voltage of 6 - 36V DC
• Rated for 15A ignition and 5A start
• #8 - 32 screw terminals for easy connection
• Fits panels up to 7/8' thick
• Same as Cole Hersee part number M - 850

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Using this 3 - position nylon ignition switch is easy. First, make sure the voltage of your system is within the 6 - 36V DC range. Then, connect it to your device using the #8 - 32 screw terminals. You can turn it to the 'OFF' position when you don't want the device to run, 'Ignition' to start the ignition process, and 'Start' to fully start the device. The switch is designed to fit panels up to 7/8' thick, so check your panel's thickness before installation. It comes with a PVC boot for added weather protection, but try to keep it away from extremely harsh weather conditions. The coded tumbler lock provides extra security, so keep the two keys safe. Also, be aware that this product contains chemicals that may cause harm as mentioned in the warning. If you need to clean it, use a soft, dry cloth. Don't use abrasive materials as they may damage the switch.
