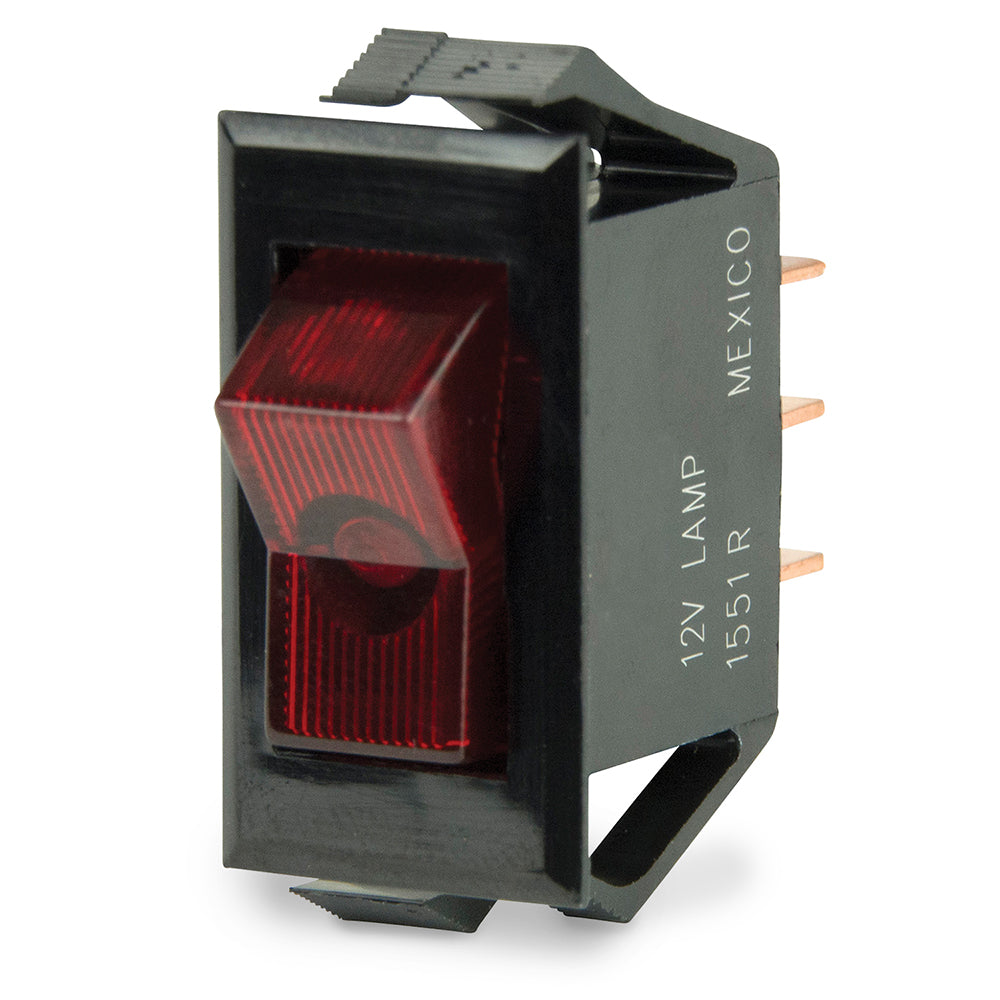

BEP Illuminated SPST Rocker Switch - Red LED - 12V - OFF/ON [1001705]

Elevate your electrical setup with this amazing BEP illuminated SPST rocker switch. It features a red LED that lights up when the switch is ON, adding a cool visual touch. This single pole, single throw switch is perfect for turning one circuit on and off. Key features include a 12V DC nominal voltage, rated for 10A at 12V DC. It has snap - in mounting holes measuring .55' x 1.13' and fits panels .02' to .25' thick. The switch comes with a black plastic body and a clear plastic rocker that glows red when activated. It also has 1/4' blade terminals and is the same as Cole Hersee part number 54003. Specifications: Throw/Pole is SPST, color is Black/Red, action is On/Off, box dimensions are 2'H x 3'W x 5'L with a weight of 0.2 lbs, and the UPC is 870216046266. WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known to the State of California to cause cancer, birth defects or other reproductive harm. For more info, go to P65Warnings.ca.gov.

Using this BEP rocker switch is easy. First, make sure the power is off before installation. Find a panel that's between .02' and .25' thick and use the snap - in mounting holes (.55' x 1.13') to attach the switch. Connect the 1/4' blade terminals to the appropriate circuit. Once installed, turn on the power and when you flip the switch to the ON position, the red LED will light up, indicating the circuit is active. When using, always ensure the voltage doesn't exceed 12V DC and the current doesn't go over 10A at 12V DC. Regarding maintenance, keep the switch clean. You can use a dry cloth to wipe the black plastic body and the clear plastic rocker. Be aware that this product contains chemicals that can be harmful. Avoid direct contact with the chemicals and if you live in California, refer to P65Warnings.ca.gov for more information.
