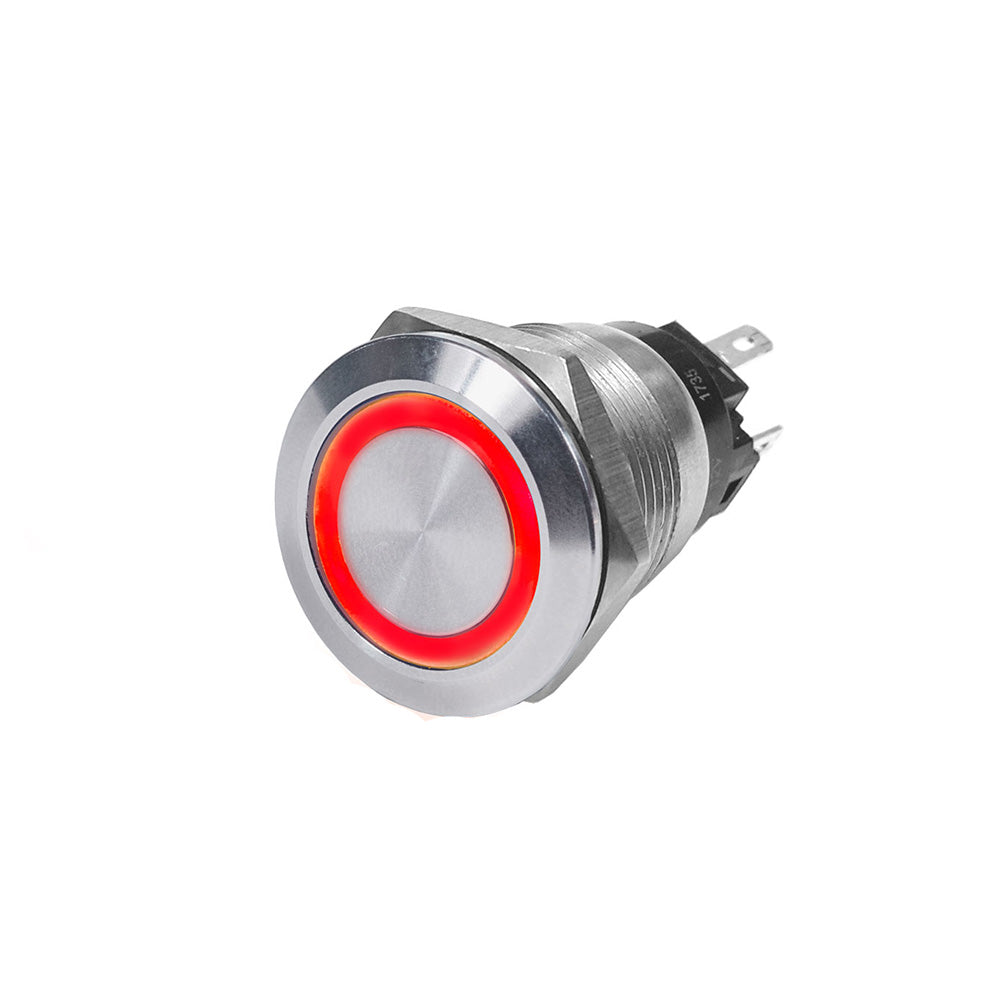

Blue Sea 4162 SS Push Button Switch - Off-On - Red - 10A [4162]

The Blue Sea 4162 stainless steel push button switch in vibrant red is a top - notch electrical component. It offers a 10A continuous current capacity. You can choose between Single Pole Double Throw or Single Pole Single Throw configurations and wire it for normally open or normally closed operations. Installation is a breeze with the included.110 - inch quick connects.

Specifications

• Action: OFF - ON
• Amperage: 10A at 12V DC
• Nominal Voltage: 12V DC
• Max LED Operating Current: 20mA
• Min Operating Temp: - 10°C
• Max Operating Temp: 70°C
• Min Storage Temp: - 55°C
• Max Storage Temp: 85°C
• Illumination: Independent with separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 – 0.110 - inch Quick Connect terminals

WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (DEHP), known in California to cause cancer, birth defects, or other reproductive harm. For more info, visit P65Warnings.ca.gov.

Specifications:

• Color: Stainless
• Action: On/Off
• Box Dimensions: 2'H x 3'W x 5'L, Weight: 0.1 lbs
• UPC: 632085041625

Using this Blue Sea push button switch is simple. First, choose the right wiring configuration according to your needs - either Single Pole Double Throw or Single Pole Single Throw. Then, connect it using the included.110 - inch quick connects. Make sure the voltage is within the 12V DC nominal value and the current doesn't exceed 10A. When it comes to storage, keep it in a place where the temperature is between - 55°C and 85°C. For normal operation, the temperature should be between - 10°C and 70°C. As for maintenance, check the connections regularly to ensure they are secure. Also, be aware that this product contains chemicals that may be harmful, so always follow the warning instructions.
