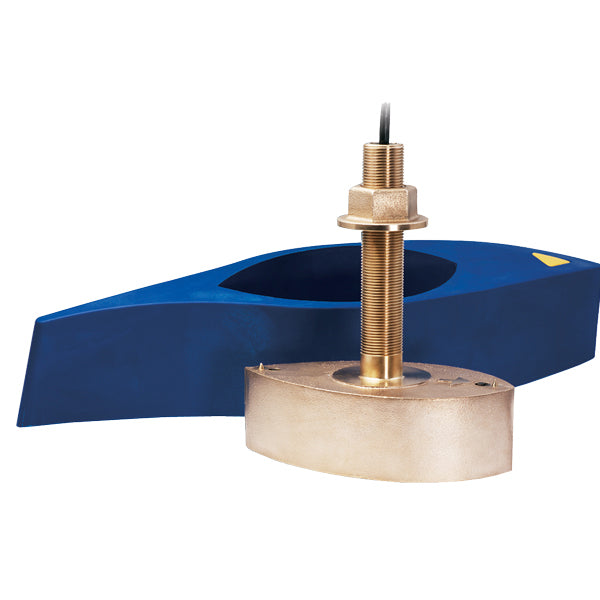

Airmar B265C-LH Bronze TH Low High CHIRP Mix-N-Match Transducer

The Airmar B265C-LH Bronze TH transducer is a game-changer for fishing. It lets you target specific fish species by tuning to their ideal frequencies, like 60 kHz for Bluefin Tuna, 133 kHz for Squid, and 175 kHz. Connect it to a tunable fish finder, and you can mark fish accurately on the screen, just like a pro fisherman. This transducer offers extreme target detail, excellent bottom discrimination, and can separate bait from game fish at all depths. The B265LH has a seven - element low - frequency array working from 42 kHz to 65 kHz with a 25° beam that adjusts as you tune the frequency. The high - frequency ceramic operates from 130 kHz to 210 kHz with a 6° beam that's also adjustable. The included High - Performance Fairing ensures broadband performance at speeds over 30 knots (34 MPH). It has a total bandwidth of 103 kHz, covering popular fishing frequencies like 50 and 200 kHz. Ideal for both commercial and recreational inshore and offshore fishing, including deep - water canyon and sea - mount tracking. It comes in a bronze housing with a high - performance fairing, suitable for boats 8 m (25’) and above with fiberglass or wood hulls. It also features exclusive Xducer ID® technology. Hull deadrise can be up to 20° with the fairing, has a urethane acoustic window, and weighs 7.3 kg (16 lb).

Using this Airmar B265C - LH Bronze transducer is easy. First, connect it to your tunable fish finder. Then, find out the ideal frequency for the fish you want to catch, like 60 kHz for Bluefin Tuna. Tune your fish finder to that frequency, and you'll be able to see the fish clearly on the screen. When installing, make sure your boat is at least 8 m (25’) and has a fiberglass or wood hull. The hull deadrise should be up to 20° with the fairing. For maintenance, keep the transducer clean. After each use, rinse it with fresh water to remove any salt or debris. Check the acoustic window regularly. If it's made of urethane, make sure there are no cracks or damages. Also, be careful when handling the transducer as it weighs 7.3 kg (16 lb). Don't expose it to extreme temperatures or harsh chemicals. With proper use and care, this transducer will serve you well for many fishing trips.
