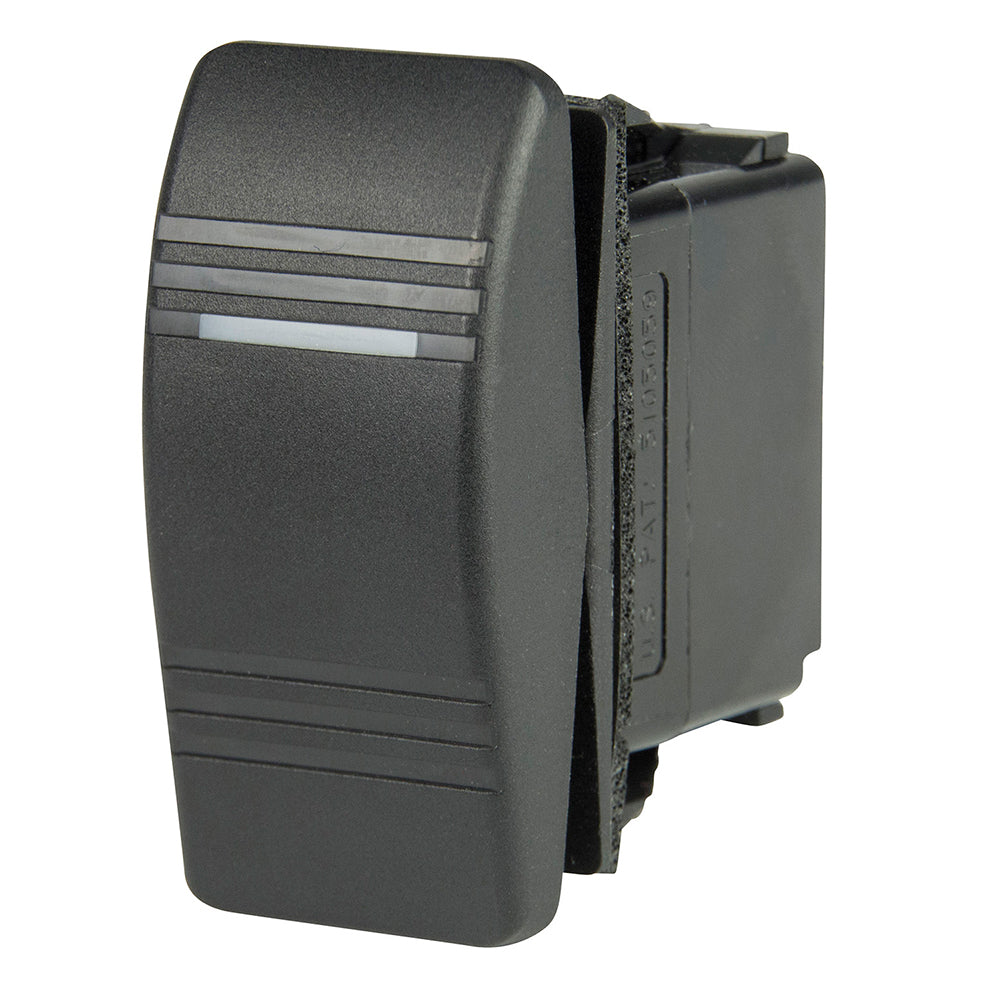

BEP DPDT Contura Switch - 1-Amber LED - ON/OFF/(ON) [1001807]

The BEP DPDT Contura switch is a high - quality electrical switch. It's a double pole, double throw switch that can turn two out of four circuits on at once. Ideal for intermittent and maintained windshield wiper control. With an IP66 rating, it's resistant to high - pressure washes, making it perfect for waterproof electrical panels with rocker switches. The black and gray switches and covers are interchangeable with those on many common boats. Key features include a nominal voltage of 12V/24V DC, rated for 20A at 12V DC and 15A at 24V DC with 1/4' blade terminals. It comes with one Amber LED and has a snap - in mounting that fits a panel hole of 1.45' x .83' in panels .093' to .187' thick. It's equivalent to Cole Hersee part number 58332 - 25. Warning: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp) which may cause cancer, birth defects or other reproductive harm. For details, visit P65Warnings.ca.gov. Specifications: Throw/Pole is DPDT, color is black, action is On/Off/(On), box dimensions are 2'H x 3'W x 5'L and weighs 0.1 lbs, UPC is 870216046464.

Using this BEP DPDT Contura switch is easy. First, make sure the power is off before installation. Find a suitable waterproof electrical panel with a panel hole of 1.45' x .83' and a thickness between .093' to .187'. Then, snap the switch into the hole. Connect the 1/4' blade terminals to your circuits, following the correct polarity for 12V/24V DC. The switch can turn two out of four circuits on at a time, so you can use it for things like windshield wiper control. When it comes to maintenance, since it's IP66 rated, it can withstand high - pressure washes. But it's still a good idea to check the connections periodically to make sure they're tight. Be aware that this product contains chemicals that may be harmful, so avoid direct contact. If you have any concerns, refer to P65Warnings.ca.gov for more information.
