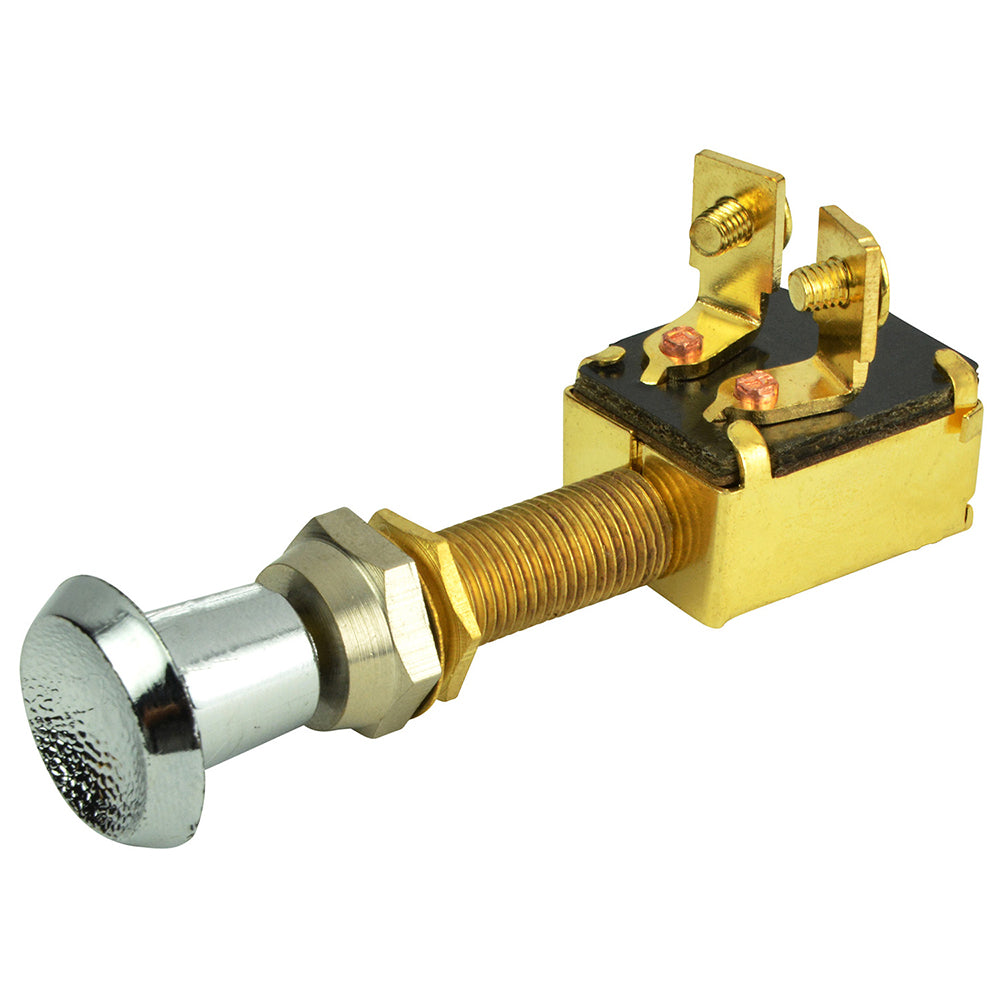

BEP 2-Position SPST Push-Pull Switch w/Contoured Knob - OFF/ON [1001307]

This 2-Position SPST Push-Pull Switch with a contoured knob offers an easy ON/OFF operation for a single circuit. It features a heavy-duty, noncorrosive build with moisture-repellent insulators. The switch comes with a brass case, stem, terminals, and mounting hardware, and all knobs are of the screw-on type. Key features include a nominal voltage of 6 - 36V DC, a 10A rating at 12V DC, #8 - 32 screw terminals, and it fits panels up to 3/4' thick. It's the same as Cole Hersee part number M - 628. The switch is chrome - colored, has an on/off action, and comes in box dimensions of 2'H x 3'W x 5'L with a weight of 0.2 lbs and a UPC of 870216046013. WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects, or other reproductive harm. For more info, visit P65Warnings.ca.gov.

Using this switch is straightforward. Just push or pull the contoured knob to turn the single circuit on or off. When installing, make sure the panel is no thicker than 3/4' as that's the maximum the switch can fit. Connect the wires to the #8 - 32 screw terminals. Remember, this switch is rated for a nominal voltage of 6 - 36V DC and 10A at 12V DC, so don't exceed these limits. Regarding maintenance, keep it dry as it has moisture - repellent insulators, but avoid using harsh chemicals on the chrome finish. Be aware that this product contains chemicals that can be harmful, so follow the warnings and visit P65Warnings.ca.gov for more details.
