Airmar B75C-0-H 0d Tilt With Raymarine 11-Pin MM Cabl

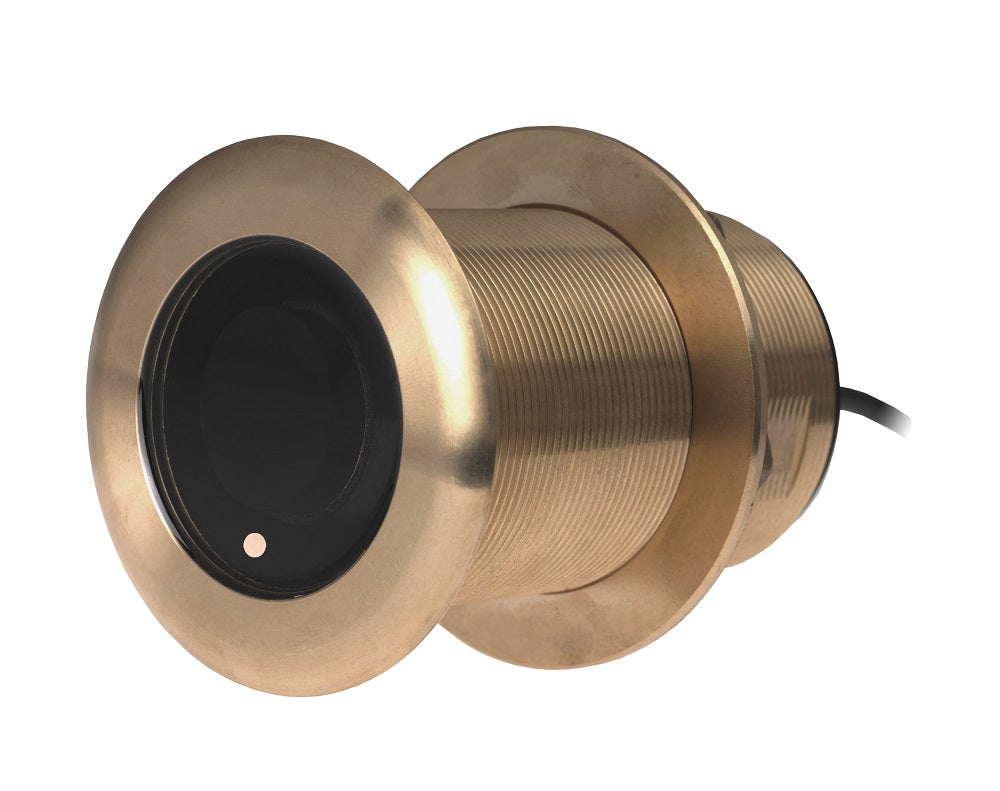

The Airmar B75C is a top - notch 0° tilted element High CHIRP Bronze Thru Hull transducer paired with an 11 - Pin Raymarine Mix - N - Match Cable. Model B75C - 0 - H - 11R offers a depth and fast - response water - temperature sensor. With one transducer, you get 80 kHz of total bandwidth, covering the popular 200 kHz fishing frequency and more. It features the exclusive Xducer ID® technology. Ideal for commercial fishermen, charter captains, and tournament anglers, this CHIRP transducer can detect the bottom down to 3,000m (10,000') with 5 to 10 times greater detail. It's more sensitive to small targets and shows clear, high - resolution images on the echosounder screen. Save time and money with a single installation. When used alone, it requires an A80328, and as a transducer pair, an A102146. Specifications include a CHIRP frequency from 130 kHz to 210 kHz, a beamwidth of 15° to 9°, an element tilt of 0°, a deadrise of 0° to 7°, and a maximum depth of 700ft. The box includes B75C - 0 - H - MM and MMC - 11R - HM.

Using the Airmar B75C transducer is easy. First, install it according to the instructions. If you're using it alone, make sure to connect the A80328. For a transducer pair, use the A102146. Once installed, power it on and connect it to your echosounder. It will start providing depth and water - temperature data right away. When using it, keep in mind that it works best within the specified deadrise range of 0° to 7°. Also, the maximum depth it can measure is 700ft. For maintenance, regularly check the cable for any signs of wear or damage. Clean the transducer element gently with a soft cloth to keep it in good condition. This will ensure accurate readings and a long lifespan for your transducer.
