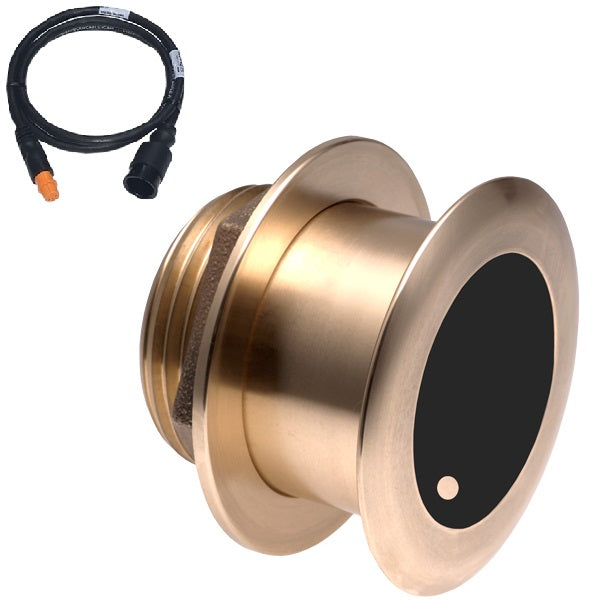

Airmar B175C-0-H 0d Tilt With Garmin 12-Pin MM Cable

The Airmar B175C-0-H is a high-performance CHIRP transducer. It comes with a Garmin 12-Pin Mix-N-Match cable. This model (B175C-0-H-12G) is a depth and fast-response water-temperature sensor. It has high CHIRP frequency from 150 kHz to 210 kHz, offering 80 kHz of total bandwidth from one transducer. It's suitable for boats 8 m (25’) and above. The ceramic elements inside the housing are permanently tilted to compensate for hull deadrise, ensuring the sonar beam aims straight down for maximum echo returns. It can be installed in fiberglass, metal, or wooden hulls. High frequency provides greater detail, perfect for shallower water and anglers fishing less than 1500 feet deep. Specifications include a deadrise of 0° to 7°, a urethane acoustic window, 1 kW power rating at 1% duty cycle, a frequency range of 130 to 210 kHz - A (Broadband), a 10° to 6° beam, and a max depth of 1000ft. The package includes a B175C-0-H-MM Transducer and an MMC-12G Mix and Match Cable.

Using the Airmar B175C-0-H transducer is quite straightforward. First, make sure your boat is at least 8 meters long and has a fiberglass, metal, or wooden hull. Drill a hole in the hull and mount the transducer with the outside of the fitting flush against the exterior hull surface. Connect the Garmin 12 - Pin Mix - N - Match cable to the appropriate device. When you're out on the water, the transducer will measure the depth and water temperature for you. It's best used in shallower waters, less than 1500 feet deep, where it can give you detailed information. As for maintenance, keep the transducer clean. You can use a soft cloth to wipe it down after each use. Avoid hitting the transducer against hard objects as it might damage the ceramic elements. Check the cable regularly for any signs of wear and tear. If you notice any issues, replace the cable promptly. Also, be aware that the deadrise of your boat should be between 0° and 7° for the best performance.
