Airmar B175C-0-H 0d Tilt w/ Humminbird 14-Pin MM Cabl

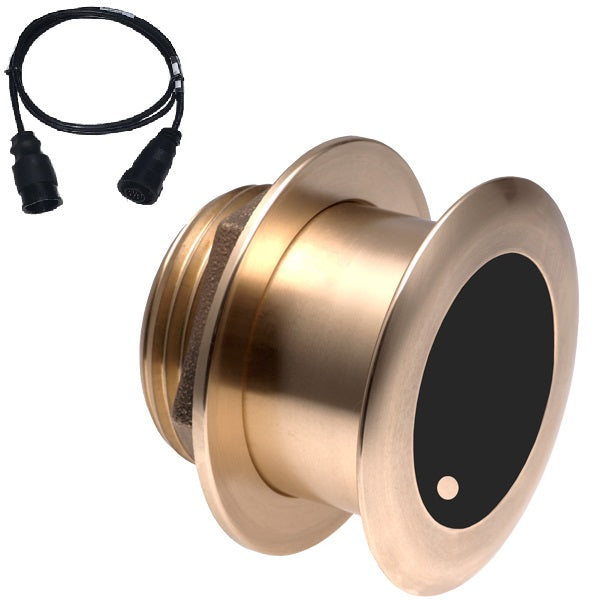

The Airmar B175C-0-H is a high - frequency CHIRP transducer with a 0 - degree tilted element and comes with a Humminbird 14 - pin Mix - N - Match cable. Model: B175C - 0 - H - 14HB. It has a depth and fast - response water - temperature sensor. With high - CHIRPS from 150 kHz to 210 kHz, it offers 80 kHz of total bandwidth from one transducer. Ideal for boats 8 m (25’) and above. It covers the popular 200 kHz fishing frequency and the whole bandwidth. Suitable for fiberglass or wood hulls. The ceramic elements inside the housing are permanently tilted to compensate for hull deadrise, ensuring the beam aims straight down for maximum echo returns and no need for a fairing. Flush/tilted transducers can be mounted through a hole in fiberglass, metal or wooden hulls. High frequency provides greater detail, best for shallower water and anglers fishing less than 1500 feet. Specifications: Deadrise 0° to 7°, Acoustic Window Urethane, Power rating 1 kW @ 1% duty cycle, Frequency 130 to 210 kHz - A (Broadband), Beam 10° to 6° beam, Max Depth 1000ft. What's in the box: B175C - 0 - H - MM Transducer and MMC - 14HB Mix and Match Cable.

Using the Airmar B175C - 0 - H transducer is easy. First, find a suitable spot on your boat's hull. If you have a fiberglass, metal, or wooden hull, drill a hole and mount the transducer so the outside of the fitting is flush against the hull surface. Connect the Humminbird 14 - pin Mix - N - Match cable to your device. When in use, the transducer will give you depth and water - temperature information. It works best in boats 8 meters or longer and in shallower waters less than 1500 feet. Remember, this transducer is designed for hull deadrise between 0° and 7°. For maintenance, keep the transducer clean. Wipe it with a soft cloth after each use to remove any dirt or debris. Avoid using harsh chemicals that could damage the urethane acoustic window. Store it in a dry place when not in use. This way, you can enjoy accurate and detailed sonar information for a long time.
