Blue Sea 4163 SS Push Button Switch - Off-(On) - Red - 10A [4163]

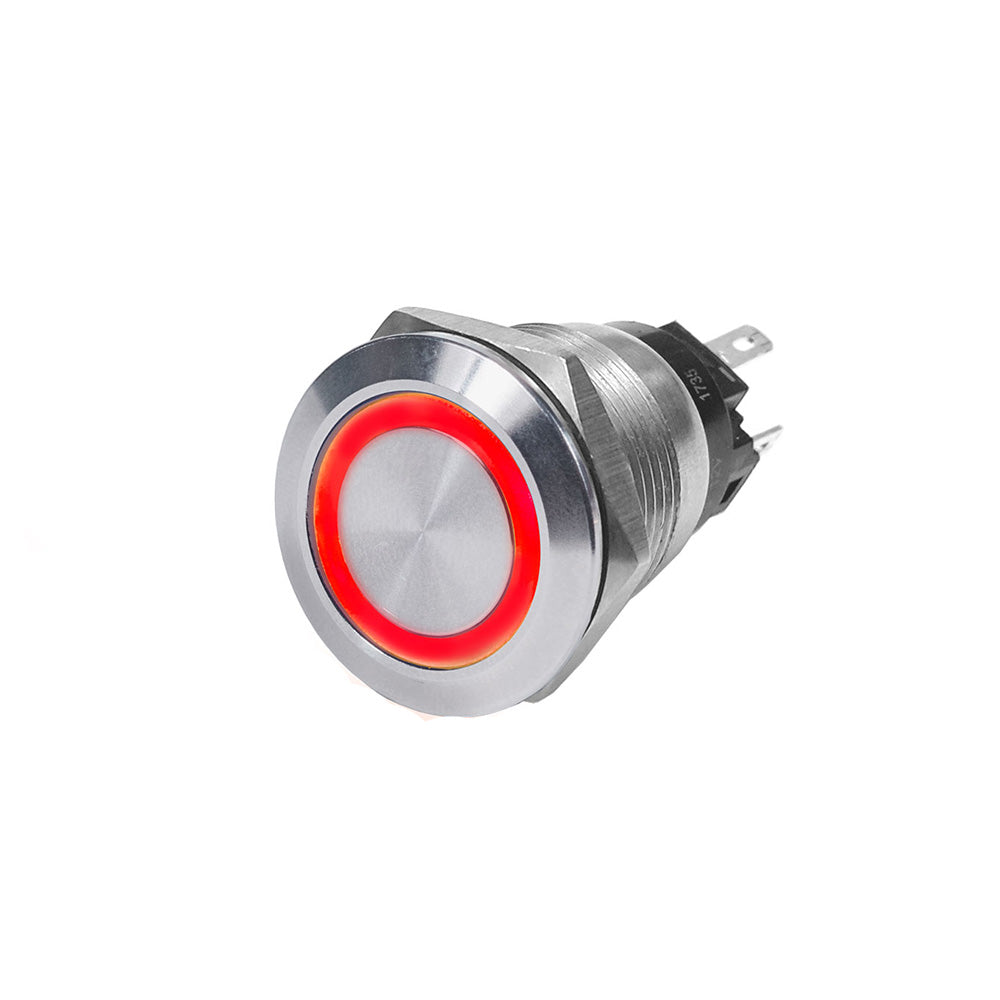

The Blue Sea 4163 is a high - quality push button switch. It comes in a striking red color and can handle a continuous current of 10A. You have the option of Single Pole Double Throw or Single Pole Single Throw configurations, and it can be wired for normally open or normally closed operations. Installation is a breeze with the included.110 - inch quick connects. Specifications include an OFF - (ON) action, 10A amperage at 12V DC, a nominal voltage of 12V DC, and a maximum LED operating current of 20mA. It can operate in temperatures ranging from - 10°C to 70°C and be stored between - 55°C and 85°C. The illumination has independent contacts for LED power, and it has a 19mm mounting hole with 18,000 switching cycles. Termination is via 5 - 0.110 - inch Quick Connect terminals. The switch is stainless in color, with box dimensions of 2'H x 3'W x 5'L and a weight of 0.1 lbs, and it has a UPC of 632085041632. WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more info, visit P65Warnings.ca.gov.

Using this Blue Sea 4163 push button switch is easy. First, choose your preferred wiring option - either normally open or normally closed. Then, use the included.110 - inch quick connects to install it. When operating, make sure the voltage is 12V DC as it's designed for this nominal voltage. Keep in mind that the switch has a maximum LED operating current of 20mA, so don't exceed this. As for temperature, don't use it in conditions lower than - 10°C or higher than 70°C, and store it between - 55°C and 85°C. Also, be aware of the warning about the chemicals it may expose you to. For maintenance, keep it clean and check the connections periodically. If you notice any issues with the 18,000 switching cycles, it might be time to replace the switch.
