Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A [4160]

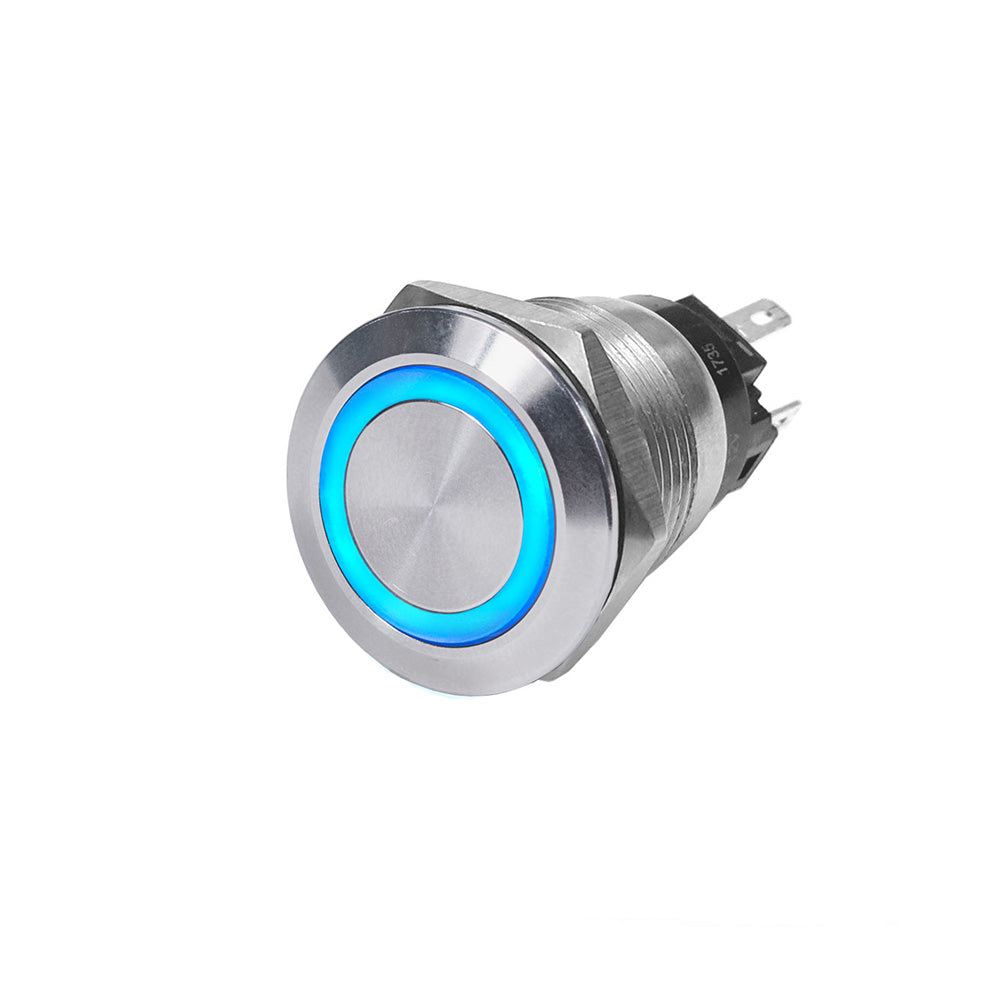

The 4160 SS Push Button Switch is a high - quality electrical switch. It features a blue stainless - steel design. With a 10A continuous current capacity, it can handle various electrical loads. It has two wiring options: Single Pole Double Throw or Single Pole Single Throw, and can be wired for normally open or normally closed configurations. Installation is easy with the included.110 - inch quick connects. Specifications include an OFF - ON action, 10A amperage at 12V DC, a nominal voltage of 12V DC, and a maximum LED operating current of 20mA. It can operate in temperatures ranging from - 10°C to 70°C and be stored between - 55°C and 85°C. The switch has independent illumination with separate contacts for LED power, a 19mm mounting hole, and can withstand 18,000 switching cycles. The termination consists of 5 - 0.110 - inch Quick Connect terminals. The switch comes in a box sized 2'H x 3'W x 5'L and weighs 0.05 lbs, with a UPC of 632085041601. WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp) which may cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Using this 4160 SS Push Button Switch is quite straightforward. First, make sure the power is off. Then, choose the appropriate wiring configuration according to your needs, either Single Pole Double Throw or Single Pole Single Throw. Connect the wires using the included.110 - inch quick connects. You can wire it for normally open or normally closed as per your circuit requirements. When it comes to the LED illumination, use the separate contacts to power it. Note that this product can expose you to harmful chemicals, so always handle it with care. Avoid using it in environments outside the specified temperature range of - 10°C to 70°C for operation and - 55°C to 85°C for storage. For maintenance, keep it clean and check the connections periodically to ensure it functions properly. If you notice any issues, such as a decrease in performance or unusual noises, it may be time to replace the switch.
