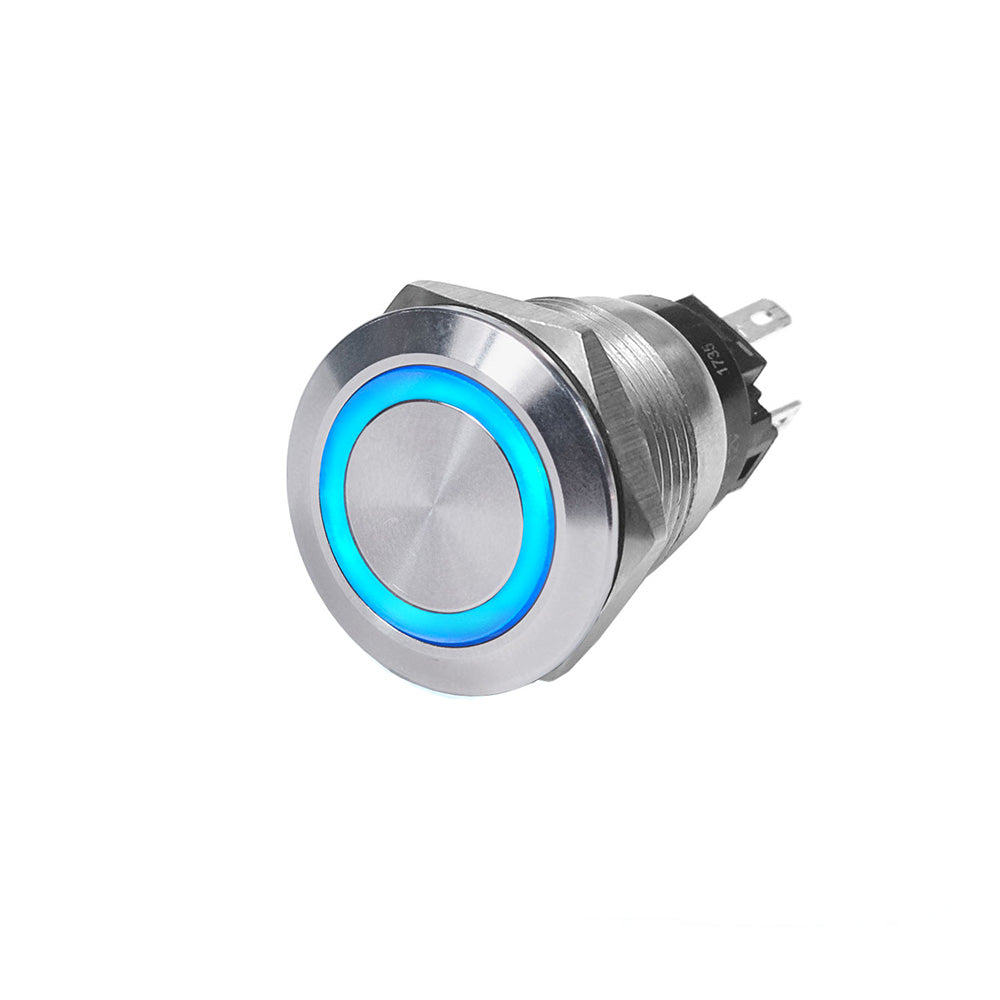

Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A [4161]

The Blue Sea 4161 SS Push Button Switch is a high - quality electrical switch. It has a continuous 10A capacity and can be configured as Single Pole Double Throw or Single Pole Single Throw. You can wire it for normally open or normally closed operation. The switch comes with.110 - inch quick connects in the retail package for easy installation.

Specifications:

• Action: OFF-(ON)
• Amperage: 10A at 12V DC
• Nominal Voltage: 12V DC
• Max LED Operating Current: 20mA
• Min Operating Temp: - 10°C
• Max Operating Temp: 70°C
• Min Storage Temp: - 55°C
• Max Storage Temp: 85°C
• Illumination: Independent with separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 - 0.110 - inch Quick Connect terminals

WARNING: This product exposes you to chemicals like di(2 - ethylhexyl)phthalate (DEHP), known in California to cause cancer, birth defects or reproductive harm. For more info, visit P65Warnings.ca.gov.

More Specs:

• Color: Stainless
• Action: (On)/Off
• Box Dimensions: 2'H x 3'W x 5'L, Weight: 0.1 lbs
• UPC: 632085041618

Using the Blue Sea 4161 stainless steel push - button switch is easy. First, decide whether you want a Single Pole Double Throw or Single Pole Single Throw configuration and wire it for normally open or normally closed as needed. The included.110 - inch quick connects make installation a breeze. Just connect them to the appropriate terminals. When using the switch, make sure the voltage is 12V DC and the current doesn't exceed 10A. Also, keep in mind the operating temperature range is from - 10°C to 70°C. For storage, the temperature should be between - 55°C and 85°C. As a safety note, this product contains chemicals that can be harmful, so avoid direct contact. To maintain the switch, keep it clean and dry. Check the connections periodically to ensure they are secure. If you notice any signs of wear or malfunction, it's best to replace the switch.
