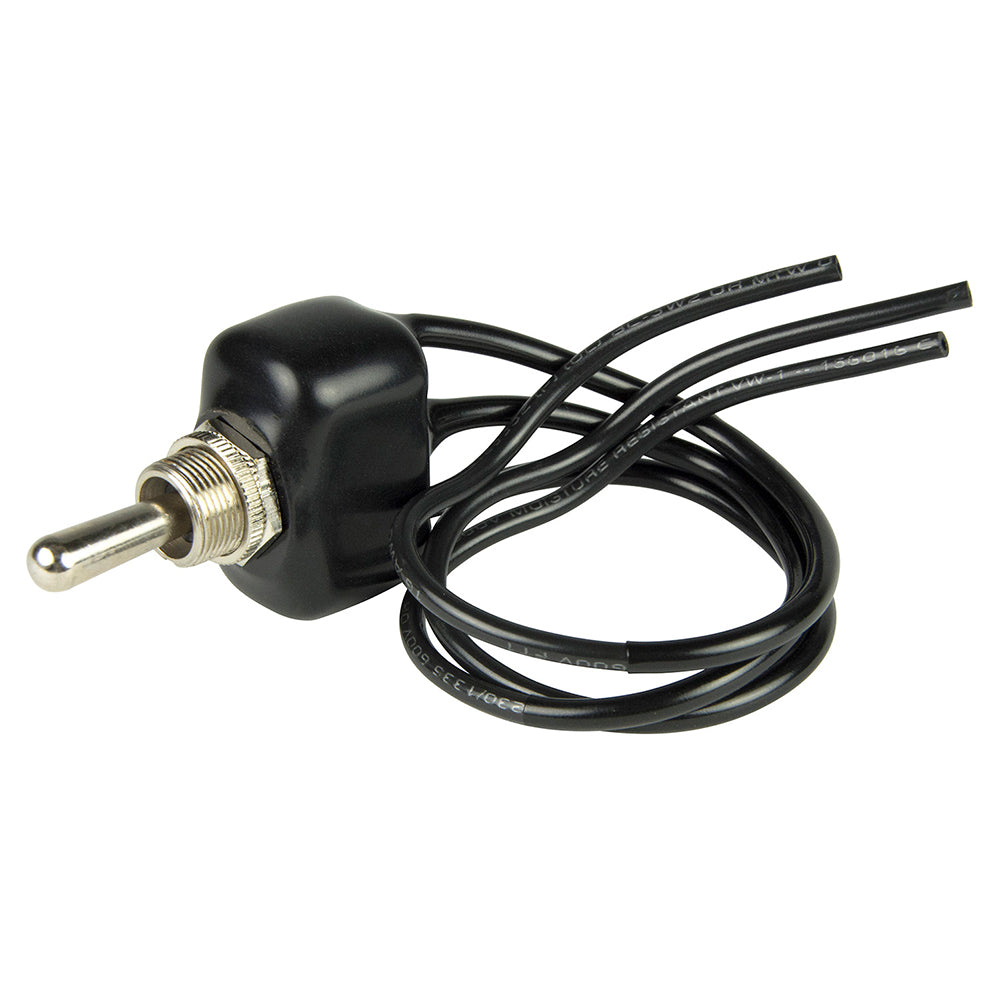

BEP SPST PVC Coated Toggle Switch - OFF/(ON) [1002003]

12V/24V DC PVC Coated SPST Toggle Switch - OFF/(ON)

This single pole, single throw toggle switch is great for turning one circuit on and off. It's commonly used for intermittent horn or windshield wiper control. The switch comes with a PVC coating for added durability.

Features:

• Nominal voltage: 12V/24V DC
• Rated for 25A at 12V DC and 15A at 24V DC
• 8' 16 AWG wire lead terminals
• Mounting stem 15/32' fits panels up to 1/4' thick
• Same as Cole Hersee part number 55020 - 04

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp), which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Action: (On)/Off
• Throw/Pole: SPST
• Box Dimensions: 2'H x 3'W x 5'L, Weight: 0.1 lbs
• UPC: 870216046624

Using this toggle switch is easy. First, make sure the power is off. Then, connect the 8' 16 AWG wire lead terminals to the appropriate circuit. The mounting stem, which is 15/32', can fit panels up to 1/4' thick, so you can install it in the right place. When you're ready, turn the switch to control your circuit. It can handle 25A at 12V DC and 15A at 24V DC. Just a reminder, this product has a warning about certain chemicals, so follow the instructions on P65Warnings.ca.gov. For maintenance, keep it clean and dry. If you notice any issues, check the connections first.
