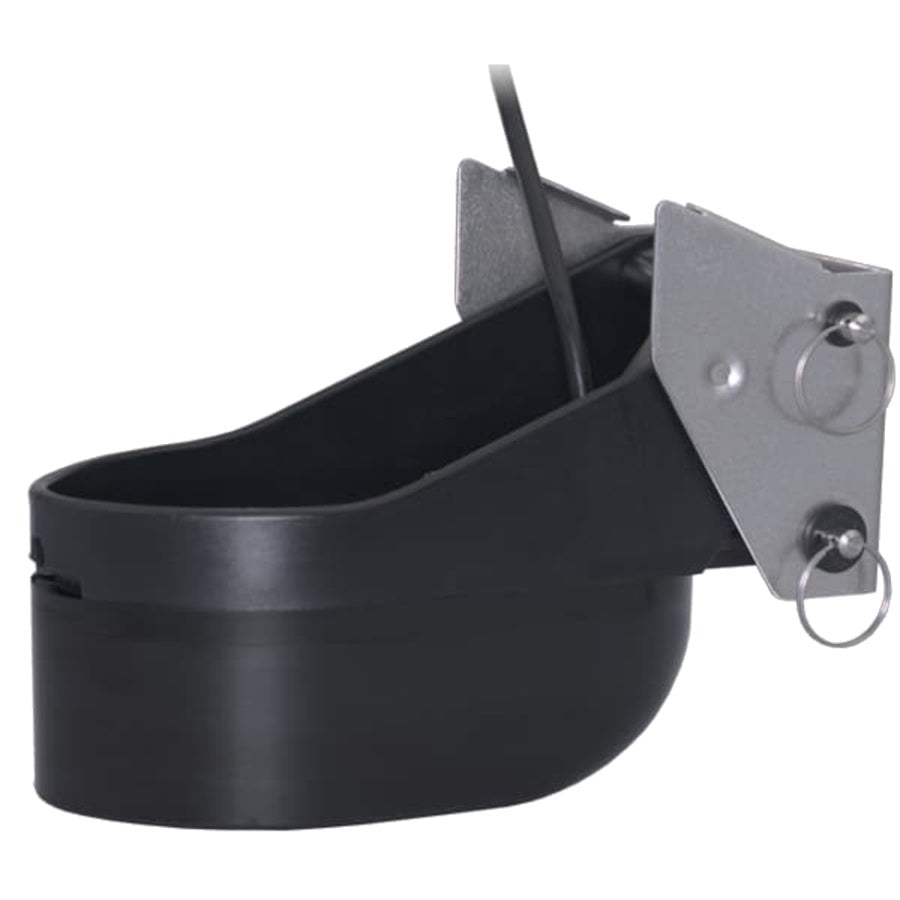

AIRMAR TM265C-LM 1kW Low Medium CHIRP With Mix-N-Match Plug

The Airmar TM265C-LM-MM is an amazing transom mount transducer. It offers depth and fast - response water - temperature sensing. With 1 kW of power, it delivers excellent performance from deep to mid - depth waters. The low frequency range of 42 to 65 kHz has a 25° to 16° port - starboard beamwidth and can reach a maximum depth of 914 m (3000'). The medium frequency range of 85 to 135 kHz has a 16° to 11° beamwidth and a maximum depth of 457 m (1500'). It has a total bandwidth of 73 kHz from one transducer, covering popular fishing frequencies like 50, 88, and 107 kHz. The transom mount stainless steel bracket allows for easy installation on all types of boats. Its SEALCAST™ seamless urethane housing ensures long - term use in water. It also features patented Xducer ID® technology. Compared to traditional fish finders, Chirp technology in this transducer transmits 10 to 1,000 times more sound energy into the water. Specifically designed for small boats (25' - 40'), it's a great choice for commercial fishermen, charter captains, and tournament anglers. Specifications include cable length of 10 m (33'), urethane/stainless bracket housing, transom mounting style, 1 kW power rating, CHIRP - Ready Dual - Band, and depth and temperature functions with a transom angle of 3° to 21°. The package includes the TM265C - LM - MM and transom mount hardware.

Using your Airmar TM265C - LM - MM transducer is a breeze. First, install it on your boat's transom using the included stainless - steel bracket and hardware. Make sure the transom angle is between 3° and 21° for optimal performance. Once installed, connect the cable to your fish - finder device. When you're out on the water, the transducer will start sensing water depth and temperature right away. It's important to note that this transducer is designed for small boats between 25' and 40'. For maintenance, regularly check the urethane housing for any signs of damage. If there are minor scratches, you can clean the housing with a mild soap and water solution. Avoid using harsh chemicals as they may damage the housing. When not in use, store the transducer in a cool, dry place. This will help ensure its long - term performance and durability.
