AIRMAR TM265C-LM 1kW Low Medium CHIRP Garmin 12-Pin Cable

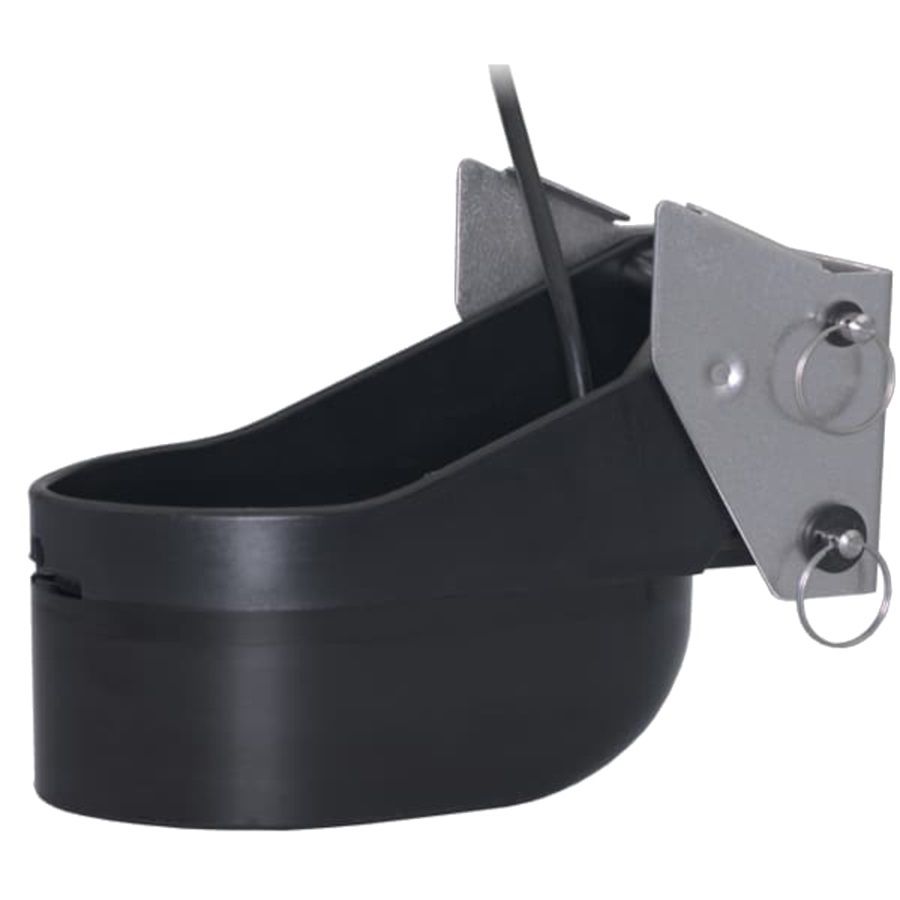

The Airmar TM265C-LM-12G is a top - notch transom - mount transducer paired with a Garmin 12 - Pin Mix - N - Match Cable. It offers depth and fast - response water - temperature sensing. With 1 kW of power, it performs great from deep to mid - depth waters. The low frequency ranges from 42 to 65 kHz with a 25° to 16° port - starboard beamwidth and can reach a maximum depth of 914 m (3000'). The medium frequency is 85 to 135 kHz with a 16° to 11° beamwidth and a max depth of 457 m (1500'). It has a total bandwidth of 73 kHz from one transducer, covering popular fishing frequencies like 50, 88, and 107 kHz. The transom mount stainless steel bracket allows installation on boats of all propulsion types. Its SEALCAST™ seamless urethane housing ensures long - lasting use in water, and it comes with patented Xducer ID® technology. Chirp technology in this transducer transmits 10 to 1,000 times more sound energy into the water compared to traditional fish finders. Specifically designed for 25' - 40' small boats, the TM265LH Chirps across specific bandwidths. The package includes the TM265C - LM - MM, transom mount hardware, and an MMC - 12G Cable.

Using your Airmar TM265C-LM transducer is a breeze. First, use the transom mount stainless steel bracket to install it on your boat. Make sure the transom angle is between 3° and 21°. Connect the Garmin 12 - Pin cable properly. Once installed, it will start sensing water depth and temperature. When you're out fishing, take advantage of the wide frequency range to detect fish at different depths. As for maintenance, rinse the transducer with fresh water after each use to prevent salt and debris build - up. Check the SEALCAST™ urethane housing regularly for any signs of damage. If you notice any issues with the cable or the bracket, have them inspected promptly. Keep it in a dry place when not in use to extend its lifespan.
