Airmar B75C-0-M 0d Tilt Medium CHIRP Si-Tex 8-Pin Cable

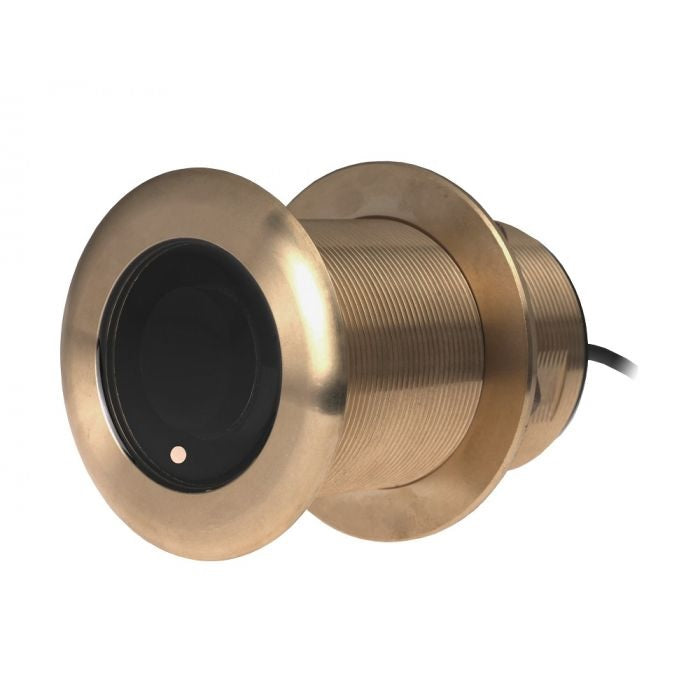

The Airmar B75C-0-M is a top - notch depth and fast - response water - temperature sensor. It's a medium CHIRP bronze thru - hull transducer with a Si - Tex 8 - Pin Mix - N - Match cable. Model B75C - 0 - M - BB offers 600 W of power, reaching a maximum depth of 900 feet. With a medium frequency range of 80 to 130 kHz and a 24° to 16° beamwidth, it provides excellent shallow - water performance, detailed bottom views, and better deep - water results than high - frequency bands. Its low - profile, thru - hull housing, when installed correctly, gives great display resolution at speed. It has a bronze housing suitable for fiberglass or wood hulls and features patented Xducer ID® technology. This transducer is ideal for smaller boats like center consoles, delivering up to 50 kHz of total bandwidth in one installation. When installed almost flush to the hull, the tilted element corrects for hull deadrise, ensuring accurate depth readings. Specifications include a deadrise range of 0° to 7°, a 70 mm (2 - 13/16') hole size, and a bronze housing. The package includes B75C - 0 - M - MM and an MMC - BB Cable.

Using the Airmar B75C-0-M transducer is easy. First, make sure you install it almost flush to the hull. This will correct for the hull deadrise and give you accurate depth readings. When installing, note that the hole size should be 70 mm (2 - 13/16'). The transducer is suitable for fiberglass or wood hulls, so check your boat's material before installation. Once installed, it will start providing depth and fast - response water - temperature data. Remember, it has a maximum depth limit of 900 feet, so don't expect accurate readings beyond that. For maintenance, keep the transducer clean. You can use a soft cloth to wipe it regularly. Avoid using harsh chemicals as they might damage the bronze housing. Check the cable connections periodically to ensure they are secure. If you notice any issues with the display resolution or depth readings, double - check the installation and the cable connections. This transducer is designed for smaller boats like center consoles, so use it accordingly for the best performance.
