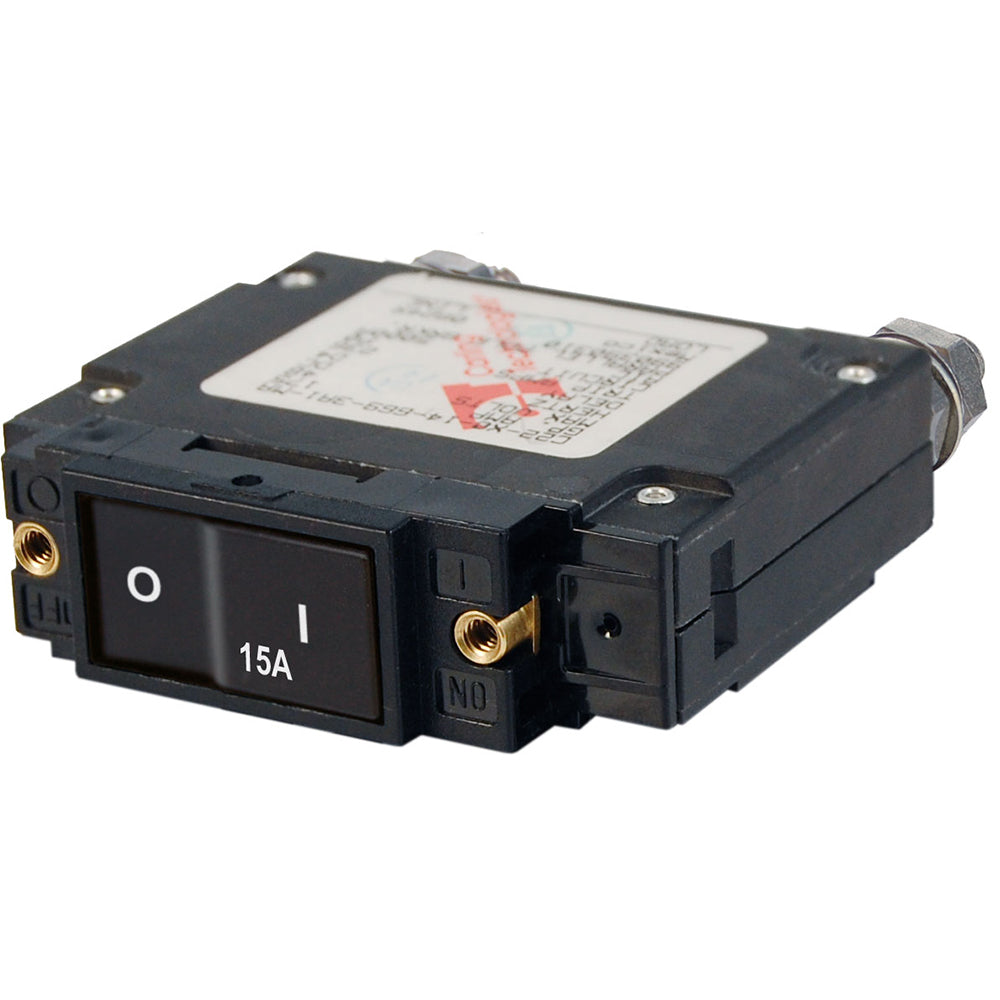

Blue Sea 7542 C-Series Flat Rocker Circuit Breaker - Single Pole - 15A [7542]

Blue Sea C-Series Flat Rocker Circuit Breaker - 15A Single Pole

Key Features:

• The rocker actuator sits flush when 'ON', preventing accidental switching.
• A colored actuator clearly shows the 'OFF' position.
• Offers overcurrent protection for inverters, bow thrusters, and windlasses.
• Combines switching and circuit protection in one handy device.
• It's 'Trip Free', so it can't be forced closed after tripping.
• Ignition protected, making it safe for gasoline-powered boats.

Specifications:

• Amperage: 15A AC / 15A DC
• Actuator Style: Flat Rocker
• Poles: 1
• Max Voltage: 240V AC / 48V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
• Min Operating Temp: -40°C
• Max Operating Temp: 85°C
• Mounting Screw: #6 - 32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Switching Cycles: 10000
• Terminal Stud: 1/4 - 20 Tin - Plated Brass
• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 15a
• Box Dimensions: 2'H x 3'W x 4'L WT: 0.4 lbs
• UPC: 632085075422

Using this Blue Sea C-Series circuit breaker is straightforward. First, make sure your device is turned off. Mount the breaker using the #6 - 32 stainless steel screws and follow the specified torque of 6 in-lb (0.68 Nm). Connect the wires to the 1/4 - 20 tin - plated brass terminal studs, tightening them to 35 in-lb (3.95 Nm). When the breaker is in use, you can easily tell if it's 'ON' or 'OFF' by the position and color of the actuator. If the breaker trips, it's protecting your equipment from overcurrent. Don't try to force it closed; instead, check for any issues with your connected devices. As for maintenance, keep it clean and dry. Avoid exposing it to temperatures outside the -40°C to 85°C range. Also, be aware of the warning about potential chemical exposure. If you have any concerns, refer to P65Warnings.ca.gov for more information.
