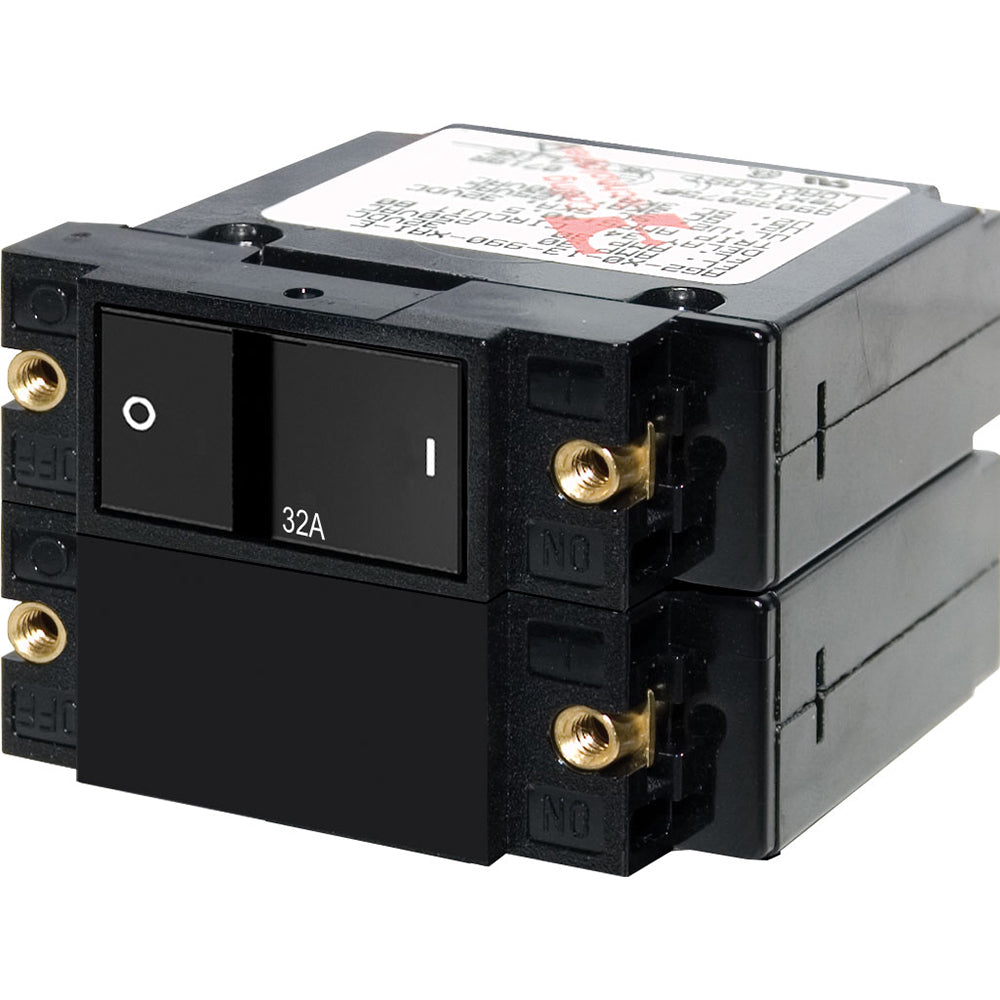

Blue Sea 7415 A-Series Flat Rocker Circuit Breaker - Double Pole - 32A [7415]

Blue Sea 7415 A-Series Flat Rocker Circuit Breaker - Double Pole - 32A

Great Features:

• The color actuator clearly shows the 'OFF' position

• The 'Trip Free' design ensures safety as it can't be held 'ON' during a fault current

• International ON/OFF symbols allow for vertical or horizontal mounting

Detailed Specifications:

• Amperage: 32A AC / 32A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Max Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Min Operating Temp: -40° C

• Max Operating Temp: 85° C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Screw Terminal Torque: 14 in-lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10-32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals like di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more info go to P65Warnings.ca.gov.

More Specs:

• Amperage: 32a
• Box Dimensions: 2'H x 3'W x 3'L WT: 1 lbs
• UPC: 632085074159

Using this Blue Sea circuit breaker is easy. First, make sure the power is off before installation. You can mount it either vertically or horizontally thanks to the international ON/OFF symbols. Just use the #6 - 32 stainless - steel mounting screws and tighten them with a torque of 6 in - lb (0.68 Nm). Connect the wires using the #10 - 32 stainless - steel terminal screws and tighten them to 14 in - lb (1.58 Nm). When in use, keep an eye on the color actuator. If it shows the 'OFF' position, something might be wrong. Remember, the 'Trip Free' design is there to protect you. If there's a fault current, it'll automatically turn off and can't be forced 'ON'. This breaker can work in temperatures from -40°C to 85°C. But try to keep it in a normal environment to extend its lifespan. It has a switching cycle of 10,000, so it should last a while. Be aware that this product contains chemicals that can be harmful. Refer to P65Warnings.ca.gov for more information. Also, perform regular visual checks to ensure there are no signs of damage or wear. If you notice any issues, replace the breaker as soon as possible.
