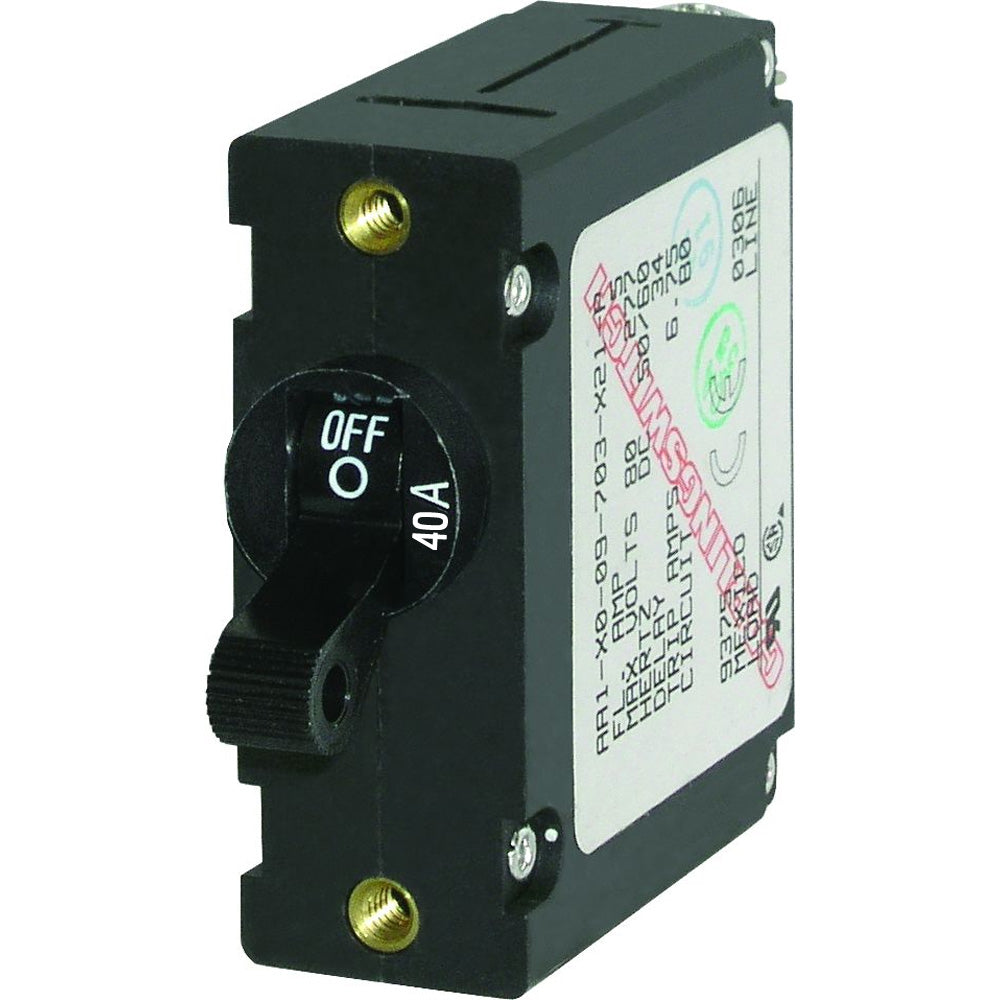

Blue Sea 7224 AC / DC Single Pole Magnetic World Circuit Breaker - 40 Amp [7224]

The Blue Sea 7224 AC/DC Single Pole Magnetic World Circuit Breaker is a top - notch electrical device. It meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada. With a black color and 40 - Amp amperage, it features a standard delay. This breaker is the industry standard for Blue Sea Systems electrical panels. It combines switching and circuit protection in one unit. The single - pole Quick Trip models are perfect for electronics protection, and its 'Trip Free' design ensures safety during fault current. The Circuit Breaker Type is Magnetic Hydraulic - Trip Free, with a maximum voltage of 277 Volts AC / 65 Volts DC and 10,000 rated switch cycles at rated amperage and voltage. Note that this product can expose you to di(2 - ethylhexyl)phthalate (dehp), a chemical known to cause cancer, birth defects or other reproductive harm in California. For details, visit P65Warnings.ca.gov. Specifications include 40a amperage, box dimensions of 1'H x 2'W x 4'L and a weight of 0.15 lbs, and a UPC of 632085072247.

Using this Blue Sea circuit breaker is easy. First, make sure the power is off before installation. Locate it in an appropriate place in your electrical panel. Connect the wires according to the voltage and amperage requirements. When the breaker trips, it's a sign of an over - current situation. Don't try to force it back on immediately. Check for any short - circuits or overloaded devices. As for maintenance, regularly inspect the breaker for any signs of damage like cracks or burn marks. Keep it clean and dry. Remember, this product contains chemicals that can be harmful, so handle it with care and always follow the safety warnings.
