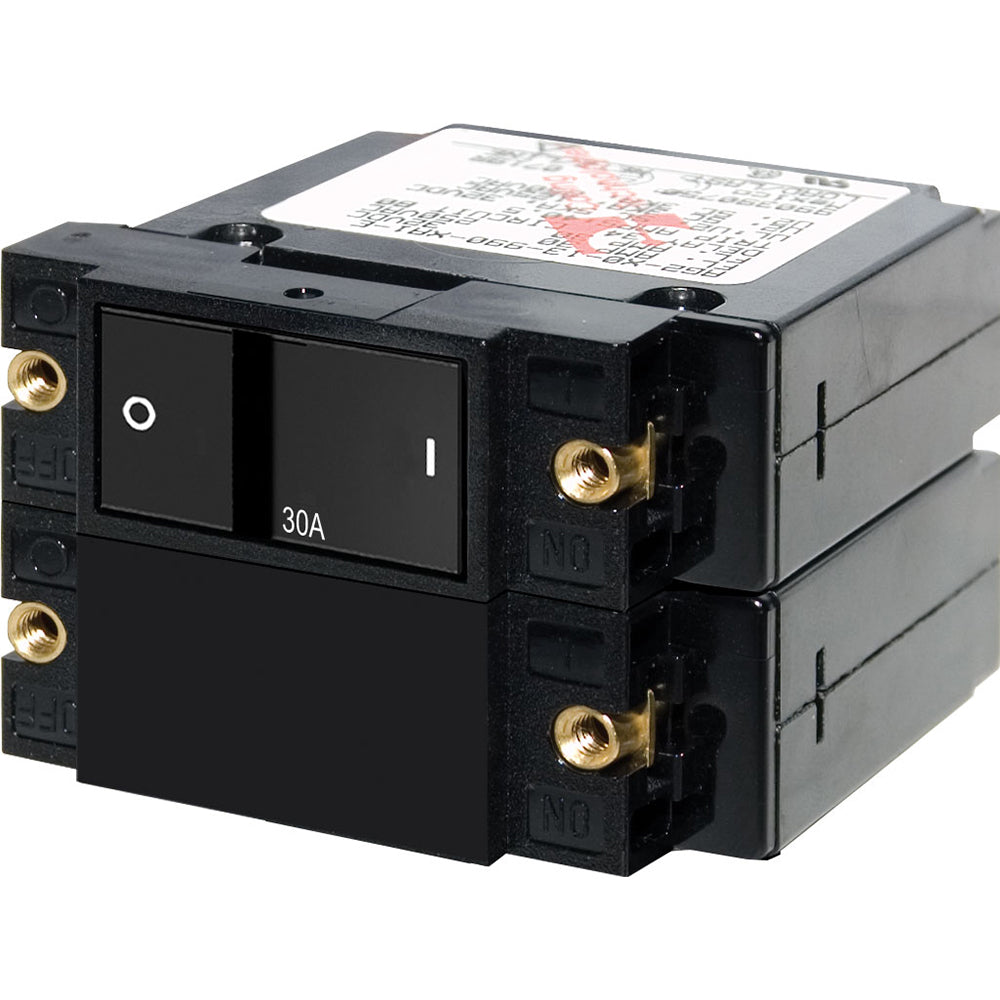

Blue Sea 7414 A-Series Flat Rocker Circuit Breaker - Double Pole - 30A [7414]

Discover the Blue Sea 7414 A-Series Flat Rocker Circuit Breaker. This double-pole breaker with 30A capacity is a must - have. The color actuator clearly shows the 'OFF' position, making it easy to monitor. Its 'Trip Free' design ensures safety during fault current. The international ON/OFF symbols allow for vertical or horizontal mounting. With an amperage of 30A AC/30A DC, it can handle different power needs. It has a maximum voltage of 120V AC/240V AC/32V DC. The magnetic hydraulic - trip free circuit breaker type offers reliable performance. It can operate in a temperature range from -40°C to 85°C. The breaker comes with #6 - 32 stainless - steel mounting screws and #10 - 32 stainless - steel terminal screws. It has a long lifespan with 10000 switching cycles and weighs only 0.38lb (0.17 kg). WARNING: This product exposes you to chemicals like di(2 - ethylhexyl)phthalate (dehp) known to cause cancer, birth defects or other reproductive harm. Check P65Warnings.ca.gov for more info. It also has box dimensions of 2'H x 3'W x 4'L and weighs 0.35 lbs with UPC 632085074142.

Using your Blue Sea 7414 A - Series Flat Rocker Circuit Breaker is straightforward. First, choose whether you want to mount it vertically or horizontally according to your space and convenience, thanks to the international ON/OFF symbols. Make sure to use the #6 - 32 stainless - steel mounting screws and tighten them to a torque of 6 in - lb (0.68 Nm). Connect the wires using the #10 - 32 stainless - steel terminal screws and tighten them to 14 in - lb (1.58 Nm). When the color actuator shows the 'OFF' position, you know the breaker is off. Remember, this breaker has a 'Trip Free' design, so it will automatically trip during a fault current. As for maintenance, keep it clean and check for any signs of wear or damage regularly. It can operate from -40°C to 85°C, but try to keep it within a more stable temperature range for better performance. Also, be aware that this product can expose you to harmful chemicals, so follow the warnings and check P65Warnings.ca.gov for more information.
