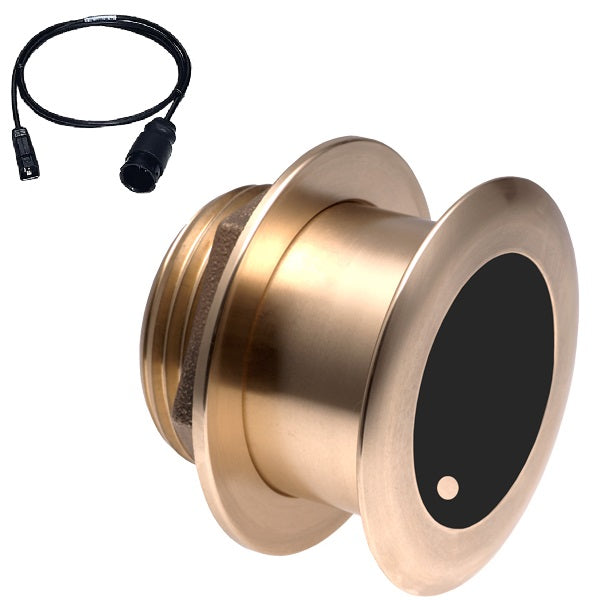

Airmar B175C-12-H Thru Hull With 9-Pin Humminbird MM Cable

Airmar B175C High Frequency CHIRP Transducer with 12° Tilted Element and Humminbird 9-Pin M&M Chirp Cable (1m). Model: B175-C-12-H-HB. This transducer offers high CHIRP from 130 kHz to 210 kHz with a 15° to 9° beamwidth, providing 80 kHz of total bandwidth. It's suitable for fiberglass or wood hulls up to 11 m (36'). With a depth and fast - response water - temperature sensor and a bronze housing, it's ideal for all types of fishermen. Whether you're a commercial pro, charter captain, or tournament angler, enjoy 5 to 10 times greater detail and resolution for bottom detection down to 3,000m (10,000'). One installation saves you time and money. It terminates with an Airmar Mix and Max connector, which you can cut off if needed. Specifications: Hull Deadrise 8° to 15°, Acoustic window Urethane, Frequency 130 - 210 kHz. In the box: B175 High Frequency Transducer and Humminbird 9 - Pin M&M Chirp Cable (1m).

Using the Airmar B175C-12-H Thru Hull Transducer is easy. First, make sure your boat's hull is fiberglass or wood and the hull deadrise is between 8° and 15°. Install the transducer following the provided instructions, connecting the Humminbird 9-Pin M&M Chirp Cable. When using it, you'll be able to get great bottom detection details. Just turn it on and let it do its job. Remember, this transducer is for boats up to 11 m (36') in size. For maintenance, keep the transducer clean. You can gently wipe the acoustic window made of urethane with a soft cloth. If you don't need the Airmar Mix and Max connector, you can cut it off, but be careful not to damage the cable. Also, store the transducer in a dry place when not in use to prolong its lifespan.
