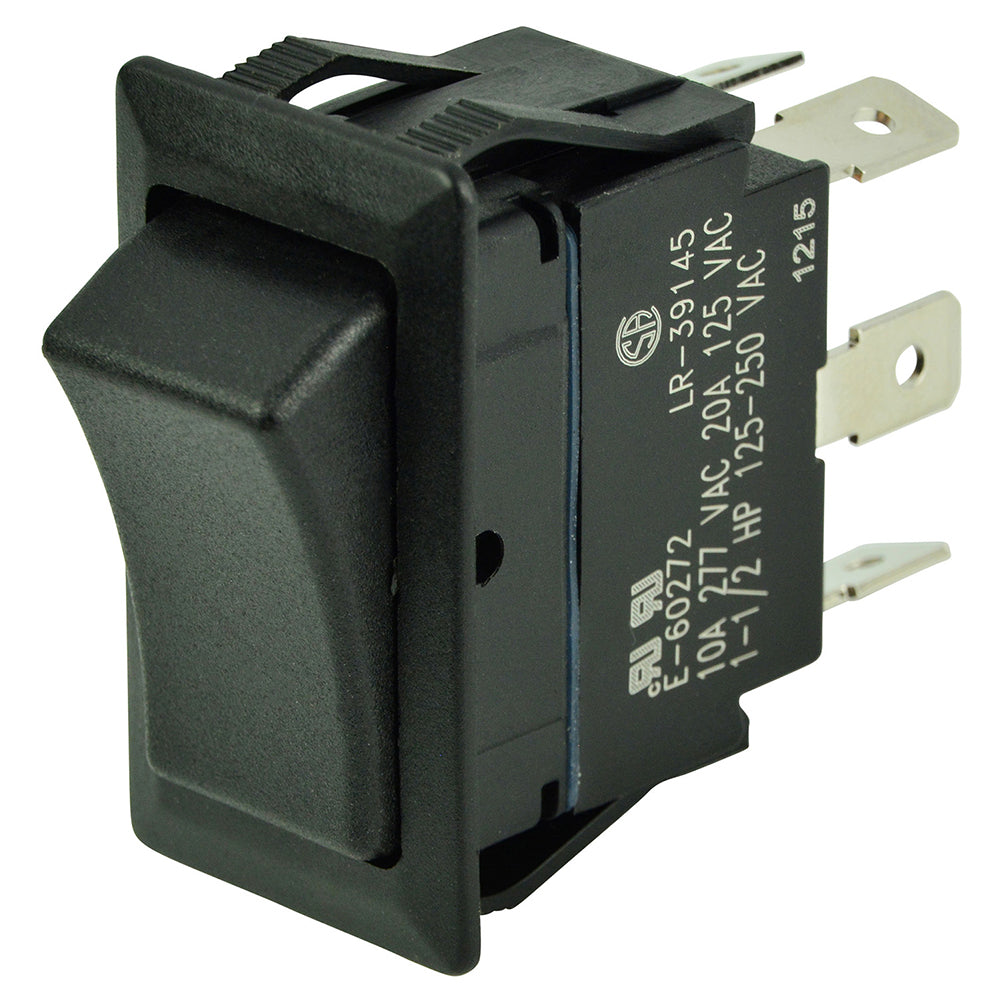

BEP DPDT Rocker Switch - 12V/24V - ON/OFF/ON [1001712]

12V/24V ON/OFF/ON DPDT Rocker Switch

This double pole, double throw switch lets you turn two out of four circuits on simultaneously. It's a great choice for various electrical setups.

Features:

• 12V DC nominal voltage
• Rated for 25A at 12V DC, ensuring reliable performance
• Six 1/4' blade terminals for easy connections
• Snap-in mounting that fits panel holes 1.45' x .83' in panels .093' to .187' thick
• Same as Cole Hersee part number 58027 - 07, a mark of quality

WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects or other reproductive harm. For more info, visit P65Warnings.ca.gov.

Specifications:

• Throw/Pole: DPDT
• Color: Black
• Action: On/Off/On
• Box Dimensions: 2'H x 3'W x 5'L, Weight: 0.1 lbs
• UPC: 870216046334

Using this BEP DPDT rocker switch is easy. First, make sure your device is powered off. Then, connect the wires to the six 1/4' blade terminals according to your circuit needs. Snap the switch into a panel hole that's 1.45' x .83' in a panel between .093' and .187' thick. When you're ready, turn on your device and use the switch to control two out of four circuits. Remember, this switch has a nominal voltage of 12V DC and is rated for 25A at 12V DC, so don't exceed these limits. Also, be aware of the warning about the chemicals it may expose you to. To maintain it, keep it clean and dry. If you notice any issues like loose connections or abnormal operation, turn off the power and check the switch and connections.
