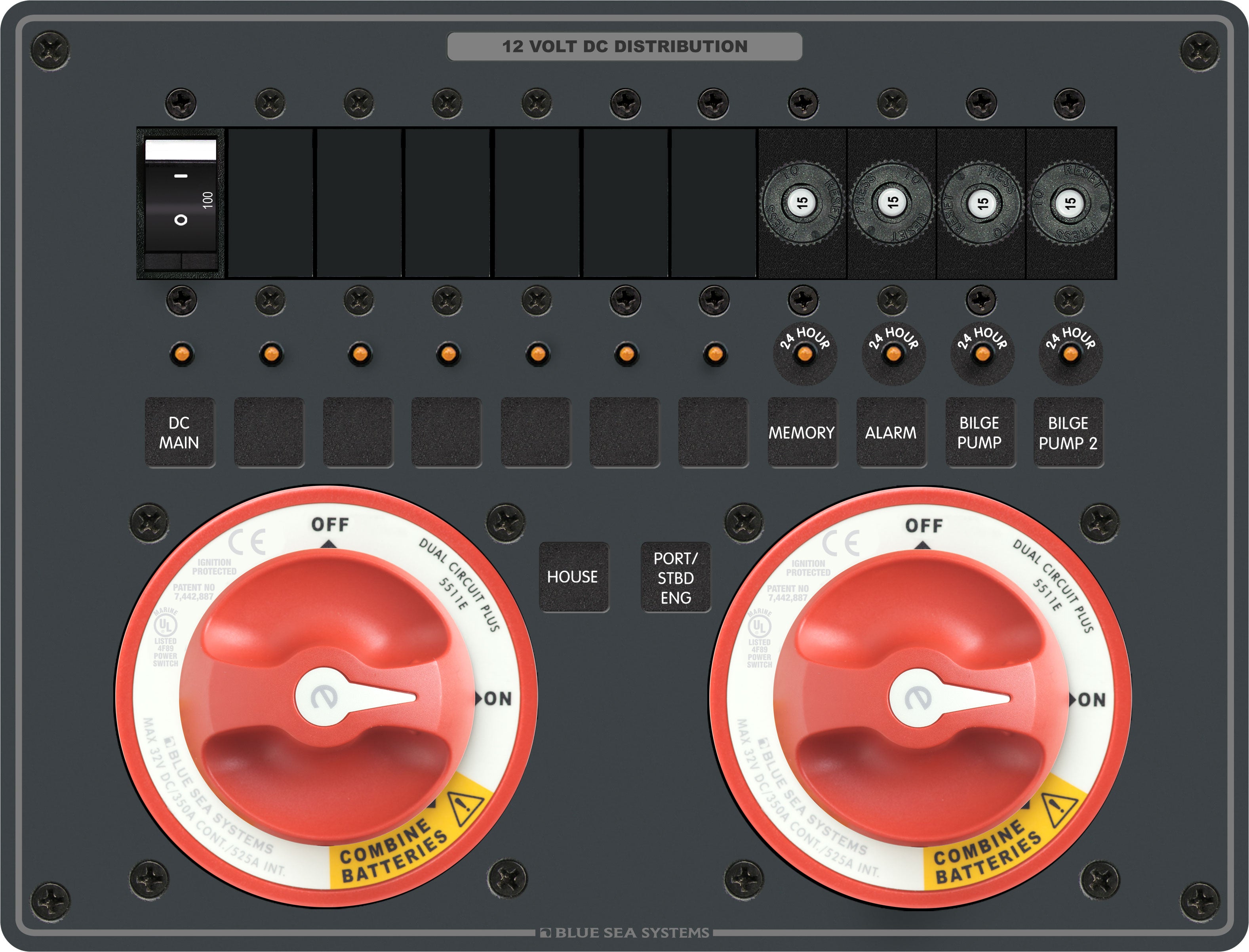

Blue Sea Systems Triple Battery Bank Management Panel (Model: 8693 - BSS)
It effectively isolates the engine circuit from the house circuit. In emergencies, it enables a cross - connect between isolated battery banks. Moreover, it safeguards electronics from the sags and spikes caused by engine cranking.
Specifications| Positions | 11 |
| Nominal Voltage | 12V DC, 24V DC |
| Maximum Voltage | 32V DC |
| Continuous Rating | 350A |
| Intermittent Rating | 525A (5 min) |
| Cranking Rating 10 sec | 1000A |
| Cranking Rating 1 min | 750A |
| Height | 8.00in (203.2 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 4.42lb (2 kg) |
Using this Blue Sea triple battery bank management panel is straightforward. First, connect it to your battery banks according to the specified nominal voltage (either 12V DC or 24V DC). When in normal operation, it will automatically isolate the engine circuit from the house circuit. In case of an emergency, you can use the cross - connect feature to link the isolated battery banks. Be aware that the panel has different current ratings for continuous, intermittent, and cranking operations. Don't exceed the maximum voltage of 32V DC. For maintenance, keep it clean and dry. Regularly check the connections to ensure they are tight and free from corrosion. If you notice any issues, such as abnormal heat or unusual noises, stop using it immediately and seek professional help.
