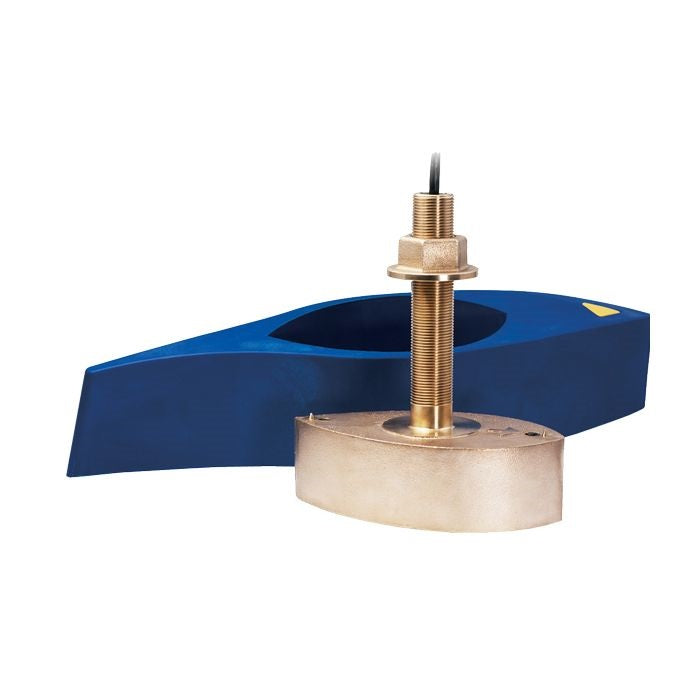

Airmar B265C-LH Bronze TH Low/High CHIRP Furuno 12-Pin Mix-N-Match

The Airmar B265C-LH is a top - notch bronze thru - hull transducer with a Furuno 12 - pin mix - n - match cable. Model B265LH - 12F offers amazing features. It can sense depth and water temperature quickly. With 1 kW of power, it performs superbly in deep water. The low - frequency range from 42 to 65 kHz has a 25° to 16° beamwidth and can reach a maximum depth of 914 m (3000'), while the high - frequency range from 130 to 210 kHz has a 10° to 6° beamwidth and a max depth of 304 m (1000'). It provides a total bandwidth of 103 kHz from one transducer, covering popular fishing frequencies like 50 and 200 kHz. The bronze housing with a high - performance fairing ensures great high - speed performance, and it uses the patented Xducer ID® technology. Different fish species are detected best at specific frequencies, and this transducer includes all the relevant frequencies for better fish detection. It has a seven - element, low - frequency array for deep - water performance and a high - frequency ceramic for pinpointing fish in structure. The high - performance fairing boosts broadband performance at speeds over 30 knots (34 MPH). Specifications include a 9 m (30') cable, low - high frequency bands, and more. The package includes the B265C - LH - MM transducer, a high - speed fairing block, a bolt kit, and an MMC - 12F cable.

Using the Airmar B265C - LH transducer is easy. First, mount it through the hull with the provided high - speed fairing block and use the bolt kit to secure it properly. Make sure the max deadrise is up to 20° with the fairing. Connect the MMC - 12F cable to your compatible system. When using it for fishing, you can adjust between the low and high frequencies according to the depth and the type of fish you're targeting. For deep - water fishing, use the low - frequency range. For detecting fish in structures, switch to the high - frequency setting. As for maintenance, keep the transducer clean. After each use, rinse it with fresh water to remove any salt, dirt, or debris. Check the cable regularly for any signs of damage. If you notice any issues, don't try to repair it yourself but contact a professional. Also, store it in a dry place when not in use to prevent corrosion of the bronze housing.
