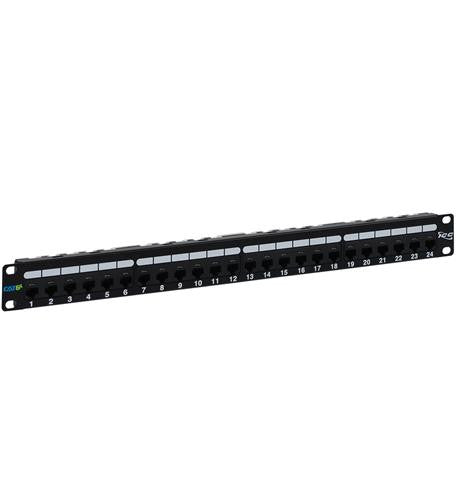

This 24-port 10G 6A 110-type patch panel is a top - notch choice for high - bandwidth networks. Vertical 110 - Type IDC connections minimize Alien Crosstalk (ANXT). It features enhanced crosstalk cancellation and low return loss, meeting high - speed network needs. It surpasses ANSI/TIA - 568 CAT 6A (10G) hardware rating requirements. The 110 - Type IDC termination speeds up installation and improves wire retention. All modular contacts have 50 micro - inch gold plating for corrosion protection. It can be mounted on standard 19 - inch racks. It supports T568A or T568B wiring, but is not compatible with 110 - type patch plugs. It's UL® listed for safety.
Using this patch panel is easy. First, decide on either the T568A or T568B wiring scheme according to your network needs. Then, use the 110 - Type IDC termination method to connect the wires. This will not only save you time during installation but also keep the wires firmly in place. Mount the panel on a standard 19 - inch rack. Remember, it won't work with 110 - type patch plugs, so use the appropriate ones. For maintenance, keep it in a dry and clean environment. Since the modular contacts are gold - plated, they're resistant to corrosion, but try to avoid exposing it to excessive moisture. Regularly check the connections to make sure everything is working properly.
