Blue Sea Short Stop 30 Amp Circuit Breaker Marine Grade

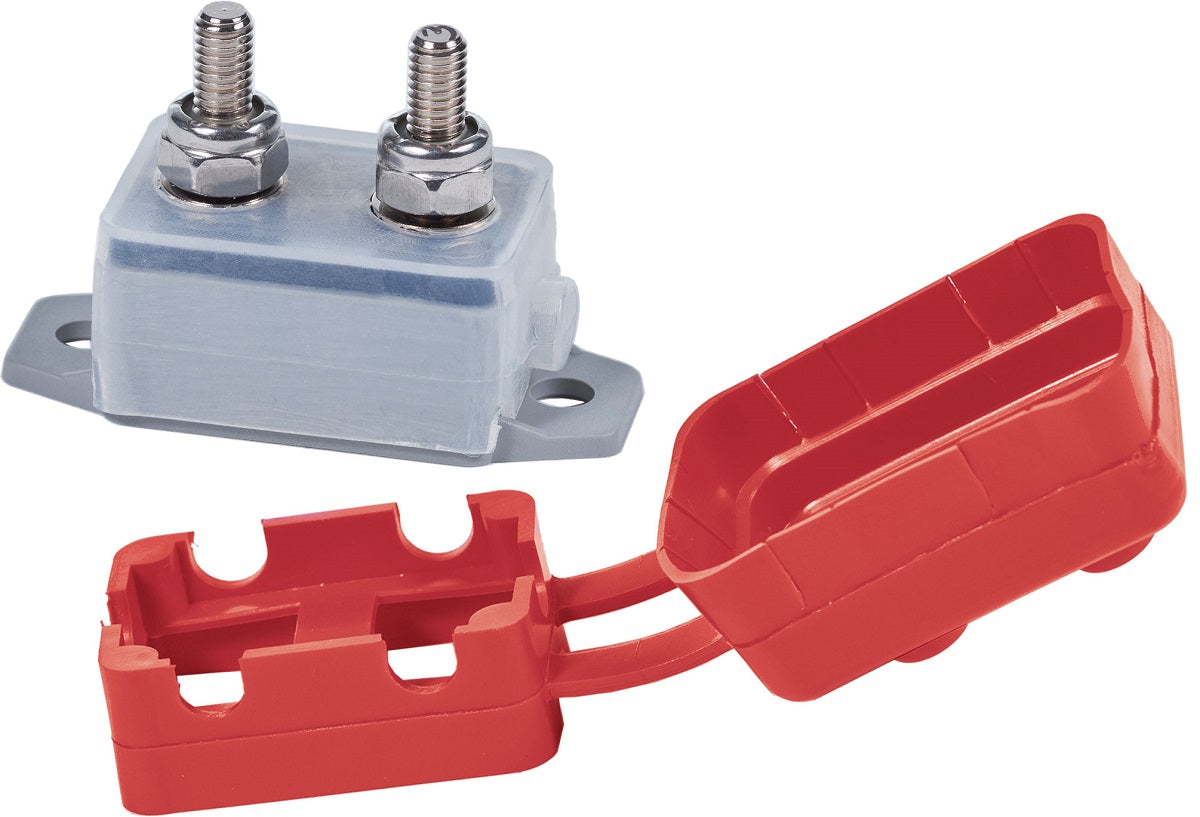

Blue Sea Systems presents this high - quality 30A Marine Grade Short Stop Circuit Breaker, model 7155 - BSS. It's made of corrosion - resistant materials, perfect for harsh marine environments. The IP64 water - resistant boot keeps out dust and splashing water. It features a push - to - reset operation, disconnecting only when tripped. Stainless steel lock nuts ensure secure connections. A red insulating boot comes with the retail product. Specifications: 30A DC amperage, 28vDC maximum voltage, thermal trip and manual reset type, #10 - 32 terminal stud, 20 in - lb (2.26 Nm) terminal stud torque, 2500A @ 28V DC interrupt capacity, operating temperature from - 10°C to 60°C. What's in the box: a 30A Short Stop Circuit Breaker and a Short Stop Circuit Breaker Boot.

Using this 30A Marine Grade Short Stop Circuit Breaker is easy. First, make sure the power is off before installation. Connect the circuit breaker to your system using the #10 - 32 terminal stud and tighten it with a torque of 20 in - lb (2.26 Nm). When the circuit trips, simply press the push - to - reset button. Remember, this breaker is designed for 30A DC and a maximum voltage of 28vDC, so don't exceed these limits. Keep it in a temperature range between - 10°C and 60°C. To maintain it, check the corrosion - resistant materials regularly for any signs of wear. Clean the IP64 water - resistant boot to ensure it continues to protect against dust and water. If you're using the retail product, make sure the red insulating boot is in place for extra safety.
