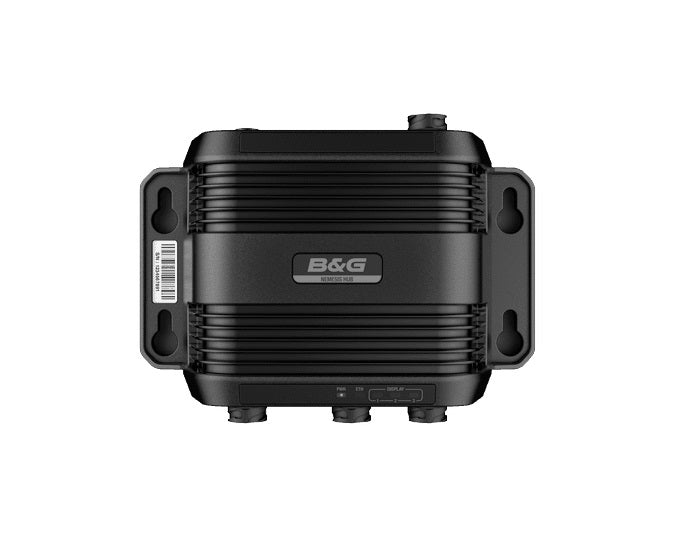

B&G Nemesis Hub

The B&G Nemesis™ Hub is a great solution for easily connecting up to 3 Nemesis™ displays. It's ideal when the displays are installed close to each other, like on the mast or at the helm. You only need one simple interconnect cable (0.6m long, 1 included) per display. There are options for main Power/Ethernet cables from 5m to 30m. With a single Power/Ethernet cable run, it allows for a compact and straightforward connection of the displays at key locations. Specifications include a storage temperature of -15°C to +55°C (-5°F to 131°F), an operating temperature of -20°C to +60°C (-4°F to 140°F), and a waterproof rating of IPX 6 and 7. It runs on 12/24 V DC power, with a power consumption of 2W plus a max of 60W distributed to connected displays. It weighs 240g (0.44 lbs). It has 1x 8 - pin Ethernet/Power connector, 3x 8 - pin Ethernet connectors for displays, and 1x M4 Grounding. In the box, you'll find the Nemesis Hub and a Nemesis™ Hub Power/Ethernet Interconnect Cable.

Using the B&G Nemesis Hub is easy. First, decide where you want to install it, like on the mast or at the helm. Make sure the displays are close to each other. Connect each display to the hub using the provided interconnect cable. Then, choose the right length of the main Power/Ethernet cable from the 5m to 30m options and connect it to the hub. Power it up with 12/24 V DC. When it comes to storage, keep it in a place where the temperature is between -15°C and +55°C. During operation, make sure the temperature is between -20°C and +60°C. Since it has a good waterproof rating, it can handle some water exposure, but don't submerge it for a long time. Check the fuse regularly to make sure it's in good condition. If you're not using it for a long time, store it in a dry place.
