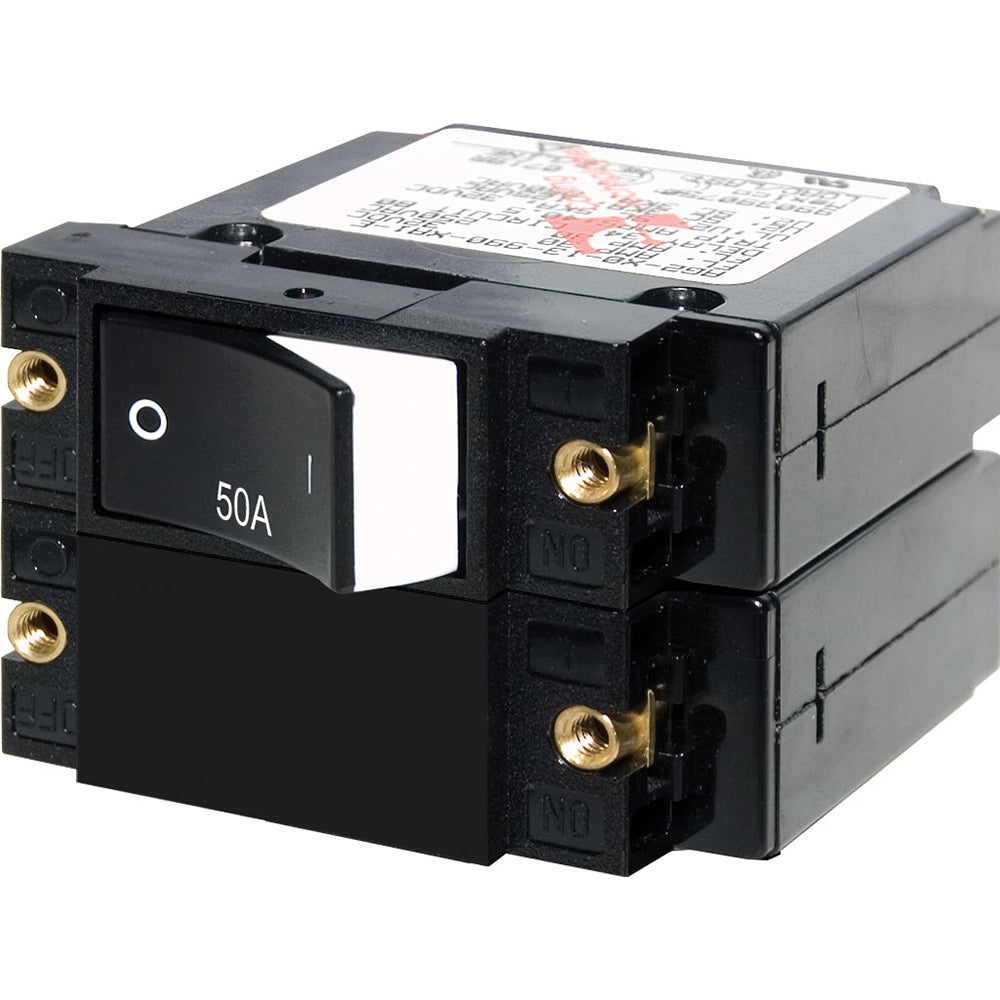

Blue Sea 7577 A-Series Raised Rocker Circuit Breaker - Double Pole - 50A [7577]

The Blue Sea 7577 A-Series Raised Rocker Circuit Breaker is a double pole breaker with a 50A rating. It comes with a color actuator that clearly shows the 'OFF' position. The 'Trip Free' design ensures safety, as it can't be held 'ON' during a fault current. It has international ON/OFF symbols, allowing for vertical or horizontal mounting. With an amperage of 50A for both AC and DC, an actuator style of raised rocker, and 2 poles, it's a reliable choice. The maximum voltage is 120V AC / 240V AC / 32V DC. It features a magnetic hydraulic - trip free circuit breaker type. The interrupt capacity is 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC. It can operate from -40° C to 85° C. The mounting screw is #6 - 32 stainless steel with a torque of 6 in - lb (0.68 Nm), and the screw terminal torque is 14 in - lb (1.58 Nm). It has 10000 switching cycles, a terminal screw of #10 - 32 stainless steel, and weighs 0.38lb (0.17 kg). The box dimensions are 2'H x 3'W x 5'L and it weighs 0.35 lbs. UPC: 632085075774. WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Using this Blue Sea circuit breaker is easy. First, make sure to mount it in a suitable place according to the international ON/OFF symbols, either vertically or horizontally. Connect the wires to the terminal screws, and tighten them with the recommended torque of 14 in - lb (1.58 Nm). The mounting screws should be tightened to 6 in - lb (0.68 Nm). When the breaker trips, the color actuator will show the 'OFF' position, and you can reset it after fixing the fault. Note that this product contains chemicals that may cause harm as per California regulations. Keep it away from extreme temperatures outside the -40° C to 85° C range. For maintenance, check the connections periodically and make sure the breaker is clean. If you notice any signs of damage, replace it immediately.
