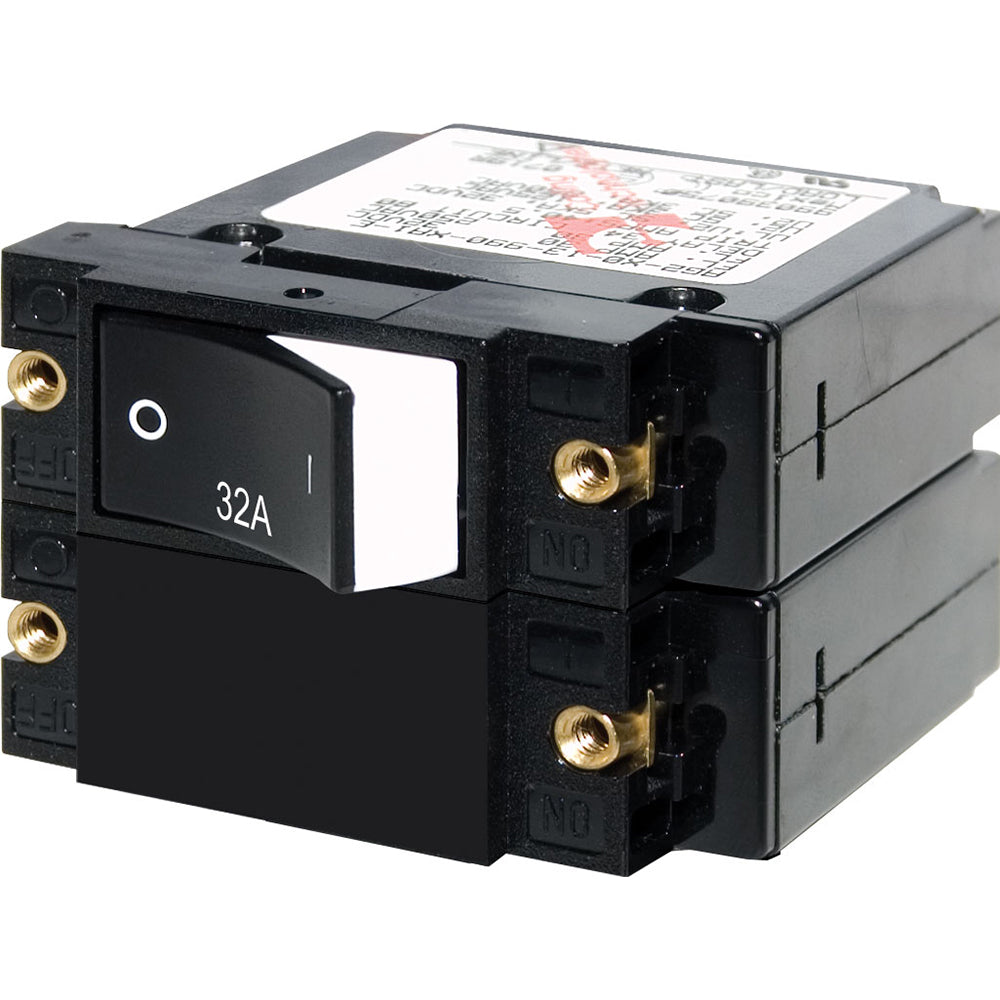

Blue Sea 7575 A-Series Raised Rocker Circuit Breaker - Double Pole - 32A [7575]

Blue Sea A-Series 32A Double Pole Raised Rocker Circuit Breaker - A Great Choice!

Key Features:

• The color actuator clearly shows the 'OFF' position, ensuring easy operation.

• Its 'Trip Free' design prevents it from staying 'ON' during a fault current, enhancing safety.

• With international ON/OFF symbols, it can be mounted vertically or horizontally for flexible installation.

Specifications:

• Amperage: 32A AC / 32A DC

• Actuator Style: Raised Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6 - 32 Stainless Steel

• Mounting Screw Torque: 6 in - lb (0.68 Nm)

• Screw Terminal Torque: 14 in - lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10 - 32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

More Details:

• Amperage: 32a
• Box Dimensions: 2'H x 3'W x 5'L WT: 0.35 lbs
• UPC: 632085075750

Using this Blue Sea A - Series circuit breaker is easy. First, make sure to install it in a location where the temperature is between - 40°C and 85°C. You can mount it either vertically or horizontally according to your needs, thanks to the international ON/OFF symbols. When operating, just look at the color actuator to see if it's in the 'OFF' position. During a fault current, the 'Trip Free' design will automatically turn it off to protect your circuit. For maintenance, regularly check the mounting screws and terminal screws to ensure they are tightened to the specified torque (6 in - lb for mounting screws and 14 in - lb for terminal screws). Also, be aware that this product can expose you to certain harmful chemicals, so follow the warning information provided. If you have any questions, don't hesitate to seek professional help.
